installation

2.

2.1. Installation on basic electronics 20-0014

Please note that electronics installations are carried out with the device unplugged.
To install the present add-on, please follow the steps as shown:
www.behnke-online.com
Instructions Electronic Add-On Voice / Display / Real Time Clock
First remove the cover of your Behnke door
intercom. Disable the device's power supply
(unplug the power supply unit) and disconnect
the telephone line.

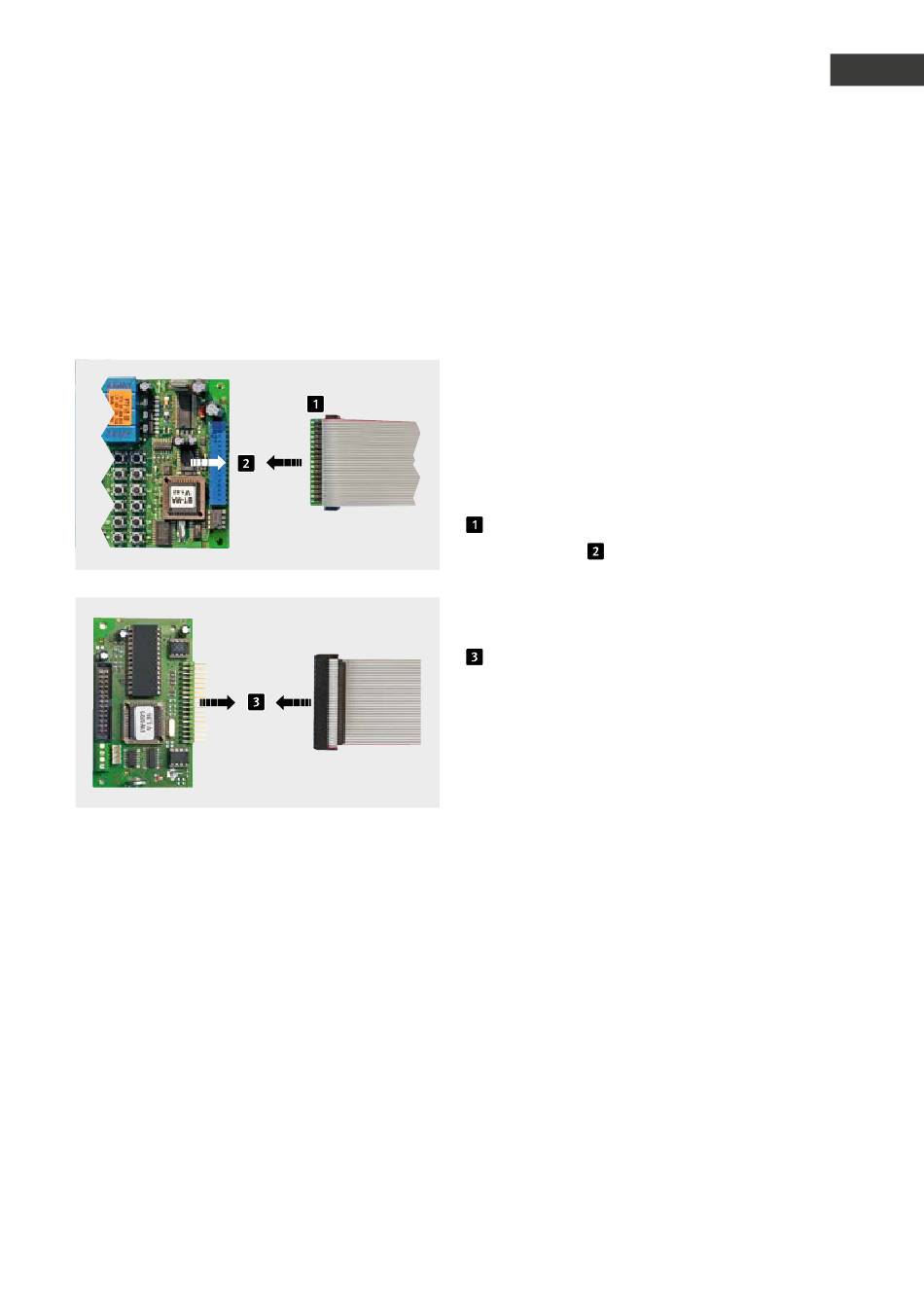

Connect the ribbon cable delivered to the
adapter board.
basic electronics. Please note: The ribbon
cable's red mark points away from the confi-
gurations key pad as shown in the picture.
Now connect the ribbon cable's loose end
to the pin header on the Electronics Add-On
Voice / Display / Real Time Clock. Please note:
The ribbon cable's red mark points towards
the battery for the Real Time Clock as shown
in the picture.
Now connect the a/b telephone line as well as
the power supply 12 V - 15 V=.
Installation
Connect the adapter to the
