3-3-2. Connecting the refrigerant tubing to the U-10MES2E8 outdoor unit

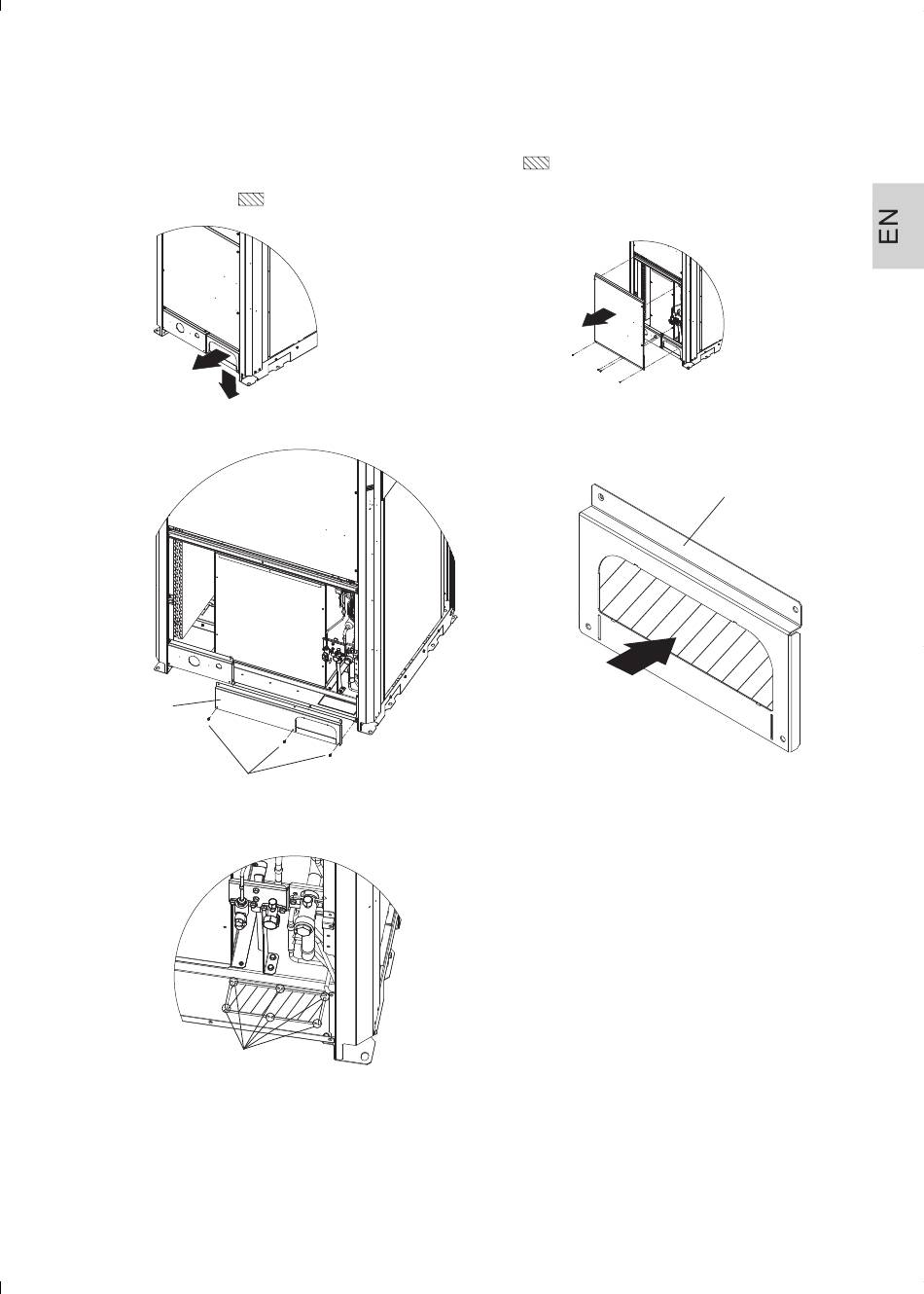

1. The tubing can be routed out either from the front or from the bottom. The connecting valve is contained
inside the unit. Therefore, remove the front panel as shown in Fig. 18.
(1) If the tubing is routed out from the front, cut out the slit part (
(2) If the tubing is routed out from the bottom, use cutting pliers or a similar tool to cut out the tubing outlet slit
(part indicated by ) from the tubing cover.
Front
Bottom
Tubing cover
Remove 3 screws.
If the tubing is routed out from the
bottom, use cutting pliers or a similar
tool to cut out the shaded area.
).
Remove 8 panel screws
from front panel.
Cut out the shaded area in
the direction of the arrow.
Fig. 18
EN - 19
Tubing cover
