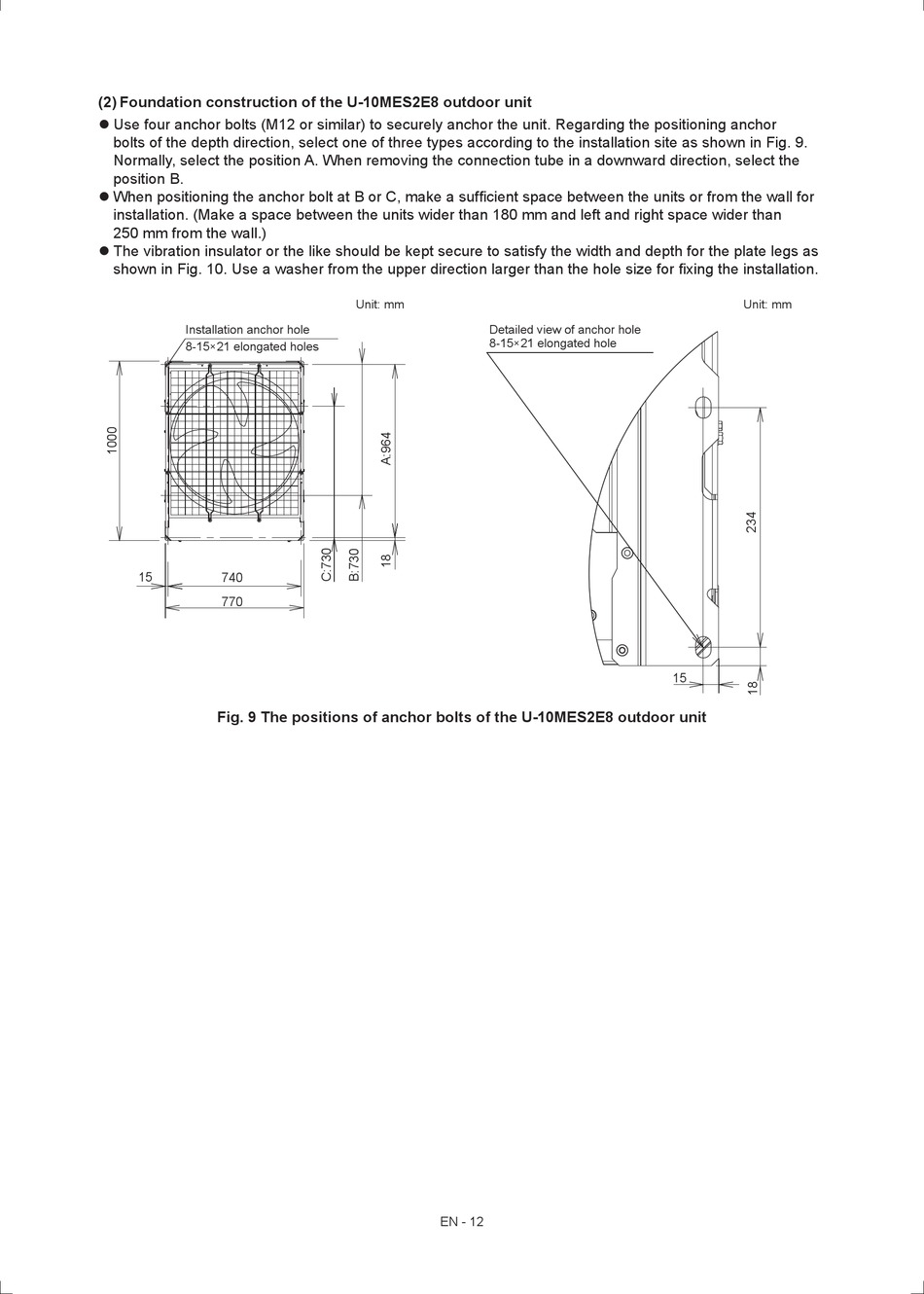

(2) Foundation construction of the U-10MES2E8 outdoor unit
 Use four anchor bolts (M12 or similar) to securely anchor the unit. Regarding the positioning anchor
bolts of the depth direction, select one of three types according to the installation site as shown in Fig. 9.
Normally, select the position A. When removing the connection tube in a downward direction, select the
position B.
 When positioning the anchor bolt at B or C, make a sufficient space between the units or from the wall for
installation. (Make a space between the units wider than 180 mm and left and right space wider than
250 mm from the wall.)
 The vibration insulator or the like should be kept secure to satisfy the width and depth for the plate legs as
shown in Fig. 10. Use a washer from the upper direction larger than the hole size for fixing the installation.
Installation anchor hole
8-15×21 elongated holes
15
740
770
Fig. 9 The positions of anchor bolts of the U-10MES2E8 outdoor unit
1150
15
1180
15
740
770
Unit: mm
Detailed view of anchor hole
8-15×21 elongated hole
EN - 12
15
Unit: mm
15
