Foundation
Vibration-resistant mat

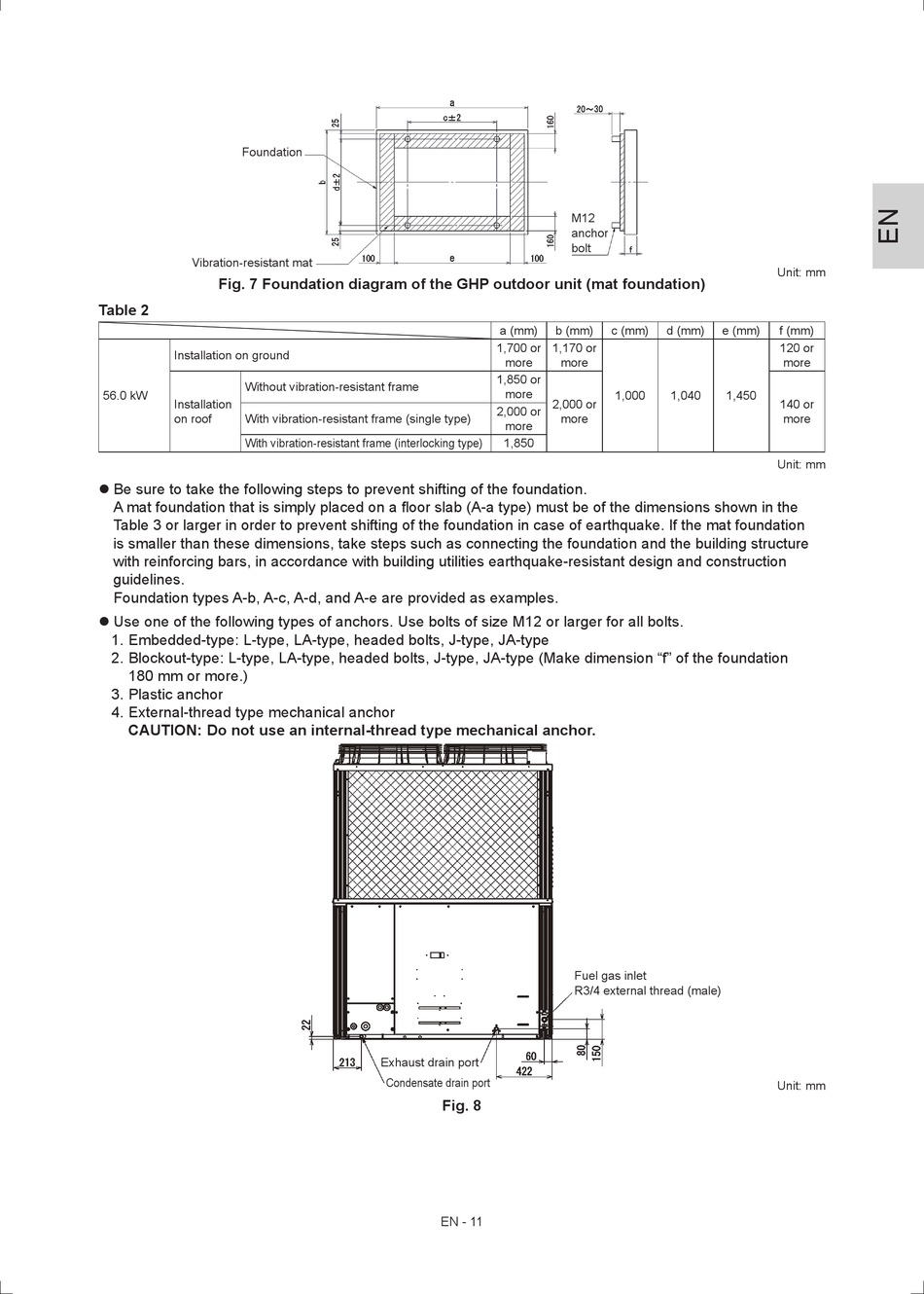

Fig. 7 Foundation diagram of the GHP outdoor unit (mat foundation)
Table 2
Installation on ground
Without vibration-resistant frame
56.0 kW
Installation
on roof With vibration-resistant frame (single type)
With vibration-resistant frame (interlocking type)
 Be sure to take the following steps to prevent shifting of the foundation.
A mat foundation that is simply placed on a floor slab (A-a type) must be of the dimensions shown in the
Table 3 or larger in order to prevent shifting of the foundation in case of earthquake. If the mat foundation
is smaller than these dimensions, take steps such as connecting the foundation and the building structure
with reinforcing bars, in accordance with building utilities earthquake-resistant design and construction
guidelines.
Foundation types A-b, A-c, A-d, and A-e are provided as examples.
 Use one of the following types of anchors. Use bolts of size M12 or larger for all bolts.
1. Embedded-type: L-type, LA-type, headed bolts, J-type, JA-type
2. Blockout-type: L-type, LA-type, headed bolts, J-type, JA-type (Make dimension "f" of the foundation
180 mm or more.)
3. Plastic anchor
4. External-thread type mechanical anchor
CAUTION: Do not use an internal-thread type mechanical anchor.
a (mm)
1,700 or 1,170 or
more
1,850 or
more
2,000 or
2,000 or
more
1,850
Exhaust drain port
Condensate drain port
Fig. 8
EN - 11
M12
anchor
bolt
b (mm) c (mm) d (mm) e (mm)
more
1,000 1,040 1,450
more
Fuel gas inlet
R3/4 external thread (male)
Unit: mm
f (mm)
120 or
more
140 or
more
Unit: mm
Unit: mm
