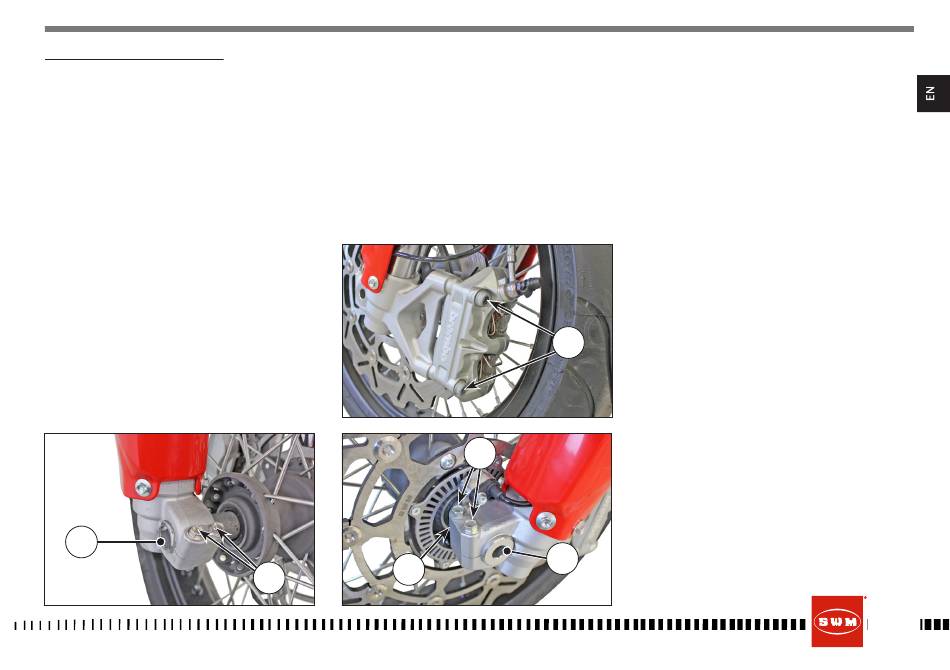

REASSEMBLING THE FRONT WHEEL
Fit the L.H. spacer (D) on the wheel hub.
Fit the wheel between the fork legs.
Fit the wheel axle (1) from the R.H. side, after greas-
ing it and push it fully home against the L.H. fork leg;
during this operation, the wheel should be turned.
Tighten the screw (2) on the fork L.H. side but DO
NOT lock it.
1
Now, pump for a while, pushing the handlebar
downwards until you are sure that the fork legs are
perfectly aligned. Lock: the screws (3) on the R.H. leg
(7.67 ft-lb), the screw (2) on the L.H. side (37.95 ft-lb),
the screws (3) on the L.H. leg (7.67 ft-lb).
D
3
Fit the brake calliper on the disc; assemble the cal-
liper on its mounting plate and tighten the two
screws (4) at 25.5 Nm/ 2.6 Kgm/ 18.8 ft-lb. Ensure
that the brake disc slides between the calliper pads
without any friction or hard spots.
Note*: After reassembly, pull the brake control le-
ver until the pads are against the brake disc.
