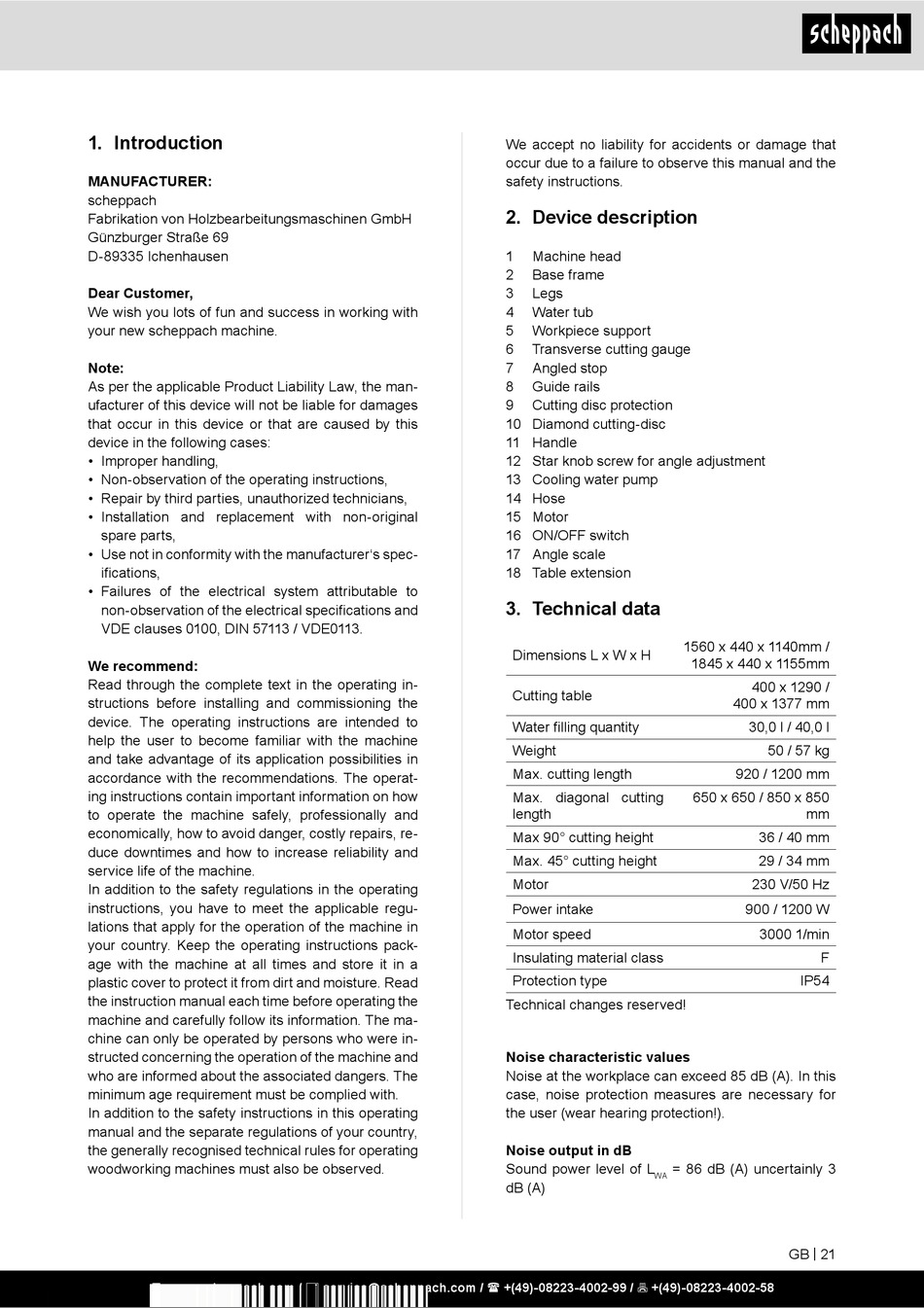

1. Introduction

MANUFACTURER:
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear Customer,
We wish you lots of fun and success in working with
your new scheppach machine.
Note:
As per the applicable Product Liability Law, the man-
ufacturer of this device will not be liable for damages
that occur in this device or that are caused by this
device in the following cases:
• Improper handling,
• Non-observation of the operating instructions,
• Repair by third parties, unauthorized technicians,
• Installation and replacement with non-original
spare parts,
• Use not in conformity with the manufacturer's spec-
ifications,
• Failures of the electrical system attributable to
non-observation of the electrical specifications and
VDE clauses 0100, DIN 57113 / VDE0113.
We recommend:
Read through the complete text in the operating in-
structions before installing and commissioning the
device. The operating instructions are intended to
help the user to become familiar with the machine
and take advantage of its application possibilities in
accordance with the recommendations. The operat-
ing instructions contain important information on how
to operate the machine safely, professionally and
economically, how to avoid danger, costly repairs, re-
duce downtimes and how to increase reliability and
service life of the machine.
In addition to the safety regulations in the operating
instructions, you have to meet the applicable regu-
lations that apply for the operation of the machine in
your country. Keep the operating instructions pack-
age with the machine at all times and store it in a
plastic cover to protect it from dirt and moisture. Read
the instruction manual each time before operating the
machine and carefully follow its information. The ma-
chine can only be operated by persons who were in-
structed concerning the operation of the machine and
who are informed about the associated dangers. The
minimum age requirement must be complied with.
In addition to the safety instructions in this operating
manual and the separate regulations of your country,
the generally recognised technical rules for operating
woodworking machines must also be observed.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
We accept no liability for accidents or damage that
occur due to a failure to observe this manual and the
safety instructions.

2. Device description

1 Machine head
2 Base frame
3 Legs
4 Water tub
5 Workpiece support
6 Transverse cutting gauge
7 Angled stop
8 Guide rails
9 Cutting disc protection
10 Diamond cutting-disc
11 Handle
12 Star knob screw for angle adjustment
13 Cooling water pump
14 Hose
15 Motor
16 ON/OFF switch
17 Angle scale
18 Table extension

3. Technical data

Dimensions L x W x H
Cutting table
Water filling quantity
Weight
Max. cutting length
Max. diagonal cutting
length
Max 90° cutting height
Max. 45° cutting height
Motor
Power intake
Motor speed
Insulating material class
Protection type
Technical changes reserved!
Noise characteristic values
Noise at the workplace can exceed 85 dB (A). In this
case, noise protection measures are necessary for
the user (wear hearing protection!).
Noise output in dB
Sound power level of L = 86 dB (A) uncertainly 3
WA
dB (A)
1560 x 440 x 1140mm /
1845 x 440 x 1155mm
400 x 1290 /
400 x 1377 mm
30,0 l / 40,0 l
50 / 57 kg
920 / 1200 mm
650 x 650 / 850 x 850
mm
36 / 40 mm
29 / 34 mm
230 V/50 Hz
900 / 1200 W
3000 1/min
F
IP54
