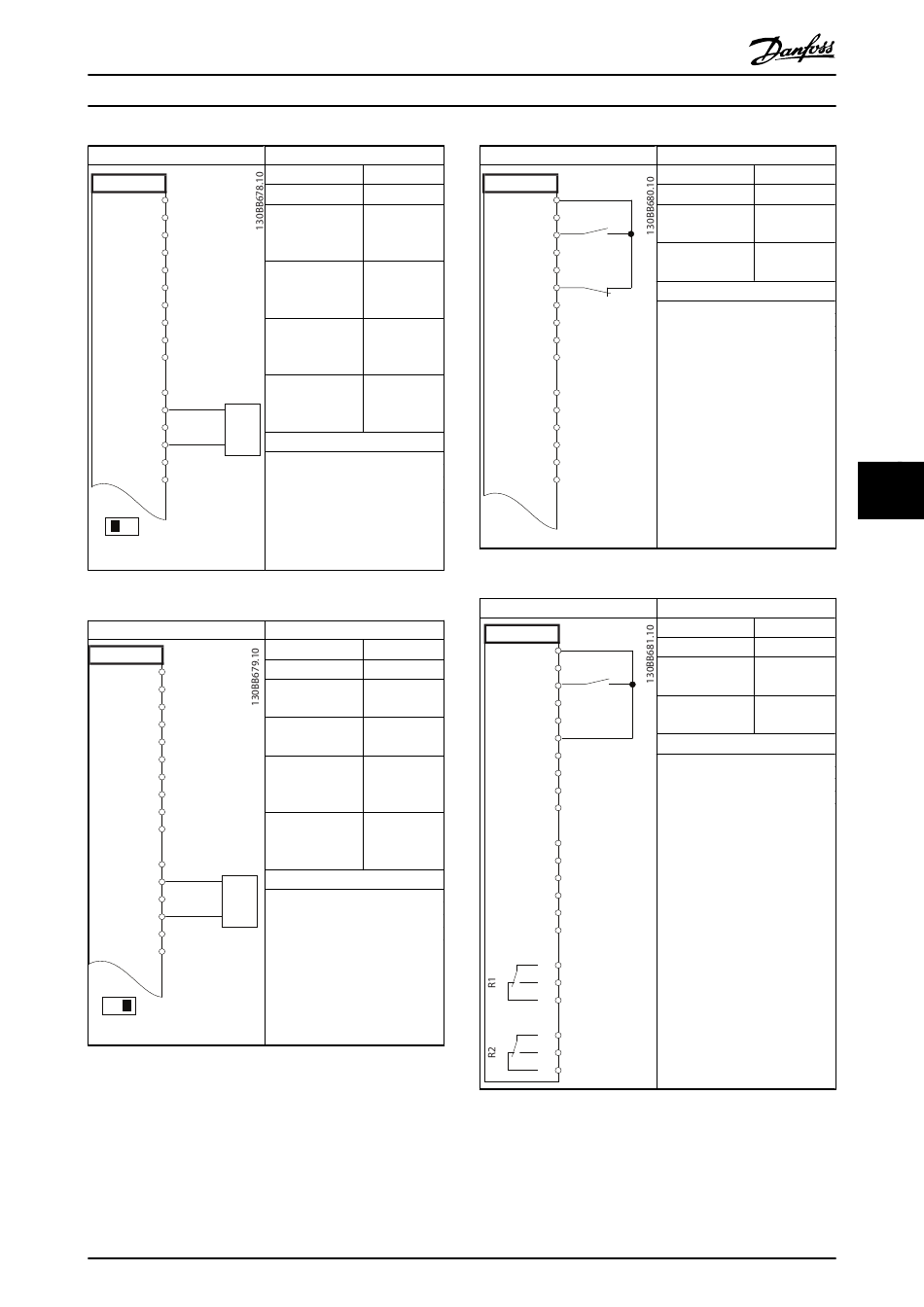

Danfoss VLT HVAC FC-102 Produkthandbuch Seite 54

Anwendungseinrichtungsbeisp...
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
+
A IN
53
A IN
54
COM
55
-
A OUT
42
0 - 10V
COM
39
U - I
A53
Tabelle 6.4 Analog Speed Reference (Voltage)
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
+
A IN
53
A IN
54
COM
55
-
A OUT
42
4 - 20mA
COM
39
U - I
A53
Tabelle 6.5 Analog Speed Reference (Current)
Produkthandbuch für VLT
Parameters
Function Setting
6-10 Klemme 53
Skal.
Min.Spannung 0.07V*
6-11 Klemme 53 10V*
Skal.
Max.Spannung
6-14 Klemme 53 0*
Skal. Min.-Soll/
Istwert
6-15 Klemme 53 50*
Skal. Max.-Soll/
Istwert
* = Default Value
Notes/comments:
Parameters
Function Setting
6-12 Klemme 53 4mA*
Skal. Min.Strom
6-13 Klemme 53 20mA*
Skal. Max.Strom
6-14 Klemme 53 0*
Skal. Min.-Soll/
Istwert
6-15 Klemme 53 50*
Skal. Max.-Soll/
Istwert
* = Default Value
Notes/comments:
®
MG.11.AE.03 - VLT ist eine eingetragene Marke von Danfoss.
®
HVAC Drive
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Tabelle 6.6 Run/Stop Command with External Interlock
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
06
Tabelle 6.7 Run/Stop Command without External Interlock
Parameters
Function Setting
5-10 Klemme 18 [8] Start*
Digitaleingang
5-12 Klemme 27 [7] External
Digitaleingang Interlock
* = Default Value
Notes/comments:
Parameters
Function Setting
5-10 Klemme 18 [8] Start*
Digitaleingang
5-12 Klemme 27 [7] External
Digitaleingang Interlock
* = Default Value
Notes/comments:
If 5-12 Klemme 27 Digitaleingang
is set to [0] No operation, a
jumper wire to terminal 27 is not
needed.
