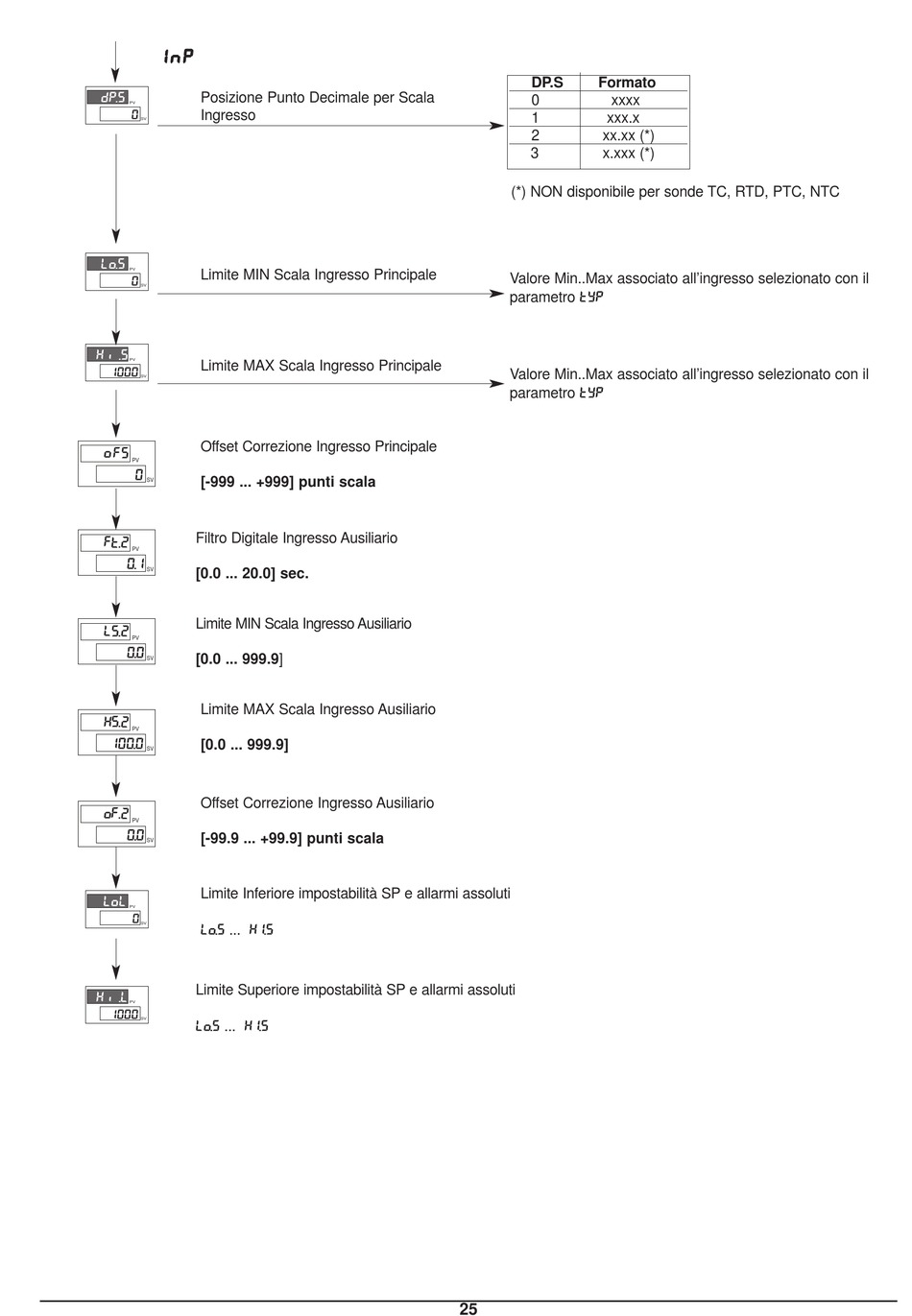

I I n n P P
dP. S
Posizione Punto Decimale per Scala
PV
Ingresso
0
SV
Lo. S
PV
Limite MIN Scala Ingresso Principale
0
SV
Ki . S
PV
Limite MAX Scala Ingresso Principale
1000
SV
Offset Correzione Ingresso Principale
o
F
S
PV
0
[-999 ... +999] punti scala
SV
Filtro Digitale Ingresso Ausiliario
F
t.
2
PV
0. 1
SV
[0.0 ... 20.0] sec.
Limite MIN Scala Ingresso Ausiliario
L
S.
2
PV
0. 0
[0.0 ... 999.9]
SV
Limite MAX Scala Ingresso Ausiliario
K
S.
2
PV
100. 0
[0.0 ... 999.9]
SV
Offset Correzione Ingresso Ausiliario
o
F.
2
PV
0. 0
[-99.9 ... +99.9] punti scala
SV
Limite Inferiore impostabilità SP e allarmi assoluti
LoL
PV
0
SV
LO. S ... KI. S
Limite Superiore impostabilità SP e allarmi assoluti
Ki . L
PV
1000
SV
LO. S ... KI. S
DP.S
Formato
0
xxxx
1
xxx.x
2
xx.xx (*)
3
x.xxx (*)
(*) NON disponibile per sonde TC, RTD, PTC, NTC
Valore Min..Max associato all'ingresso selezionato con il
parametro TYP
Valore Min..Max associato all'ingresso selezionato con il
parametro TYP
25
