e) Installation of the tail rotor control

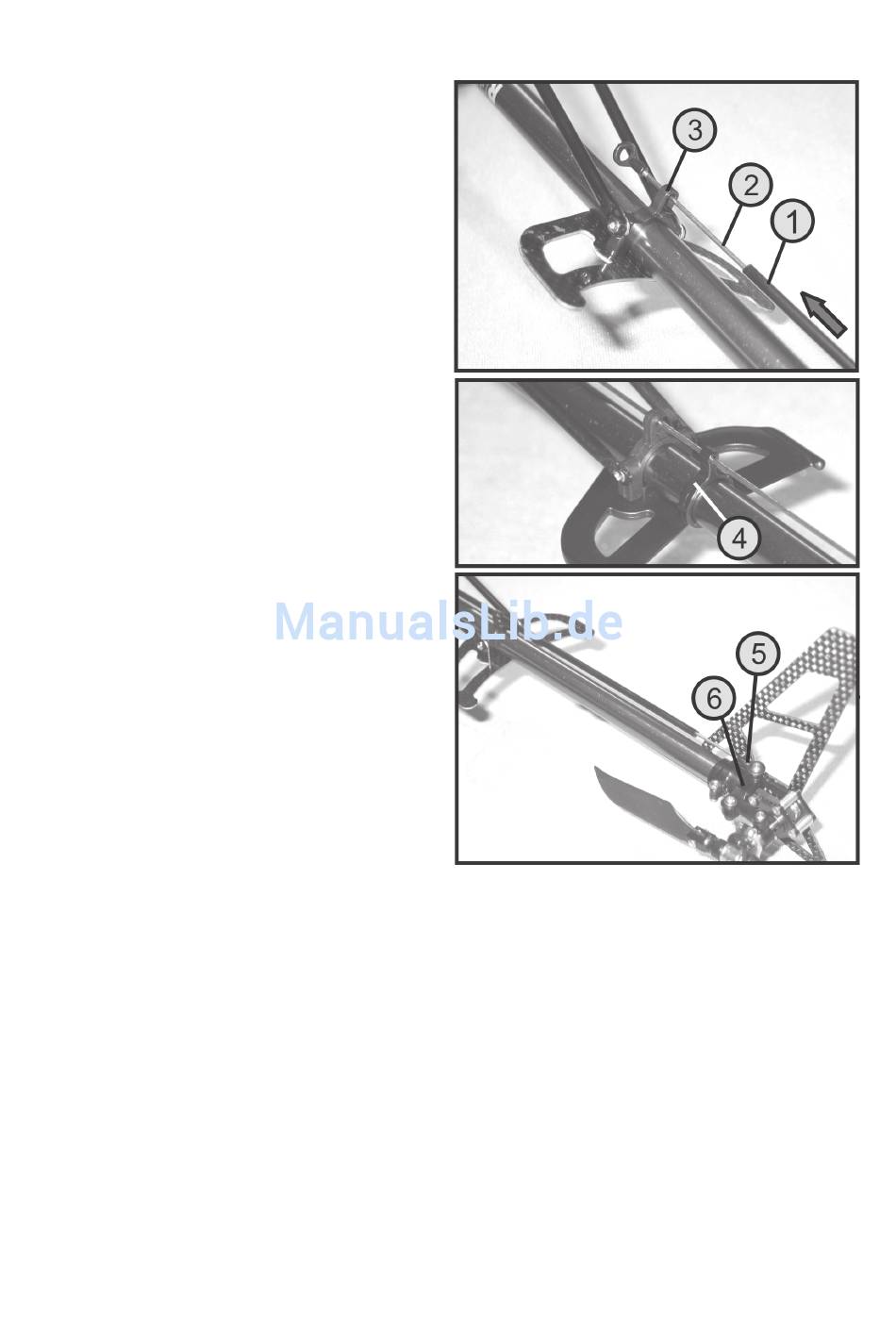

Slide the Bowden pull cover (1) of the tail rotor control
back to the rear joint socket.
Then suspend the Bowden pull wire (2), which protrudes
in the front from the sleeve, in the loop on the elevator
unit carrier (3).
Then slide the Bowden pull cover from the back to the
front.
With the helicopter REX-X, the tail rotor is controlled with
an already installed wire without additional cover. A
matching support is mounted on the tailpipe for this
purpose (4), which must be positioned directly behind the
elevator unit.
Important!
Make sure that the control wire runs absolutely
straight.
Snap the joint socket (5) onto the joint ball of the tail rotor
control lever (6) and align the Bowden pull cover centrally.
The control wire should evenly protrude from the front and
back.
Figure 8
39
