d) Rear suspension arms

R
B8
S4 (M3x10)
B9
K1
B10
B7
L
K2

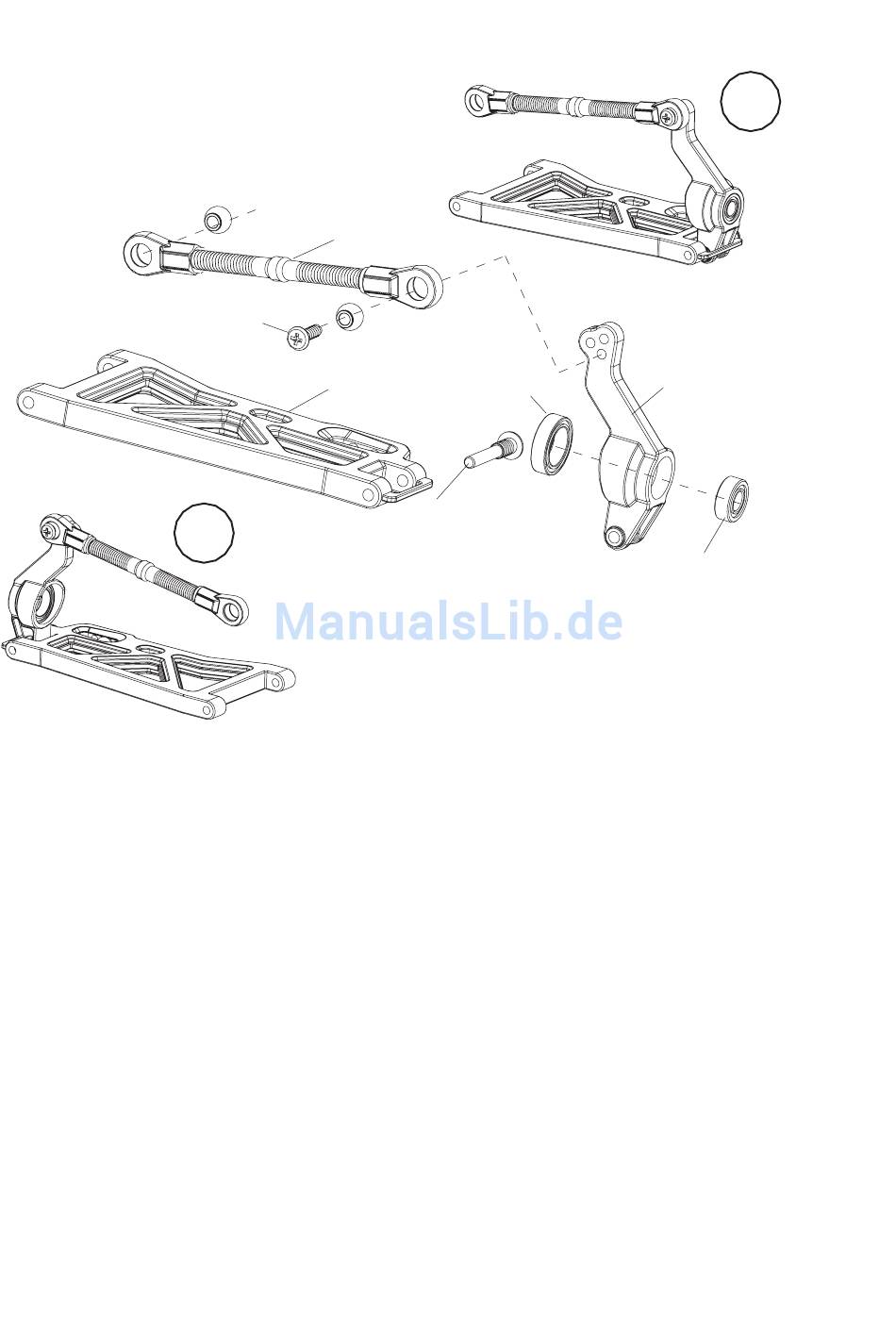

As with the front suspension arms, ensure the correct orientation of the axle stubs.
The upper suspension arm "B8" is already premounted.
The attachment of the upper suspension arms to the axle stub is carried out with M3x10mm screws.
