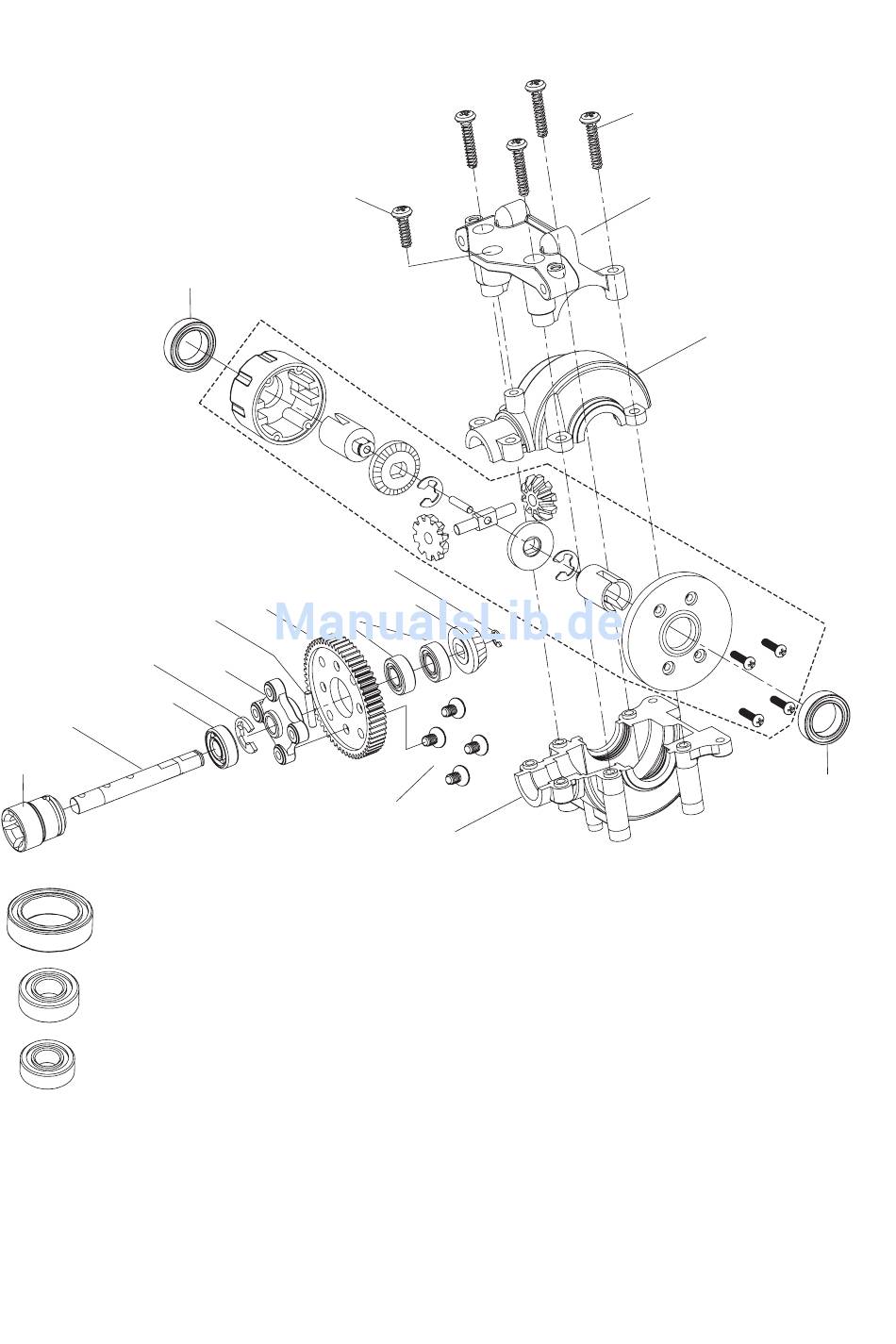

b) Rear differential
SR2
K2
AC2
A5
K1 (Ø10 x Ø15 x 4)
K2 (Ø5 x Ø11 x 4)
K3 (Ø5 x Ø10 x 4)
Take care to use the right bearings. The "K3" bearing is slightly smaller than "K2" and is placed on the side between
the securing ring "SR2" and the plastic sheath "A5".
The "A4" component is the actual bevel differential and is pre-mounted.
S1 (10mm)
K1
Z2
ST2
K3
A6
SR1
Z1
S3
A3
S2 (15mm), 4x
A1
A2
A4
K1
