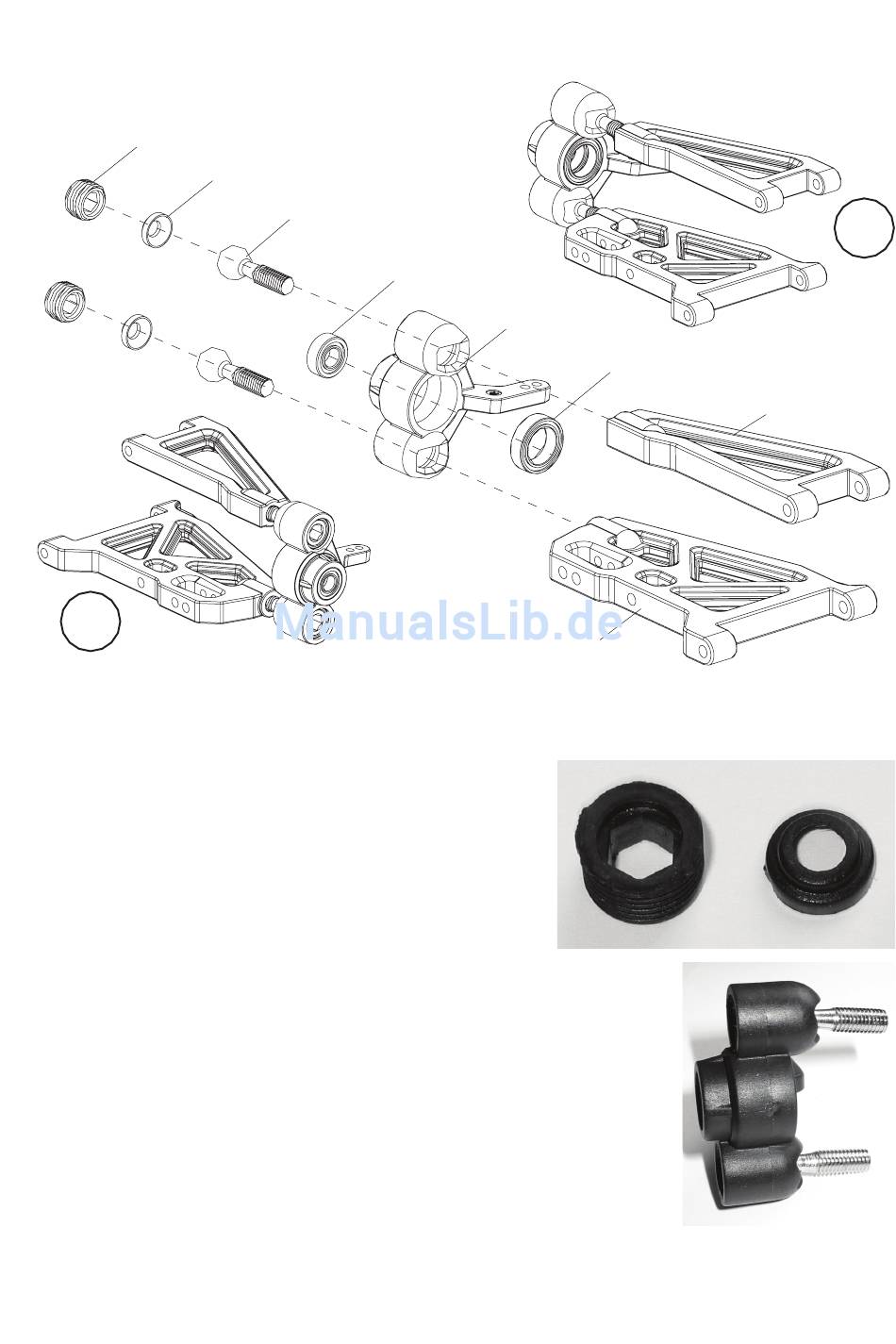

c) Front suspension arms

B6
B5
B4
R
K2
B3
K1
B2
L
B1
The two ball-head screws "B4" are inserted one into each of the axle stubs "B3". Then each is affixed using a slide
sheath "B5" and a plastic grub screw "B6".
Check that the orientation of the slide sheath "B5" is correct when
inserting it, the same applies for the grub screw "B6".
If you look at the grub screw "B6" closely you will see an opening into
which the slide sheath fits perfectly. This side of the grub screw "B6"
must point towards the slide sheath "B5"!
Tighten the grub screw "B6" carefully using an Allen key or hex key.
Do not use excessive force simply tighten it until the ball-head screw
"B4" does not waggle but is also not completely solidly fixed.
Observe the correct assignment of the axle stubs to the left and right side of the vehicle.
The figure on the right shows the right side axle stub.
The ball-head screws can be screwed into the suspension arms using a smaller Allen
key or hex key.
Turn the ball-head screws approximately 2/3 of their length into the suspension arms.
