Foundation Sketch; Foundation For Behnke Products - Telecom Behnke 5-5501 Anleitung

Instructions for Stainless Steel Vertical Column Installation
GB GB

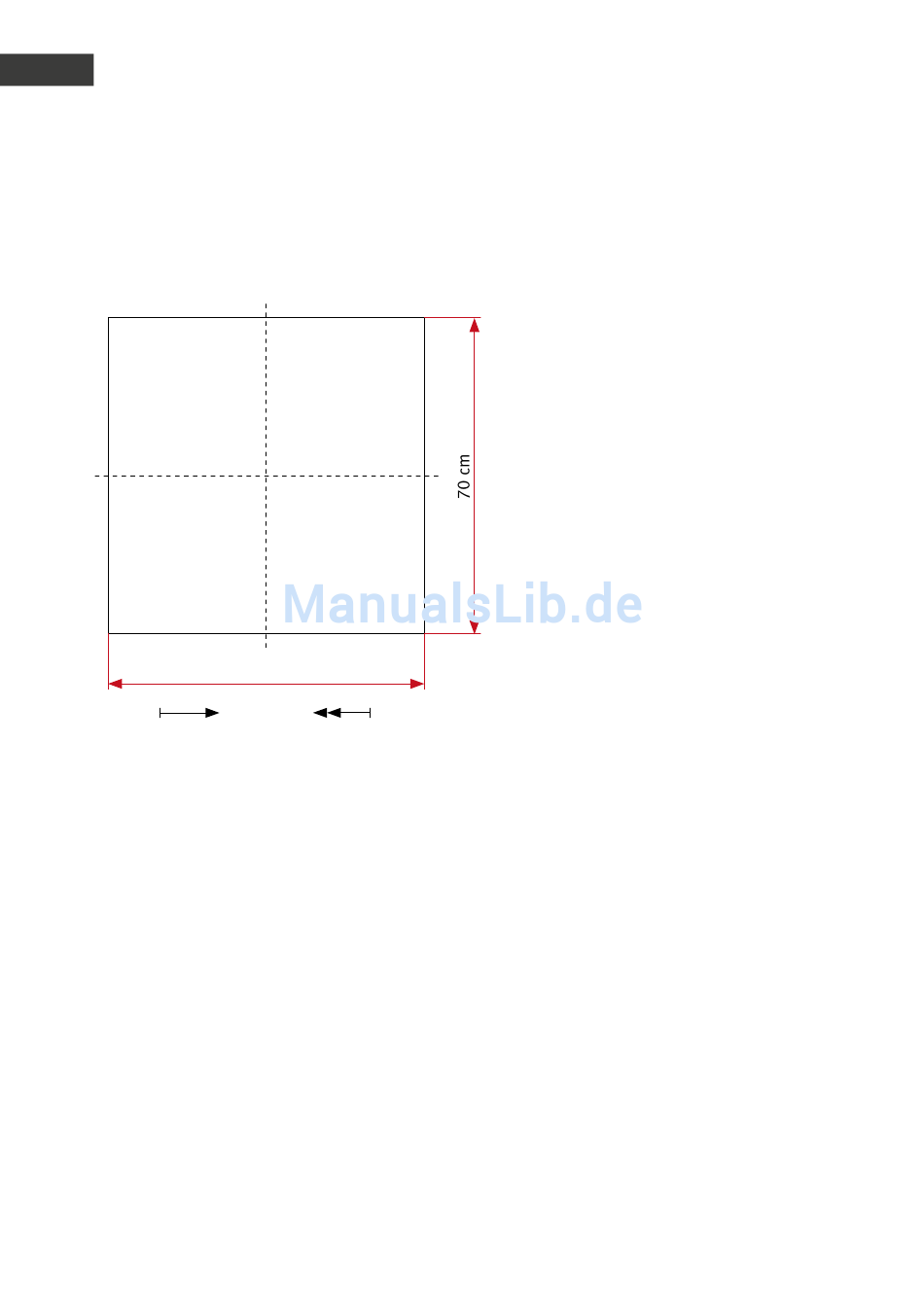

Foundation sketch

FoundAtion SKetch
1.

1.1. Foundation for Behnke Products

2
3
Hy
Dimensions
Length: by = 70 cm
Width: bz = 70 cm
Depth: d = 80 cm
Pillar connection: cy/cx = 22 / 30 cm
Covered square: 1-4 Ah = 0.00 m
Water level from top ground surface: Common water level = 99.00 m
Specific soil weight = 18.00 kN/m³
Specific soil weight (water) = 8.00 kN/m³
Angle of base friction: D = 25.00°
Angle of repose: phi = 25.00°
Cohesion: c = 0.00 kN/m²
31
70 cm
My
1
4
