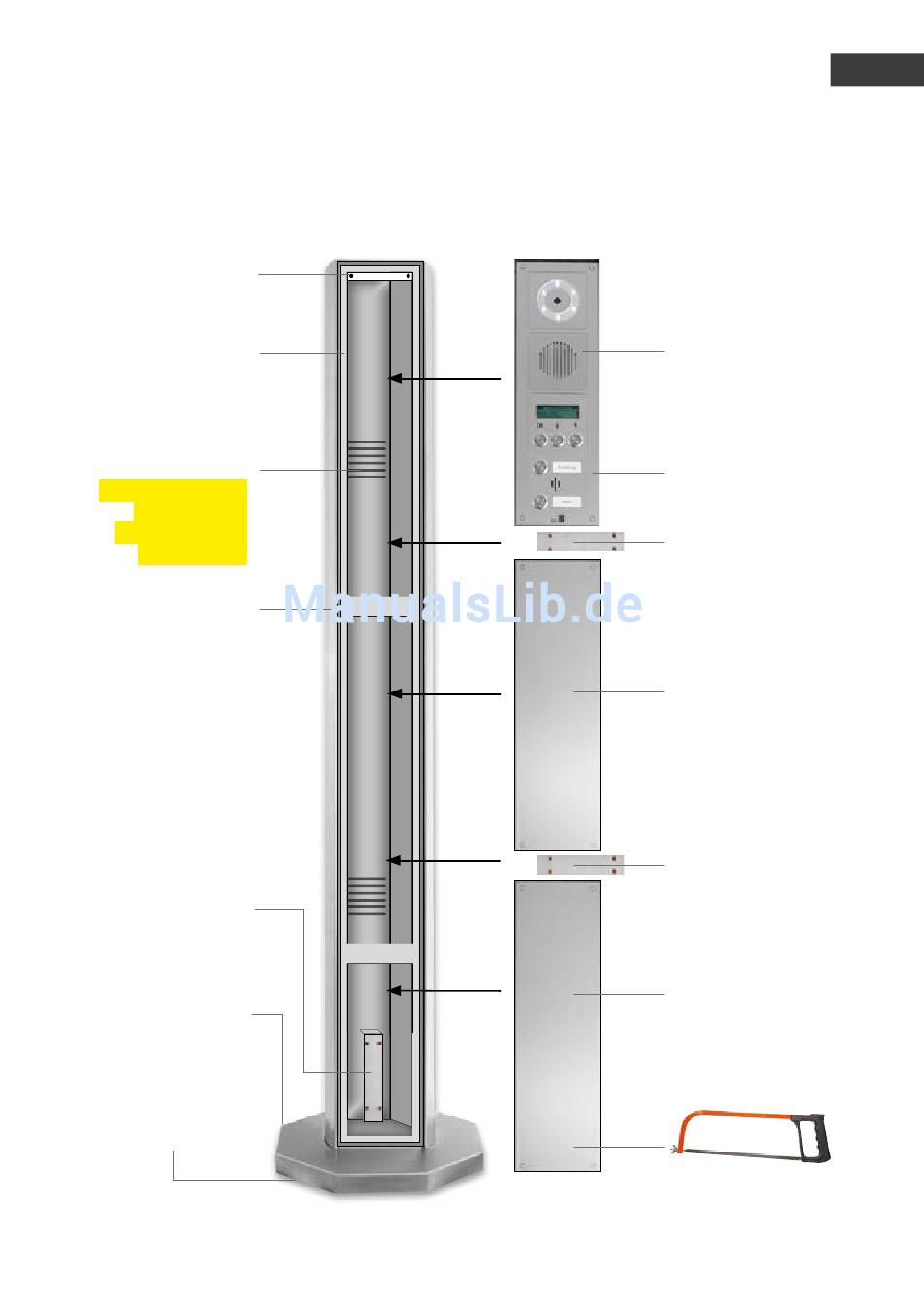

ASSembling the VeRticAl column

3.
Clamping plate 1
(firmly integrated)
Support sheet for
door intercom
devices, modules and
cover panels
Air vents
Both air vents (top/
base) must not
be closed! Risk of
condensation.
Cross bar *
The cross bar serves
to stabilise columns
with a length of more
than 2.20m (not
available on all types
of columns). The cross
bars may be removed
by a qualified person
where necessary.
Please take note of
the column material
(V2A).
Fixing sheet to attach
a tapping box (not
available on all types
of columns)
Base plate with cover
(fixed with stud bolts)
Cable inlet from below
through the column's
base
www.behnke-online.de
Instructions for Stainless Steel Vertical Column Installation
Assembling the Vertical Column
*
*
GB
Behnke door
intercom, 120 mm
broad (e.g. Series 20)
Front frame
Cover panels set 1:
Clamping plate 2
Cover panel
with chamfered top
Clamping plate 3
Cover panel without
chamfering to be short-
ened if necessary, lower
edge not visible
