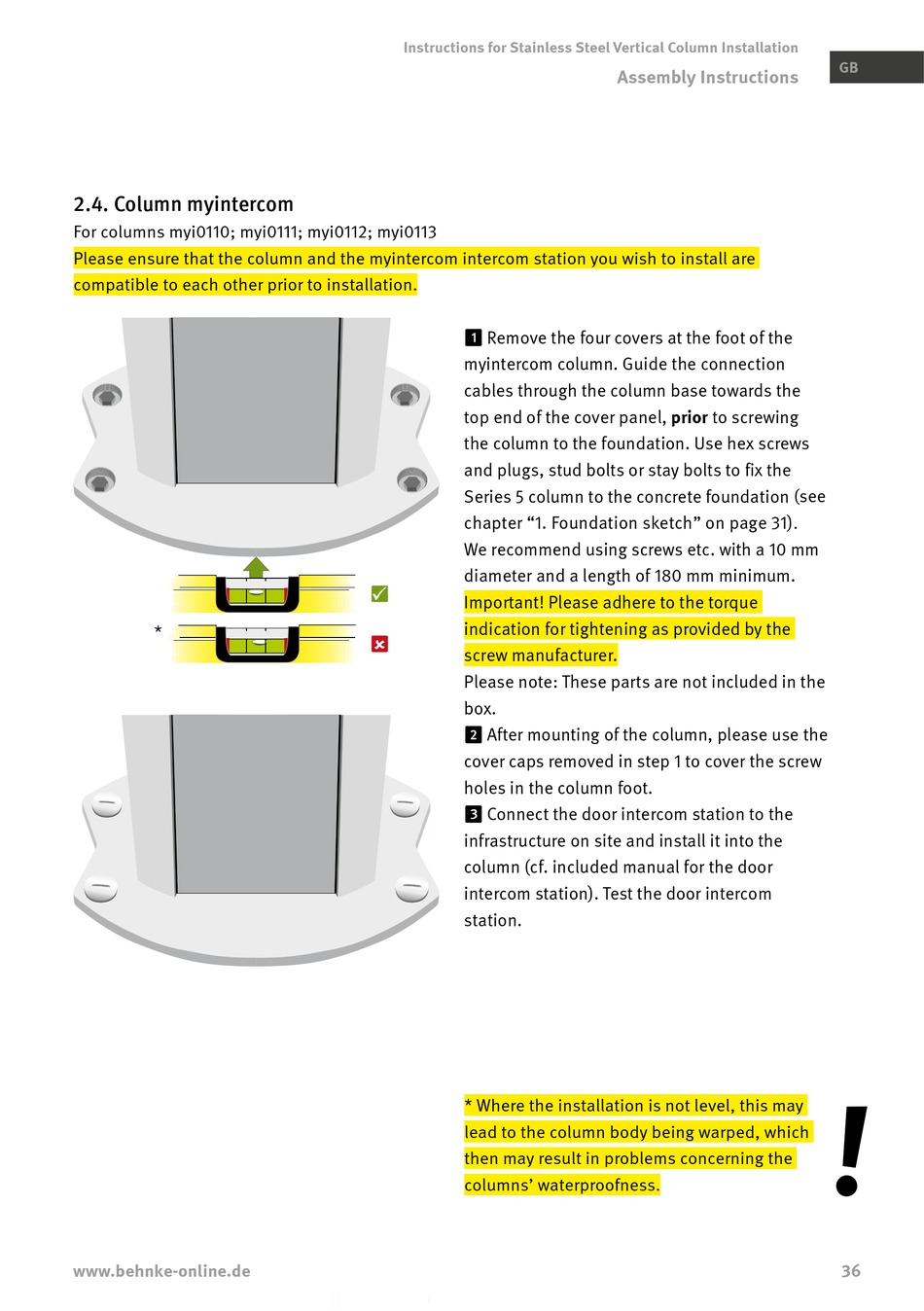

2.4. Column myintercom

For columns myi0110; myi0111; myi0112; myi0113
Please ensure that the column and the myintercom intercom station you wish to install are
compatible to each other prior to installation.
*
www.behnke-online.de
Instructions for Stainless Steel Vertical Column Installation
Remove the four covers at the foot of the
myintercom column. Guide the connection
cables through the column base towards the
top end of the cover panel, prior to screwing
the column to the foundation. Use hex screws
and plugs, stud bolts or stay bolts to fix the
Series 5 column to the concrete foundation ( see
chapter "1. Foundation sketch" on page 31) .
We recommend using screws etc. with a 10 mm
diameter and a length of 180 mm minimum.

Important! Please adhere to the torque
indication for tightening as provided by the

screw manufacturer.
Please note: These parts are not included in the
box.
After mounting of the column, please use the
cover caps removed in step 1 to cover the screw
holes in the column foot.
Connect the door intercom station to the
infrastructure on site and install it into the
column (cf. included manual for the door
intercom station). Test the door intercom
station.
* Where the installation is not level, this may
lead to the column body being warped, which
then may result in problems concerning the
columns' waterproofness.
