INSTALUNG YOUR VCR

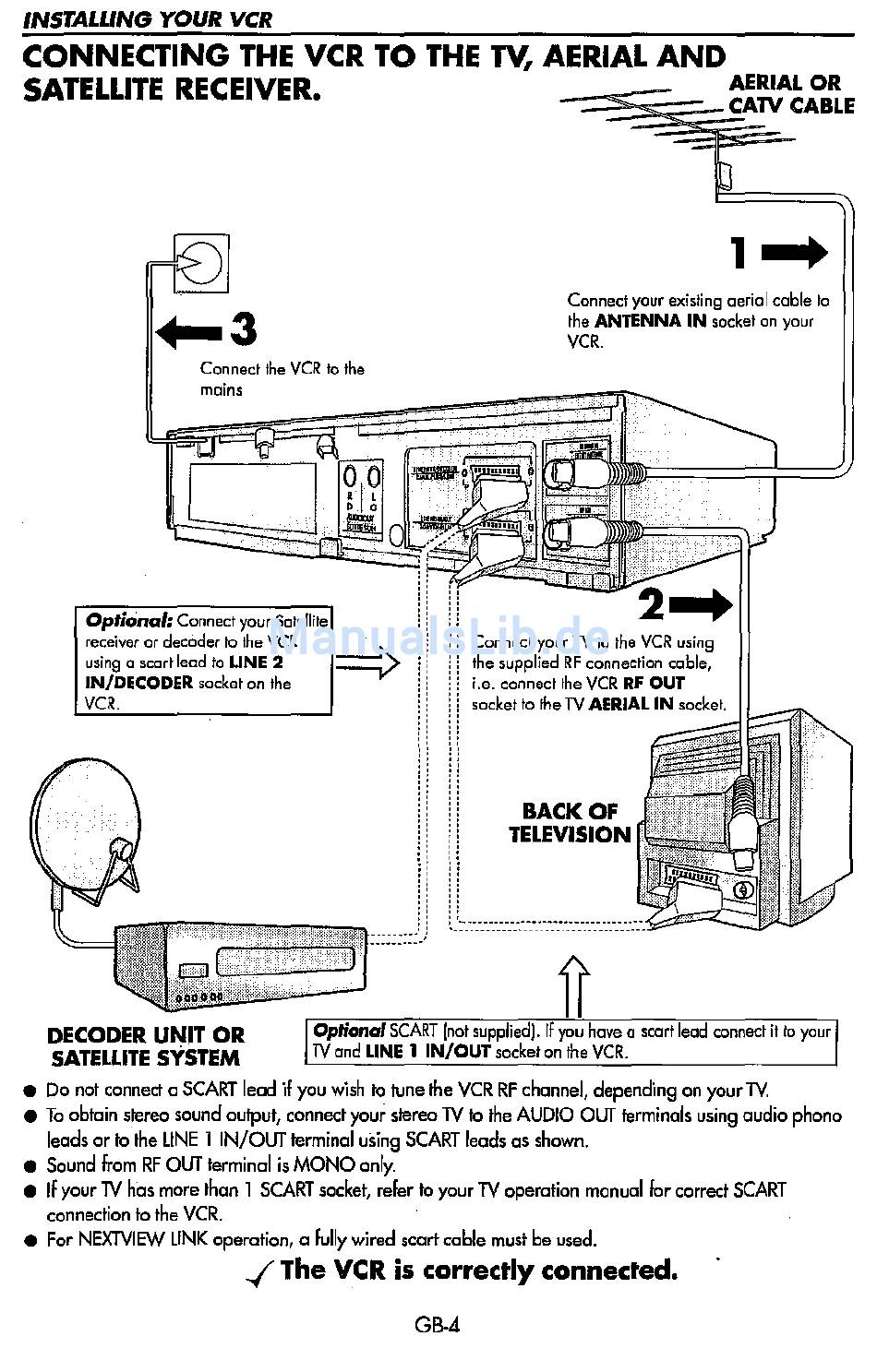

CONNECTING THE VCR TO THE
Tv,
AERIAL AND
SATELLITE RECEIVER.
~i~A~~~E
Connect your existing aerial cable to
the ANTENNA IN socket on your
VCR.
BACK OF
TELEVISION
Connect your N to the VCR using
the supplied RF connection coble,
i.e. connect the VCR RF OUT
socket to the TV AERIAL IN socket.
!,
::
!i
1]
II
'.:,:::_-:::::_--_-_---:::-:_-::::::::::::_0=:..::::::
Optional:
Connect your Satellite
receiver or decoder to the VCR
using a seart lead to LINE 2
::::::::::>
IN/DECODER socket on the
VCR.
Connect the VCR 10 the
mains
DECODER UNIT OR
SATEUITE SYSTEM
Optional SCART lnot supplied). If you have a scart lead connect it to your
TV and LINE 1 IN/OUT socket on the VCR.
• Do not connect a SeARl lecx::l"lf you wish to tune the VCR RF channel, depending on your lV.
• To obtain stereo sound output, connect your slereo TV to the AUDIO OUT terminals using audio phono
leads or to the LINE 1 IN/OUT terminal using
SeARl leads as shown.
• Sound from RF OUT terminal is MONO only.
• If your TV has more than 1 SCARl socket, refer to your TV operation manual for correct SCARl
connection to the VCR.
• for NEXTVIEW LINK operation, a fully wired scart coble must be used.
..( The VCR is correctly connected.
GB-4
