Physiomed DEEP OSCILLATION Personal Gebrauchsanweisung Seite 68

PHYSIOMED ELEKTROMEDIZIN AG
How to perform an INDIVID MANUAL treatment
(1) Choose INDIVID in the lateral menu to get to the programs:

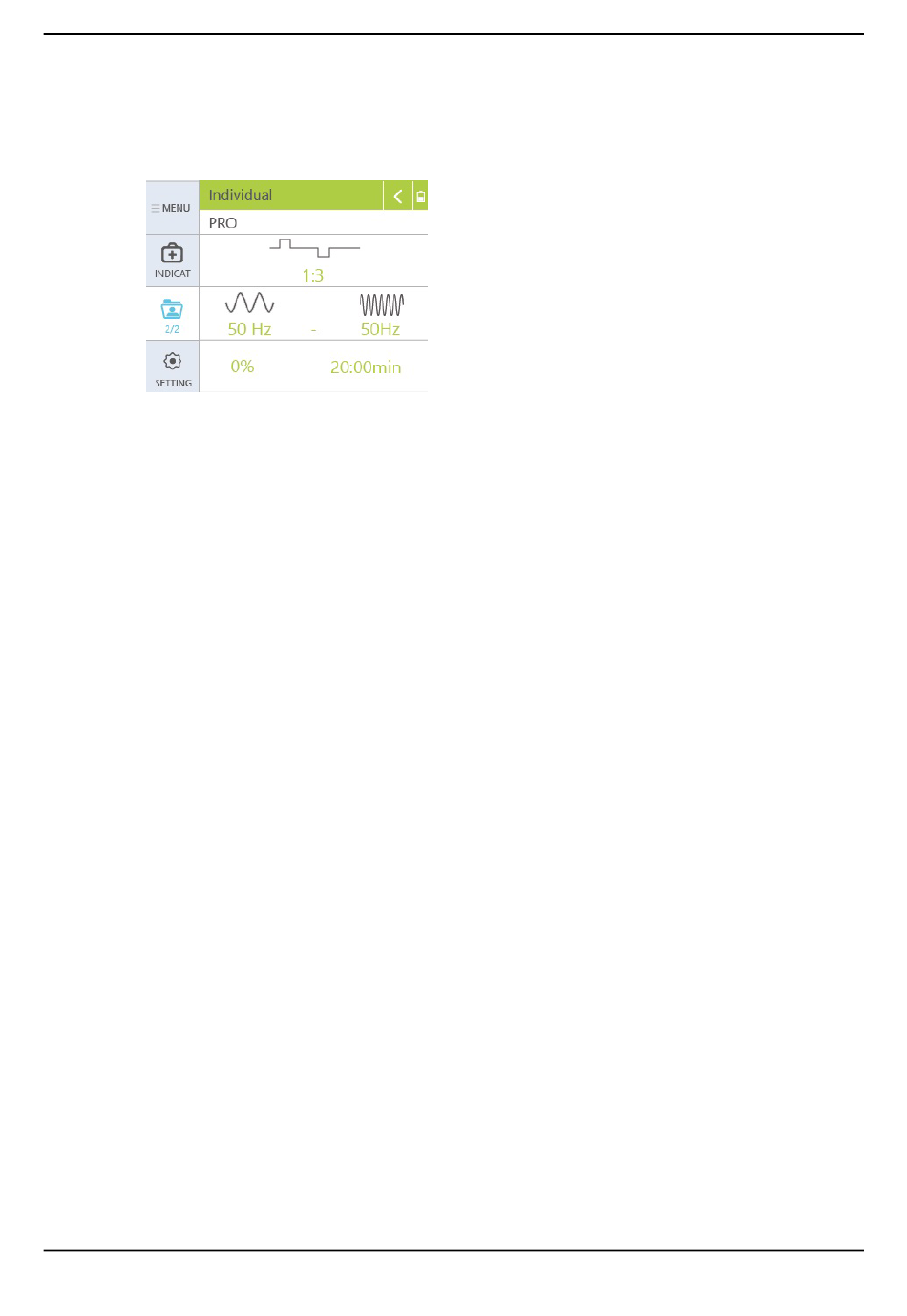

Individual Program - Page 2 - selection of parameters
(2) Click on INDIVID once more to get to the second page.
(3) Click on INDIVID again. You can now rotate the Data Selector <2> to set the intensity, the treat-
ment duration and the duty cycle (e,g. 3:1), the lower frequency (e,g. 50 Hz), the upper frequency
(e,g. 125 Hz) and the duration of the three phases. Move the cursor, which is indicated by a hori-
zontal bar, to the desired parameter.
To set the value of a parameter, first press the Data Selector <2> to activate the parameter. Then
rotate the Data Selector <2> to set the desired value.
(4) When you increase the intensity, the currently active phase is indicated by a black dot. During treat-
ment you can change all of the parameters (duty cycle, upper and lower frequency, intensity and dur-
ation).
(5) Click the symbol < in the top row of the Display <1> to return to the overview page.
22
8 Individual Programs (only DEEP OSCILLATION Personal Pro)
®
DEEP OSCILLATION Personal
