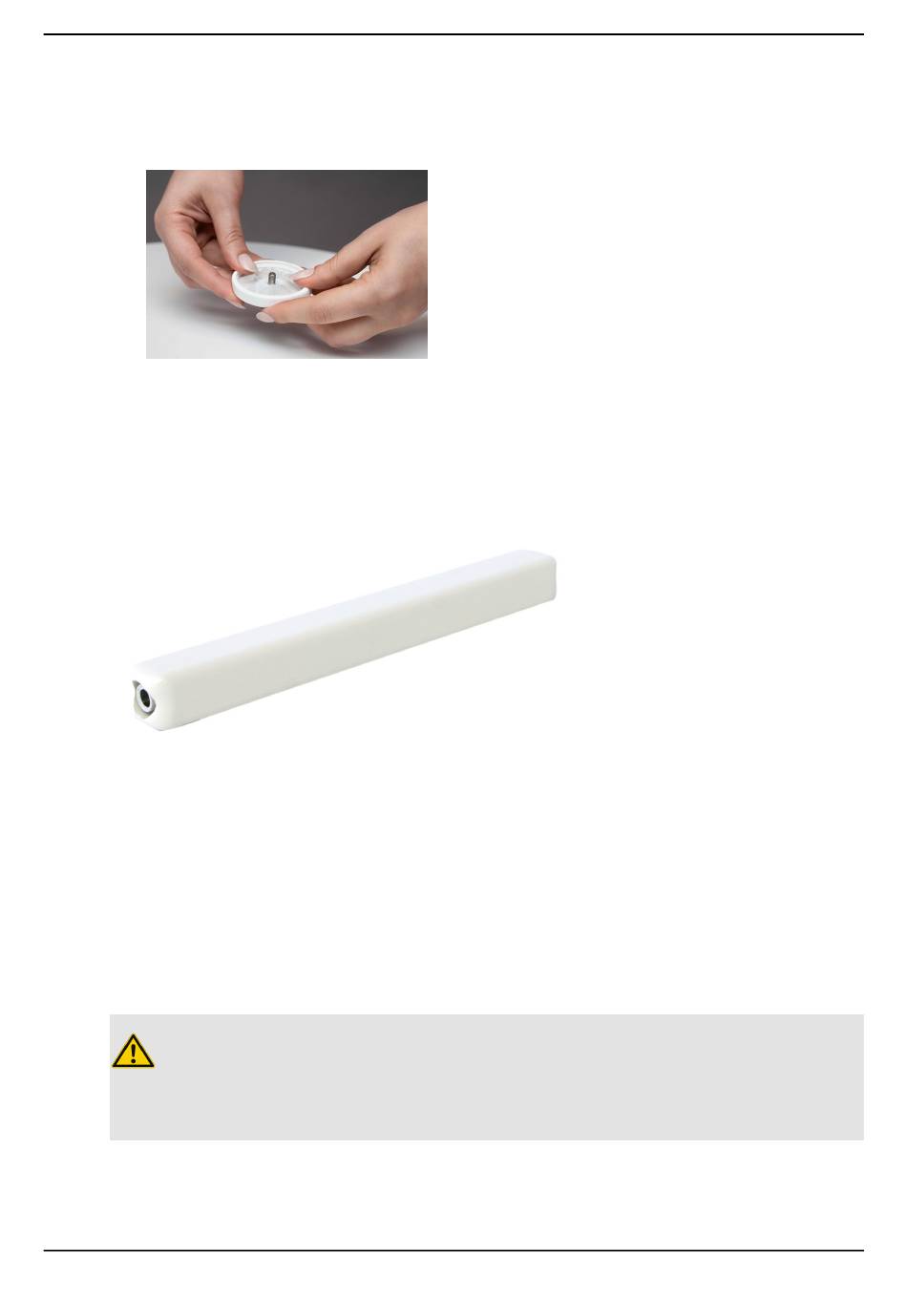

(3) Press the oscillator plate firmly onto the foam rubber area of the membrane until the clamping ring
engages with the oscillator plate. Make sure that the foil is tightly fixed with the clamping ring on the
outside, and that the clamping ring is engaged!
Changing the Membrane - Engaging the Oscillator Plate
5.5 Pin Applicator
The pin applicator (Ref. No. 00396) can be used in the same way as the hand applicator.
Pin Applicator
5.6 Therapy Card
The therapy card must be inserted to perform a treatment or to access the basic settings.
The therapy cards feature the following functions:
• Basic: Indications
• Pro: Indications and individual
• DEEP OSCILLATION: Memory card with one treatment (created using DEEP OSCILATION-Evident)
CAUTION
The treatment card must not be copied, and any attempt to reproduce it or read out the data
will invalidate it! PHYSIOMED ELEKTROMEDIZIN AG accepts no responsibility for damage in-
curred in this way!
