cutting out the 1 mm doubling in this area.
Then glue the reinforcement on the 2nd side.
2.4, 2.5

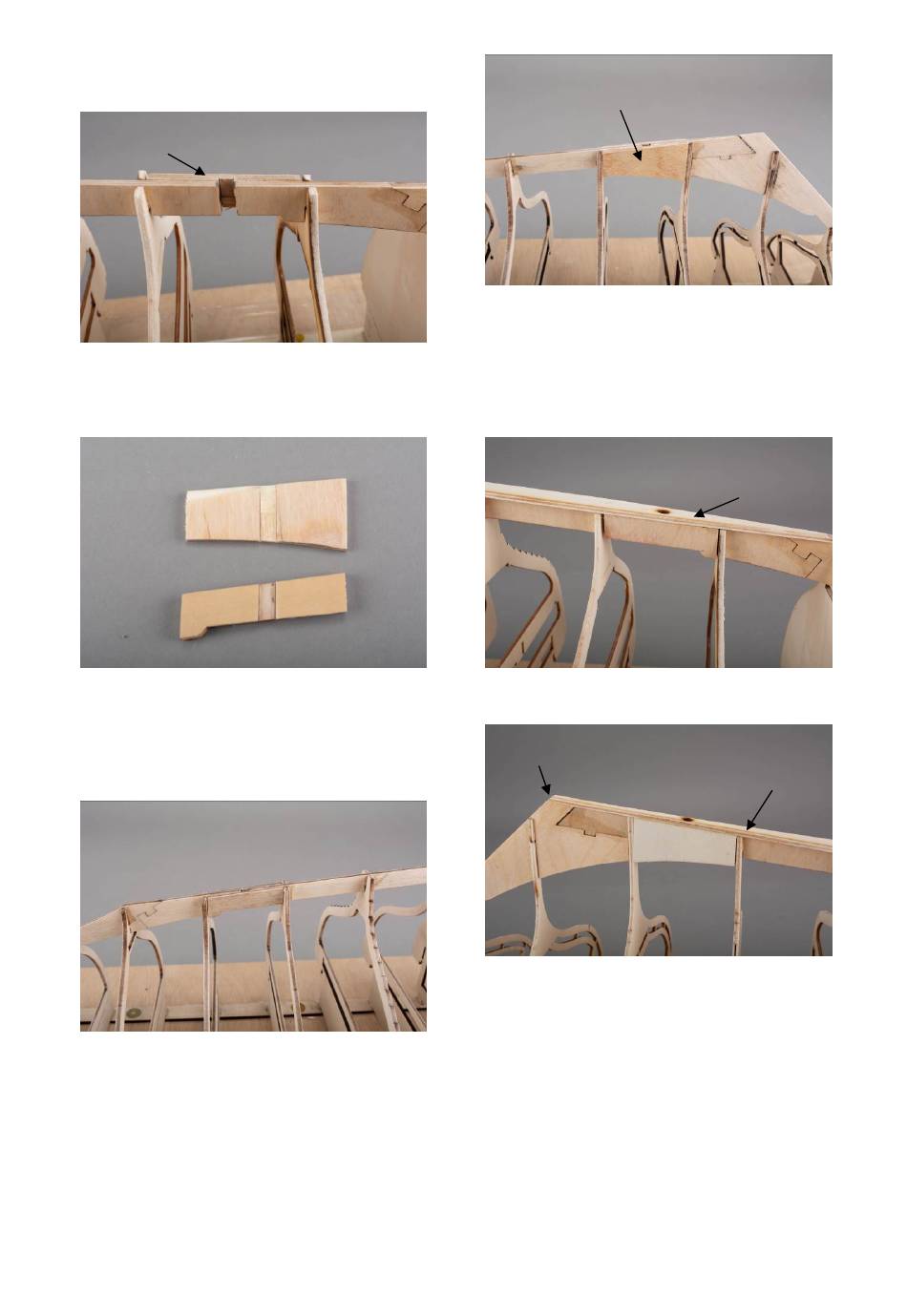

Fig.: Reinforcement glued on and bars cut out.
Mark the recess on the 2nd reinforcement. Cut
out this 1 mm doubling at the marking.
Fig.: 1 mm doubling cut out
You can now glue on the two reinforcements.
An opening of 7 x 7 mm has now been cre-
ated, into which the brass tube for holding the
ballast will later be glued.
Fig.: Reinforcement keel bolt front
Status October 2024
Fig.: Rear keel bolt reinforcement
Adjust the glued-in reinforcements to the
frames and sand the transitions.
In the next step, glue on the keelson 2.23, so
that the holes lie over the recesses in the keel.
Fig.: Aligning and gluing on the keelson, keel
bolt at the front
Transition
Fig.: Aligning and gluing on the keelson, keel
bolt at the rear
Sand the transition at the stern and bow to fit.
Next, glue 2 wooden strips 2.24 to the bow
stem.
Seite 4
2.6, 2.7
©
Krick Modelltechnik, Knittlingen, Germany
2.23
2.23
