krick FOLKEBOOT Baubeschreibung Seite 100

Now tie the downhaul to the bracket and lead it
back via the block on the boom over the block
on the mast and attach it to a cleat 4.42 which
is fastened to the mast with screws 4.43.
Step 7, fittings
In the final construction stage, add a few more
details to the model.
Firstly, assemble the 3 large cleats from the
supports 7.1 and the spars 7.2 and attach
them to the deck.

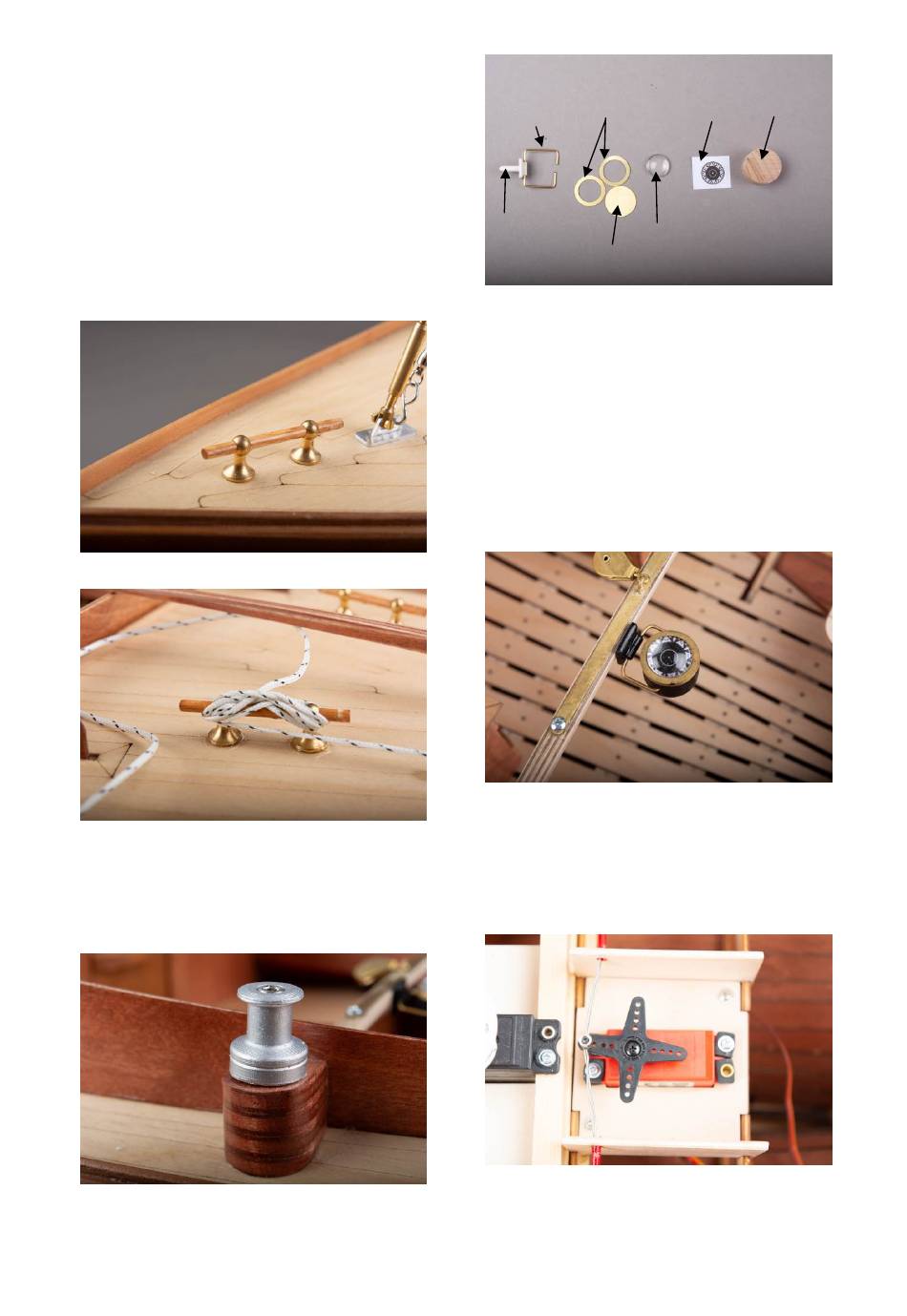

Fig.: Bow cleat
Fig.: Rear cleats
Drill a hole D 2.5 mm for the two winches 7.10.
Secure the two winches with the screws 7.11.
The winches can be painted according to your
own ideas.
Fig.: Winch
Finally, make the compass.
Status October 2024
7.8
7.9
Fig.: Compass parts
Separate the compass housing 7.3 twice from
the laser plate, glue them together and sand
them. Drill a 1 mm hole crosswise. Paint the
housing. Push the wire 7.8 through the bracket
7.9 and bend it to form the holder. Separate
the parts 7.4 and 7.5 from the etching plate
and glue them together and glue in the rosette
7.6.
Finally, glue the compass glass 7.7 in place
using e.g. R/C Modeller Canopy Glue, order
no. 44126.
Fig.: Compass
Stage 8, RC installation
Firstly, install the rudder servo. The servo
should be set to the neutral position using a
servo tester or the remote control.
Fig.: Attaching the servo
Fasten the linkage connection 5.14 to the
servo arm with the nut 5.15 so that it can be
rotated on the servo arm. Attach the servo arm
Seite 28
7.5
7.6
7.7
7.4
©
Krick Modelltechnik, Knittlingen, Germany
7.3
