krick FOLKEBOOT Baubeschreibung Seite 80

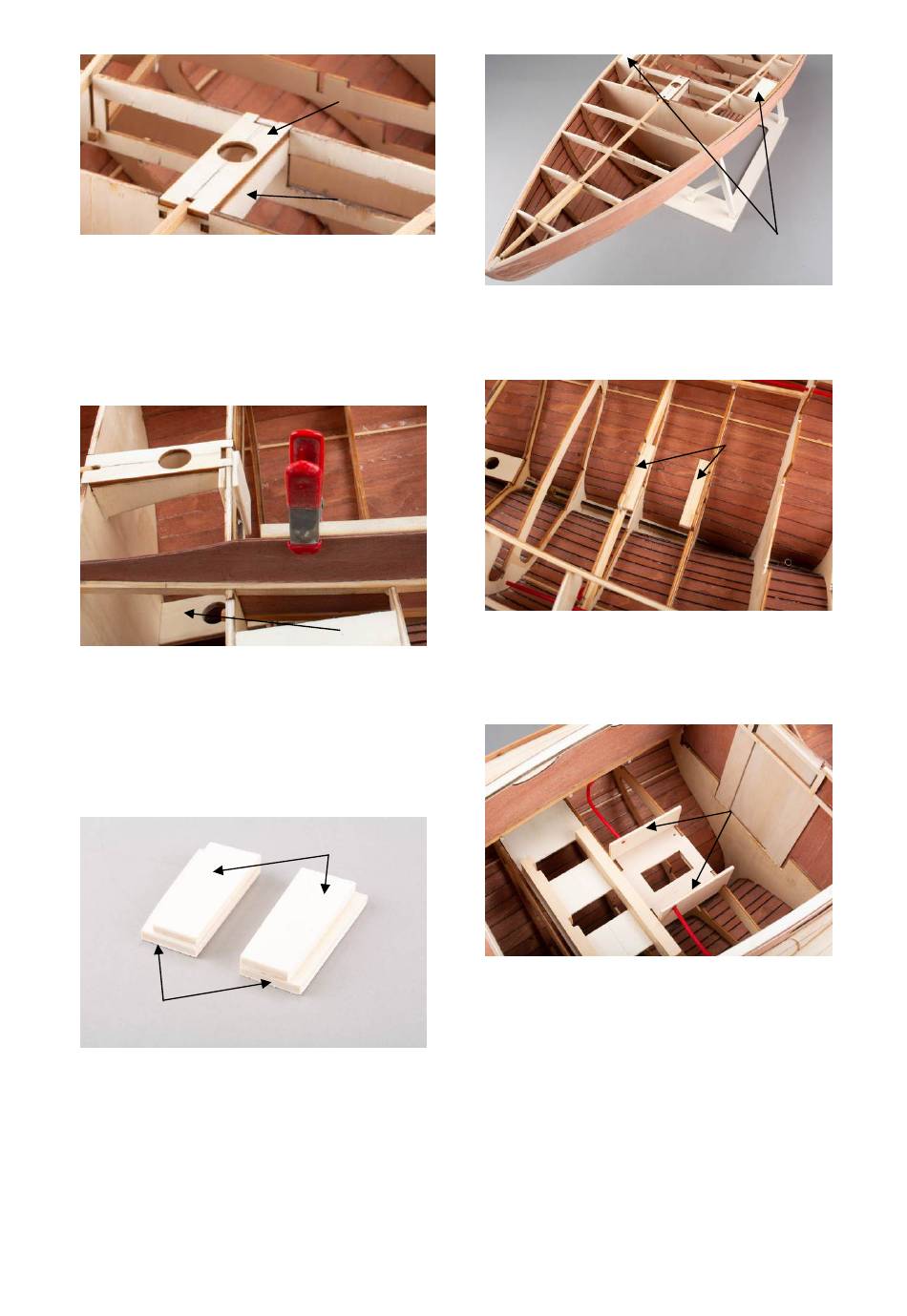

Fig.: Installing the mast bearing
Clip the two supports 2.55 into the frames and
glue them in place.
Glue in the mast bearing 2.54.
Slide the mast foot 2.53 into the recesses
provided and glue it in place. The mast should
be tilted backwards by 1-2°.
Fig.: Mast foot
In the next step, install the reinforcement for
the shrouds.
To do this, glue parts 2.47 onto parts 2.48.
Make sure that the two reinforcements are
mirror images of each other.
2.48
Fig.: Shroud reinforcement
Glue the reinforcements with the step under
the clamp between frames 6 and 7.
Status October 2024
2.54
2.55
Fig.: Shroud reinforcement
For the servo board 2.60, glue the two support
strips 2.61 to the frames.
Fig.: Servo board support
2.53
Glue the bearings for the Bowden cables of the
rudder linkage into the recesses of frames 8
and 9.
2.47
Fig.: Bowden cable bearing
The next step is to make the winch board.
Glue together the doublers for the winches
from 3 parts 2.64 and 2.65 each.
