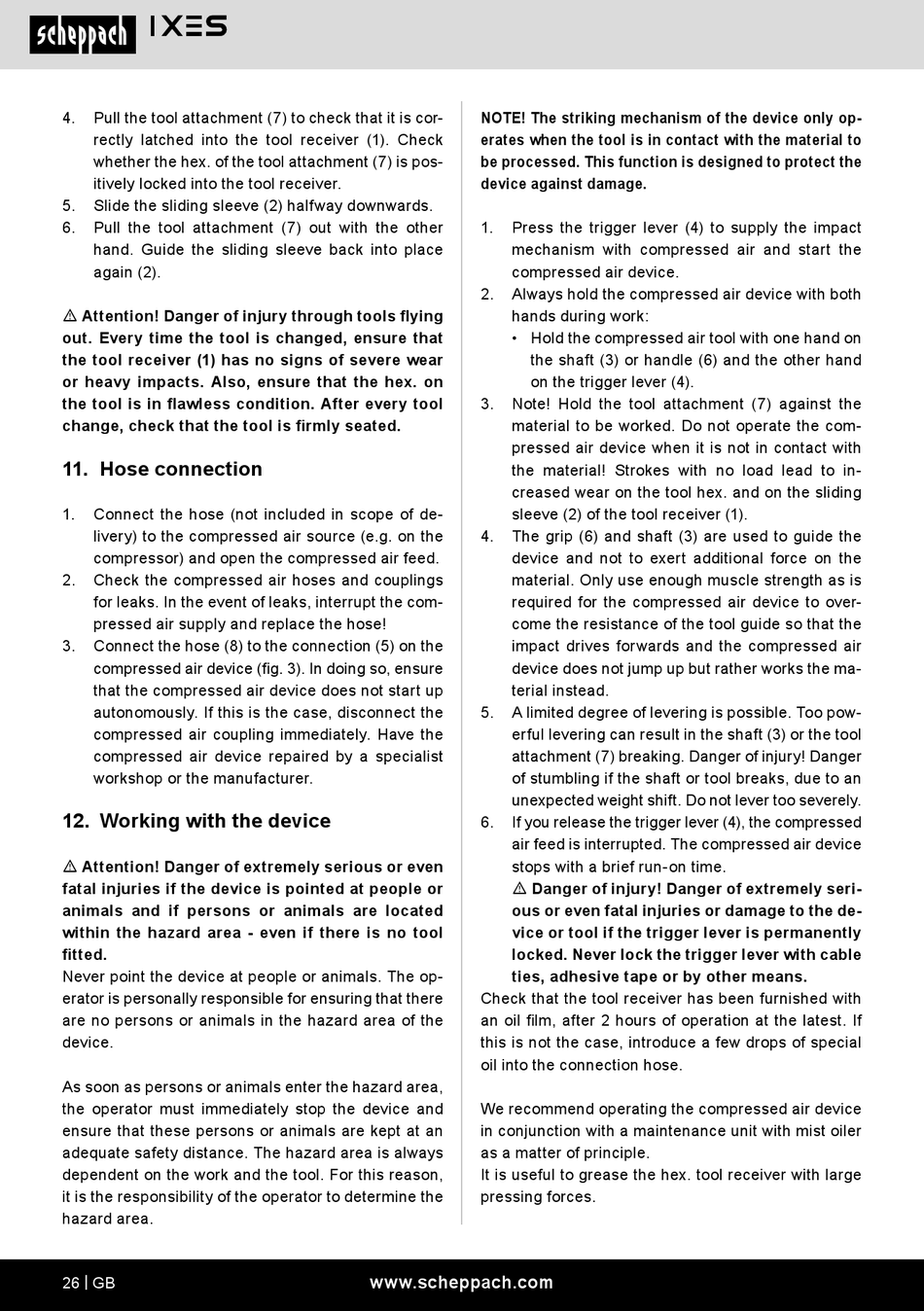

4.
Pull the tool attachment (7) to check that it is cor-
rectly latched into the tool receiver (1). Check
whether the hex. of the tool attachment (7) is pos-
itively locked into the tool receiver.
5.
Slide the sliding sleeve (2) halfway downwards.
6.
Pull the tool attachment (7) out with the other
hand. Guide the sliding sleeve back into place
again (2).
m Attention! Danger of injury through tools flying
out. Every time the tool is changed, ensure that
the tool receiver (1) has no signs of severe wear
or heavy impacts. Also, ensure that the hex. on
the tool is in flawless condition. After every tool
change, check that the tool is firmly seated.
11. Hose connection
1.
Connect the hose (not included in scope of de-
livery) to the compressed air source (e.g. on the
compressor) and open the compressed air feed.
2.
Check the compressed air hoses and couplings
for leaks. In the event of leaks, interrupt the com-
pressed air supply and replace the hose!
3.
Connect the hose (8) to the connection (5) on the
compressed air device (fig. 3). In doing so, ensure
that the compressed air device does not start up
autonomously. If this is the case, disconnect the
compressed air coupling immediately. Have the
compressed air device repaired by a specialist
workshop or the manufacturer.
12. Working with the device
m Attention! Danger of extremely serious or even
fatal injuries if the device is pointed at people or
animals and if persons or animals are located
within the hazard area - even if there is no tool
fitted.
Never point the device at people or animals. The op-
erator is personally responsible for ensuring that there
are no persons or animals in the hazard area of the
device.
As soon as persons or animals enter the hazard area,
the operator must immediately stop the device and
ensure that these persons or animals are kept at an
adequate safety distance. The hazard area is always
dependent on the work and the tool. For this reason,
it is the responsibility of the operator to determine the
hazard area.
26 | GB
NOTE! The striking mechanism of the device only op-
erates when the tool is in contact with the material to
be processed. This function is designed to protect the
device against damage.
1.
Press the trigger lever (4) to supply the impact
mechanism with compressed air and start the
compressed air device.
2.
Always hold the compressed air device with both
hands during work:
• Hold the compressed air tool with one hand on
the shaft (3) or handle (6) and the other hand
on the trigger lever (4).
3.
Note! Hold the tool attachment (7) against the
material to be worked. Do not operate the com-
pressed air device when it is not in contact with
the material! Strokes with no load lead to in-
creased wear on the tool hex. and on the sliding
sleeve (2) of the tool receiver (1).
4.
The grip (6) and shaft (3) are used to guide the
device and not to exert additional force on the
material. Only use enough muscle strength as is
required for the compressed air device to over-
come the resistance of the tool guide so that the
impact drives forwards and the compressed air
device does not jump up but rather works the ma-
terial instead.
5.
A limited degree of levering is possible. Too pow-
erful levering can result in the shaft (3) or the tool
attachment (7) breaking. Danger of injury! Danger
of stumbling if the shaft or tool breaks, due to an
unexpected weight shift. Do not lever too severely.
6.
If you release the trigger lever (4), the compressed
air feed is interrupted. The compressed air device
stops with a brief run-on time.
m Danger of injury! Danger of extremely seri-
ous or even fatal injuries or damage to the de-
vice or tool if the trigger lever is permanently
locked. Never lock the trigger lever with cable
ties, adhesive tape or by other means.
Check that the tool receiver has been furnished with
an oil film, after 2 hours of operation at the latest. If
this is not the case, introduce a few drops of special
oil into the connection hose.
We recommend operating the compressed air device
in conjunction with a maintenance unit with mist oiler
as a matter of principle.
It is useful to grease the hex. tool receiver with large
pressing forces.
