SICK DFS60S Pro Betriebsanleitung Seite 65

10
(0.39)
Ø 0.05 B
B
X
19 ±0.3
(0.75)
0.1 A
C
0.03
A
19 ±0.3
(0.75)
18
(0.71)
5

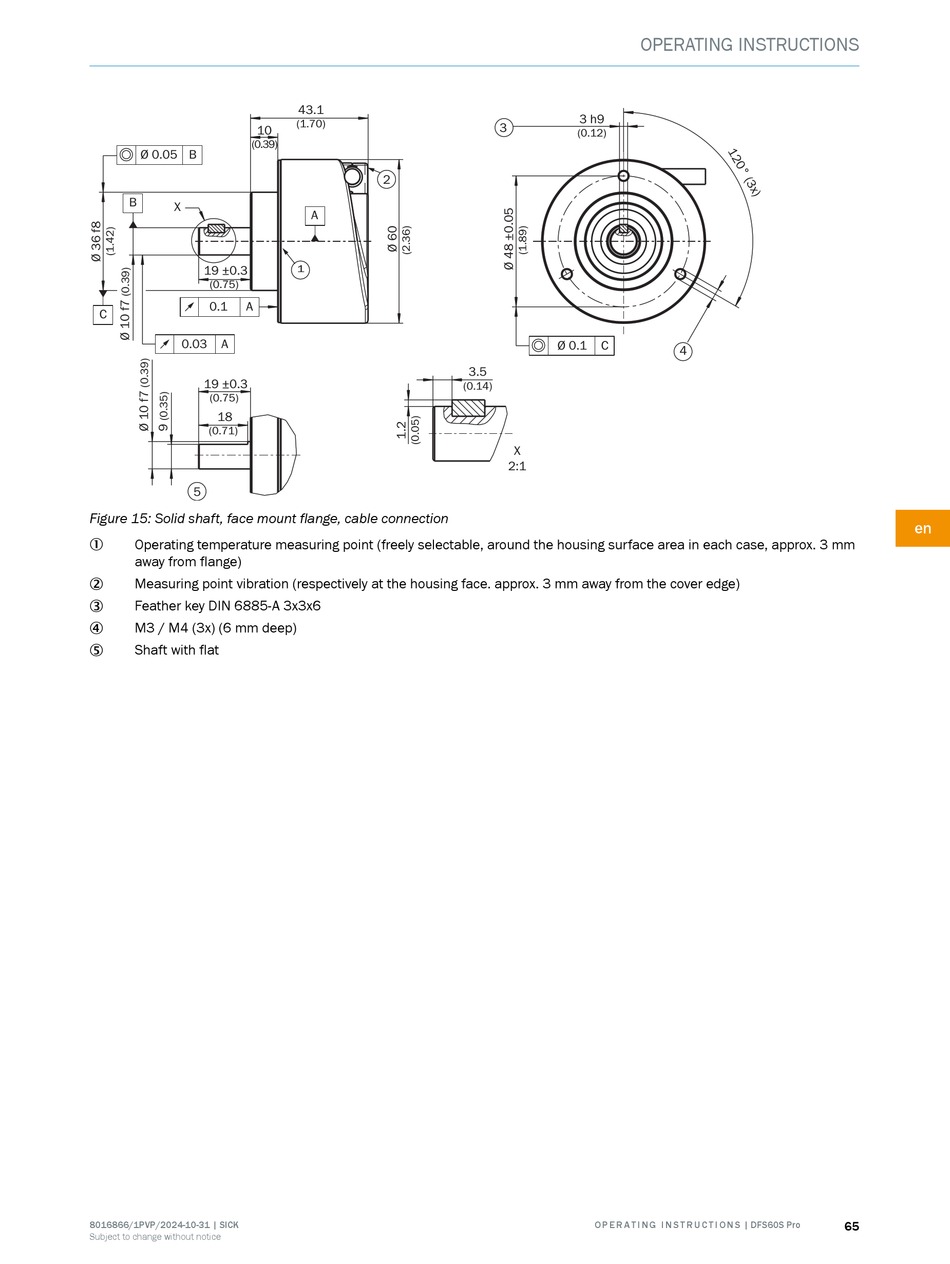

Figure 15: Solid shaft, face mount flange, cable connection
Operating temperature measuring point (freely selectable, around the housing surface area in each case, approx. 3 mm
1
away from flange)
Measuring point vibration (respectively at the housing face. approx. 3 mm away from the cover edge)
2
Feather key DIN 6885-A 3x3x6
3
M3 / M4 (3x) (6 mm deep)
4
Shaft with flat
5
8016866/1PVP/2024-10-31 | SICK
Subject to change without notice
43.1
(1.70)
2
A
1
3.5
(0.14)
OPERATING INSTRUCTIONS
3 h9
3
(0.12)
Ø 0.1 C
4
X
2:1
O P E R A T I N G I N S T R U C T I O N S | DFS60S Pro
en
65
