Handicare 1100 Kundendienstanleitung Seite 57

B
NOT ALLOWED AT STANDARD
SERVICE WORK.
NECESSARY KIT IN CASE THE
TILT CHASSIS OR SEAT STEM
WILL BE REMOVED !
M6x12
M6x12
M6x12
M6x12
M6x12

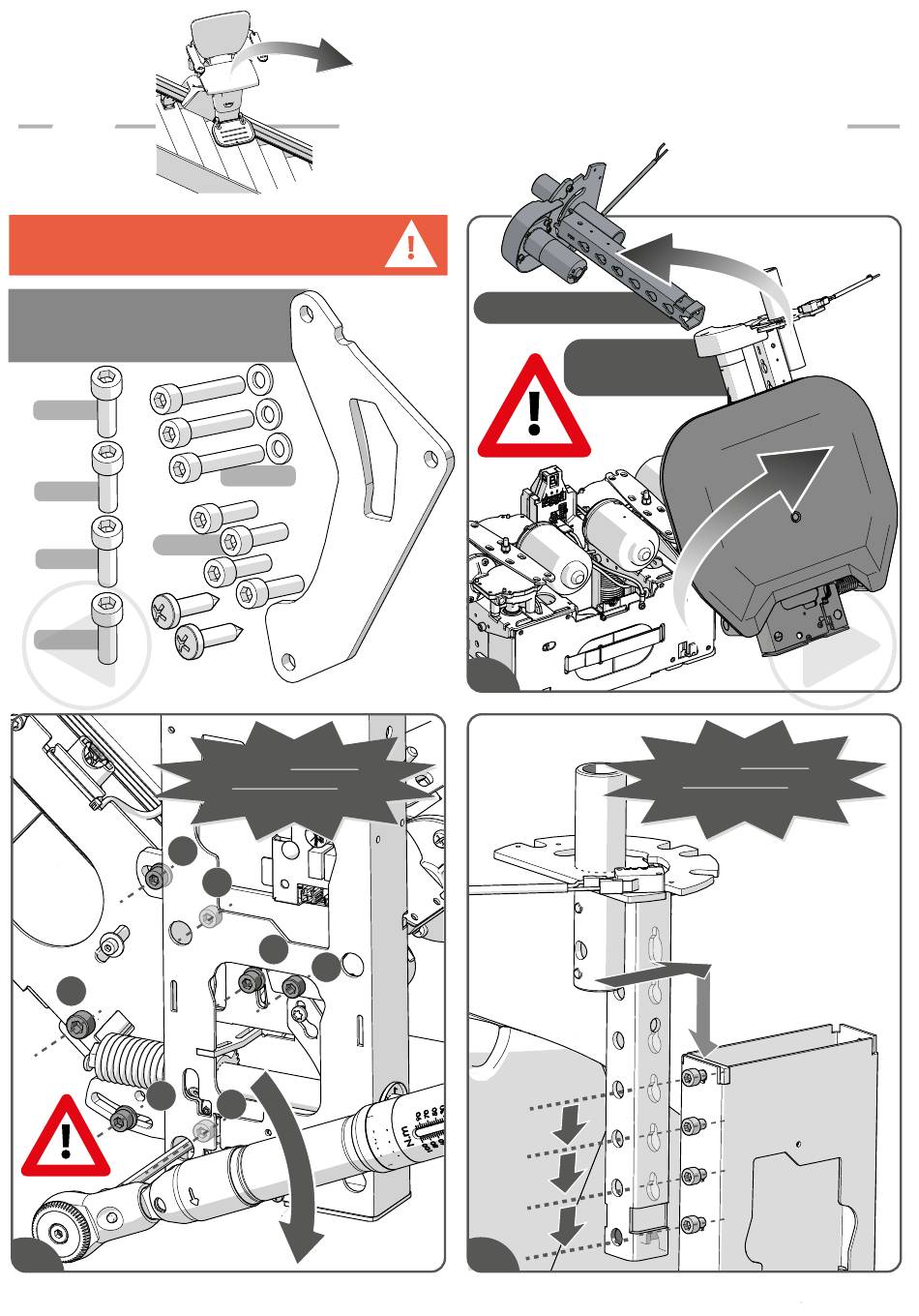

REMOUNT TILT CHASSIS KIT:
1
7
5
B.2
REMOUNT TILT CHASSIS/STEM
M6x40
Use the remount
tilt chassis kit to
reinstall the tilt chassis
2
3
4
6
7x
REMOVAL STEM
REMOVAL
TILT CHASSIS
B.1
B.3
FOOTREST_CHASSIS
Use the remount
tilt chassis kit to
reinstall the stem
SERVICE MANUAL 55
