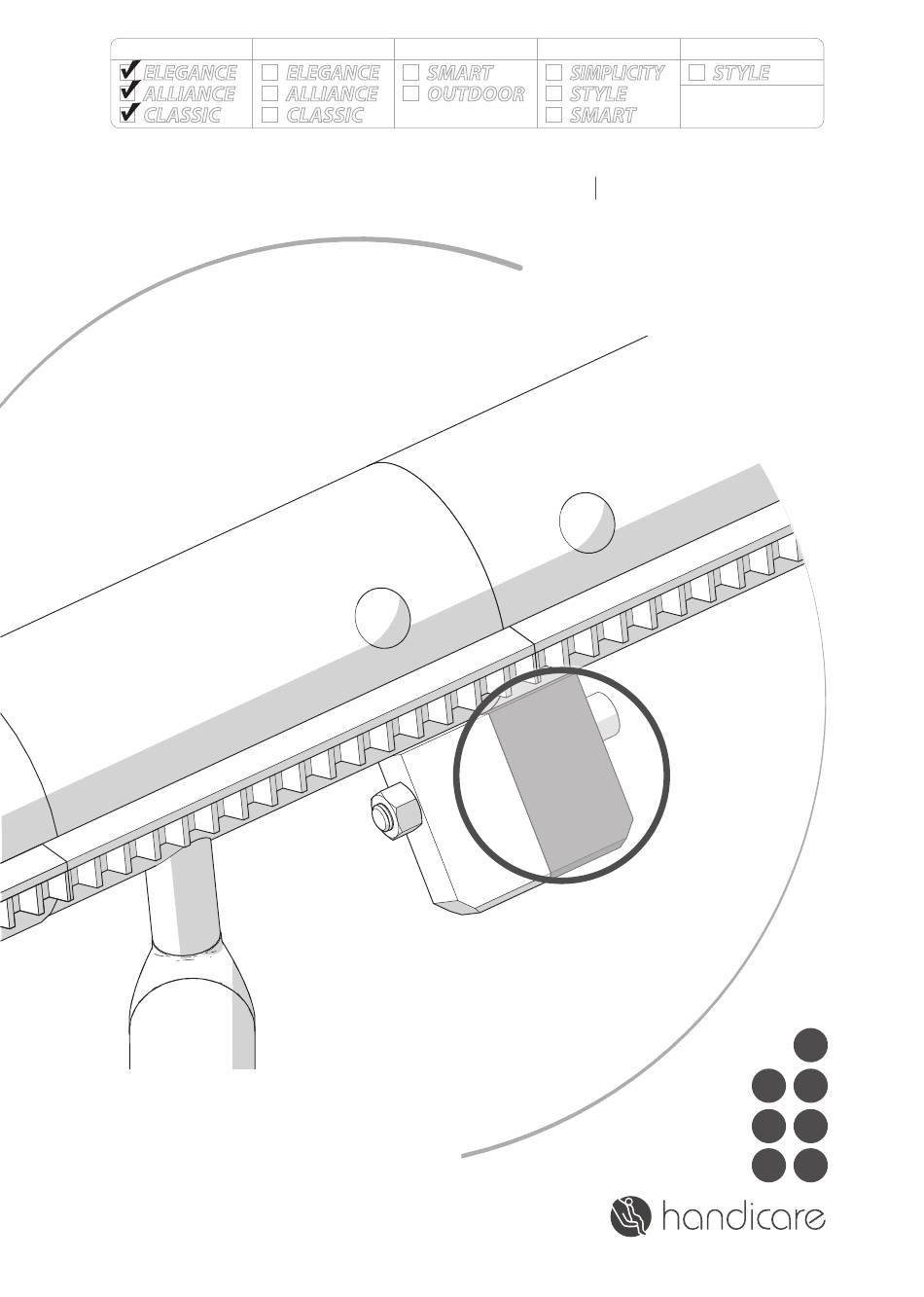

- Seite 1 FREECURVE 3 FREECURVE 4 1000 4000 1100 ELEGANCE ELEGANCE SMART SIMPLICITY STYLE ALLIANCE ALLIANCE OUTDOOR STYLE CLASSIC CLASSIC SMART HANDICARE I N S T R U C T I O N INSTRUCCIÓN INSTRUCTIE ANLEITUNG INSTRUCTION ISTRUZIONE Giunto della guida (blocco fittizio)
- Seite 2 DUMMY BLOCK INSTRUCTION USED TOOLS : white C2011010 : grey C2011020 : braun C2011030 AA32290 AA12120 7 mm 5 mm 8 mm 5 mm 1 DUMMY BLOCK INSTRUCTION...
- Seite 3 EXPLANATION Only a technician certified for this lift should service this lift (for more detailled information about the required competence see the installation manual). The latest instructions for the lift and instructions for options are available for download at www.handicarepartners.com. [1] Check that all the components of the concerning kit are present.
- Seite 4 DUMMY BLOCK RAIL INSTRUCTION OTHER RAILPARTS NEXT SECOND SECTION 0 Nm 3 DUMMY BLOCK INSTRUCTION...
- Seite 5 EXPLANATION [2]Remove the coating from the rail joint. [3]Guide the charge wire through the joint{A} and install the joint{B}. [4]Fasten the last support to the next rail section [hand tight]. TIP: use a pull through spring (in combination with the cable guide 11C00122) to hold the charge wire and guide through the rail.
- Seite 6 DUMMY BLOCK RAIL INSTRUCTION JOINT 8 mm NEXT SECTION 5 DUMMY BLOCK INSTRUCTION...
- Seite 7 EXPLANATION [6]Guide the charge wire and place the next rail part. [7]Start to fix the joint. [8]Remove the fixation tool. [9]Close the cap between the railparts by adjusting the supports. [6]Leid de laaddraad en plaats het volgende raildeel. [7]Begin met het fixeren van de verbinding. [8]Verwijder het magnetische gereedschap.
- Seite 8 DUMMY BLOCK RAIL INSTRUCTION FASTEN JOINT 8 mm 13mm 0 Nm 6 mm 7 DUMMY BLOCK INSTRUCTION...
- Seite 9 EXPLANATION [10]Install the tool to align the tooth racks of the rail parts. [11]Align the tooth racks of the rail parts. [12]Torque it on alternating sides to 50 Nm (442 Lb-In). [13]Remove the tooth rack tool{A}. Put the caps in the holes{B}. [14]Position and fasten the dummy block.
-
