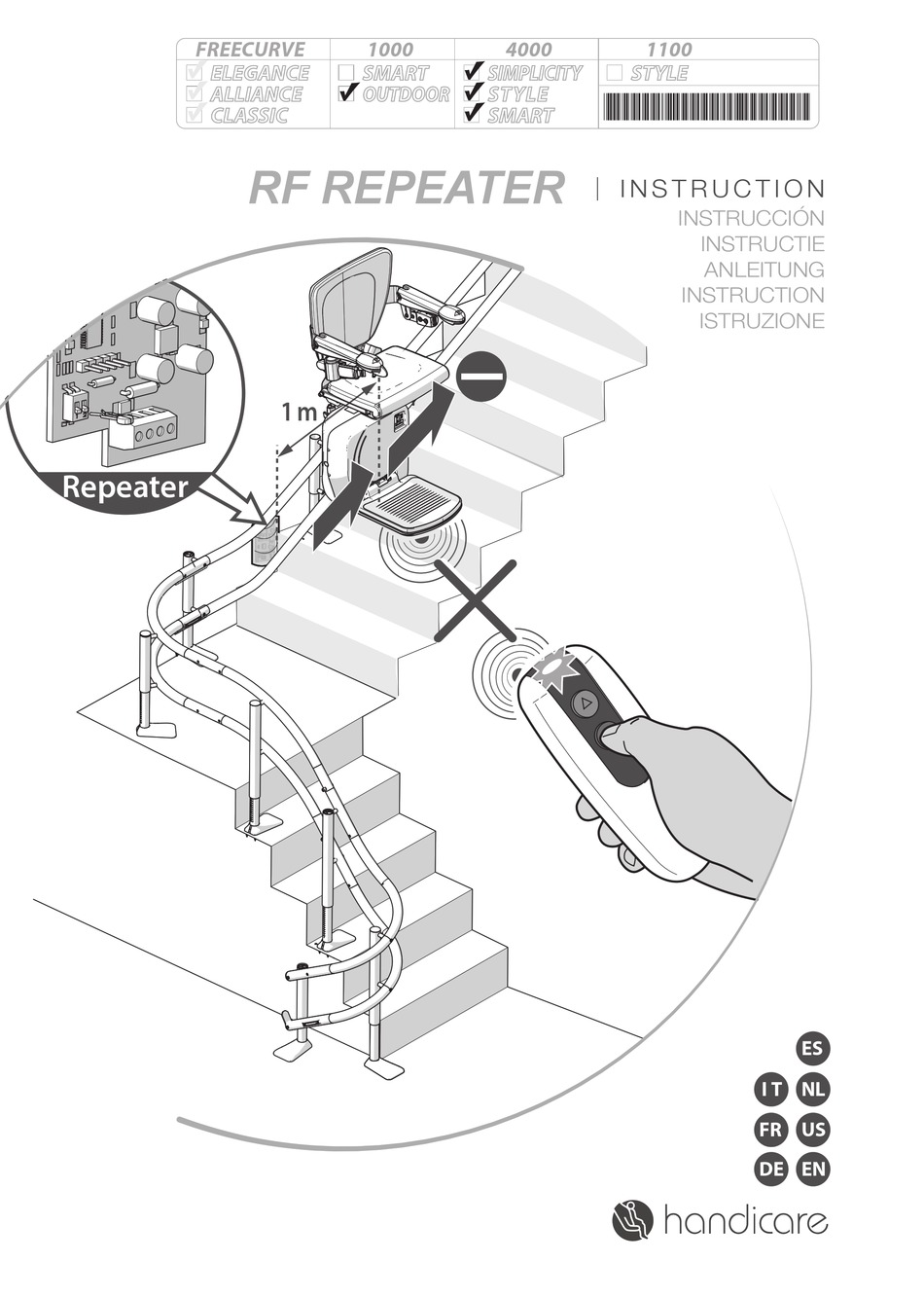

- Seite 1 FREECURVE 1000 4000 1100 ELEGANCE SMART SIMPLICITY STYLE ALLIANCE OUTDOOR STYLE *OCRFR-OCRFR2-OCRFR3* CLASSIC SMART RF REPEATER I N S T R U C T I O N INSTRUCCIÓN INSTRUCTIE ANLEITUNG INSTRUCTION ISTRUZIONE Repeater...
- Seite 2 RF REPEATER Pz 2 13 mm TOOLS REQUIRED 39 inch 1 RF REPEATER INSTRUCTION...
- Seite 3 EXPLANATION Only a technician certified for this lift should service this lift (for more detailled information about the required competence see the installation manual). The latest instructions for the lift and instructions for options are available for download at www.handicarepartners.com. [1] Check that all the components of the concerning kit are present.
- Seite 4 RF REPEATER 13 mm 3 RF REPEATER INSTRUCTION...
- Seite 5 EXPLANATION [4]Turn off/disconnect the power supply and switch off the powerpack. Drill a 13 mm hole in the bottom rail. Be careful not to damage the wire inside. [5]Use a bent piece of iron wire to pull the cable from inside the rail through the hole. [6]Cut through the cable.
- Seite 6 RF REPEATER 8 mm 45 Nm 398 Lb-In CLICK! CLICK! 5 RF REPEATER INSTRUCTION...
- Seite 7 EXPLANATION [8]Remove the paint from the rail{A}. Position the earth wire between lug and rail{B}. Place stanchion bolt and spacer. Tighten the stanchion-rail bolt [45 Nm | 398 Lb-In]{C}. [9]Feed all the wires into the hole of the rail{A}. Insert the grommet into the hole{B}. Use cable ties to fasten the excessive wires to the stanchion{C}.
- Seite 8 RF REPEATER SAME POSITION CLICK! FIRST LATER MORE REPEATER CAN BE PLACED IF SIGNAL WILL BE LOST FURTHERON THE TRACK FOLLOW THE SAME PROCEDURE 7 RF REPEATER INSTRUCTION...
- Seite 9 EXPLANATION [12]Connect the wires with the repeater PCB. The + and - connections are labelled on the RF Repeater. [13]Set the dipswitch settings on the PCB: each RF repeater should have the same dipswitch settings as the RF Receiver. [14]Close the holder with the screen in between{A}. Fasten the cover of the holder{B}. [15+16]Turn on the powerpack before restoring power to the power supply.
