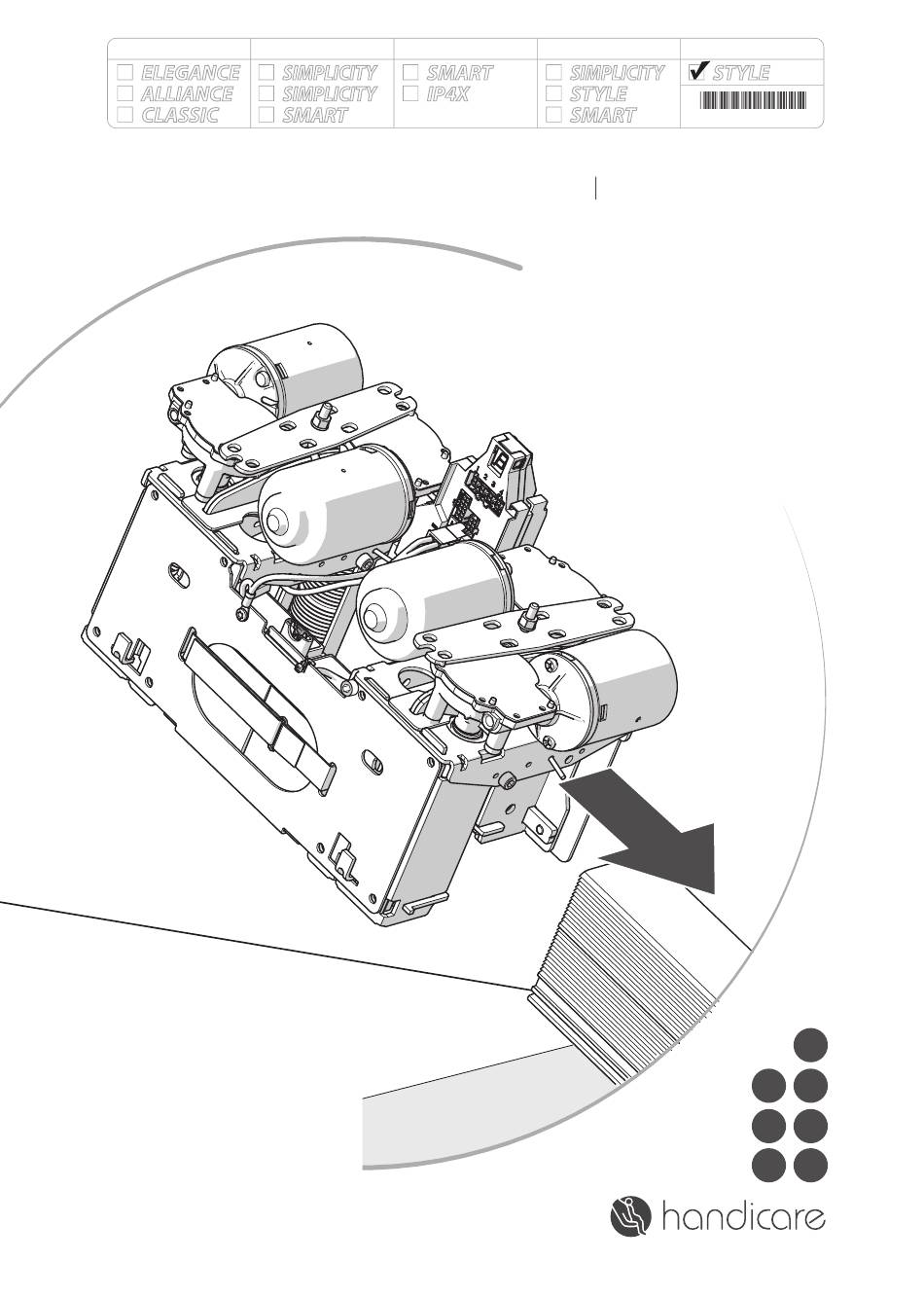

Seite 2: Control Box Kit Spareparts
CONTROL BOX AA16428 3,5 x 6,5 mm 1 CONTROL BOX KIT SPAREPARTS... - Seite 3 EXPLANATION Only a technician certified for this lift should install this lift (for more detailled information about the required competence see attachment G of the installation manual). General required knowledge can be found in the 1100 Techical Manual. The latest instructions for the lift and instructions for options are available for download at www.handicarepartners.com. [4.1]Check that all the components of the concerning kit are present.
- Seite 4 CONTROL BOX 3 CONTROL BOX KIT SPAREPARTS...
- Seite 5 EXPLANATION [4.4]Remove the two nyloc nuts. [4.5]Remove power pack cover from the unit. TIP: in case the chair is in its lowest position, turn the chair a little bit to remove the cover. DONOT REMOVE THE CHAIR: COVERS AND SPAREPARTS CAN BE REMOVED WITHOUT REMOVING THE CHAIR! [4.6]Remove the nylon nut.
- Seite 6 CONTROL BOX 4.10 4.11 5 CONTROL BOX KIT SPAREPARTS...
- Seite 7 EXPLANATION [4.8]Disconnect the inner motor{A} and remove the motor{B}. [4.9]Disconnect the other inner motor{A} and remove the motor{B}. [4.10]Disconnect the main loom (A1) and the battery loom (A2). [4.11]Slide both activation rods outwards{A} and fix them temporarily with tape{B}. [4.8]Maak de motorkabel los{A} en verwijder de binnenste motor{B}. [4.9]Maak de motorkabel los{A} en verwijder de andere binnenste motor{B}.
- Seite 8 CONTROL BOX IF PRESENT 4.12 4.13 4.15 4.14...
- Seite 9 EXPLANATION [4.12]If present: remove the screws(2x). [4.13]Tilt the control box a little bit{1} and slide the box, the lower side of the box pressing against the inner wall of the power pack, upwards{2}. [4.14]Push the spring against the box{A} and slide the box downwards{B}. [4.15]Tilt the box and keep on pushing the box downwards, the lower side of the box pressing against the inner wall of the power pack, untill the edge is falling in the slot.
- Seite 10 CONTROL BOX 0,7 Nm 3,5 x 6,5 mm 4.17 4.16 4.18 4.19 9 CONTROL BOX KIT SPAREPARTS...
- Seite 11 EXPLANATION [4.16]Alternately wind in the grub screws, to position the control box in the center. [4.17]Fasten the screws (0,7 Nm). [4.18]Reinstall the motors{A} and connect the motors{B}. [4.19]Keep the hook in the right position and replace the motor brackets{A}. Replace and fasten (handtight ! ) the nylon nuts{B}.
- Seite 12 CONTROL BOX 4.20 4.21 CLICK! 4.22 4.23 11 CONTROL BOX KIT SPAREPARTS...
- Seite 13 EXPLANATION [4.20]Tilt the power pack cover onto the unit. Be careful not to trap the seat cable{A}. Carefully push the slot on the power pack cover into the four brackets on the unit{B}. [4.21]Secure the power pack cover in place using the two nyloc nuts. [4.22]Slide the safety guard over the rail onto the power pack {A}.
-
