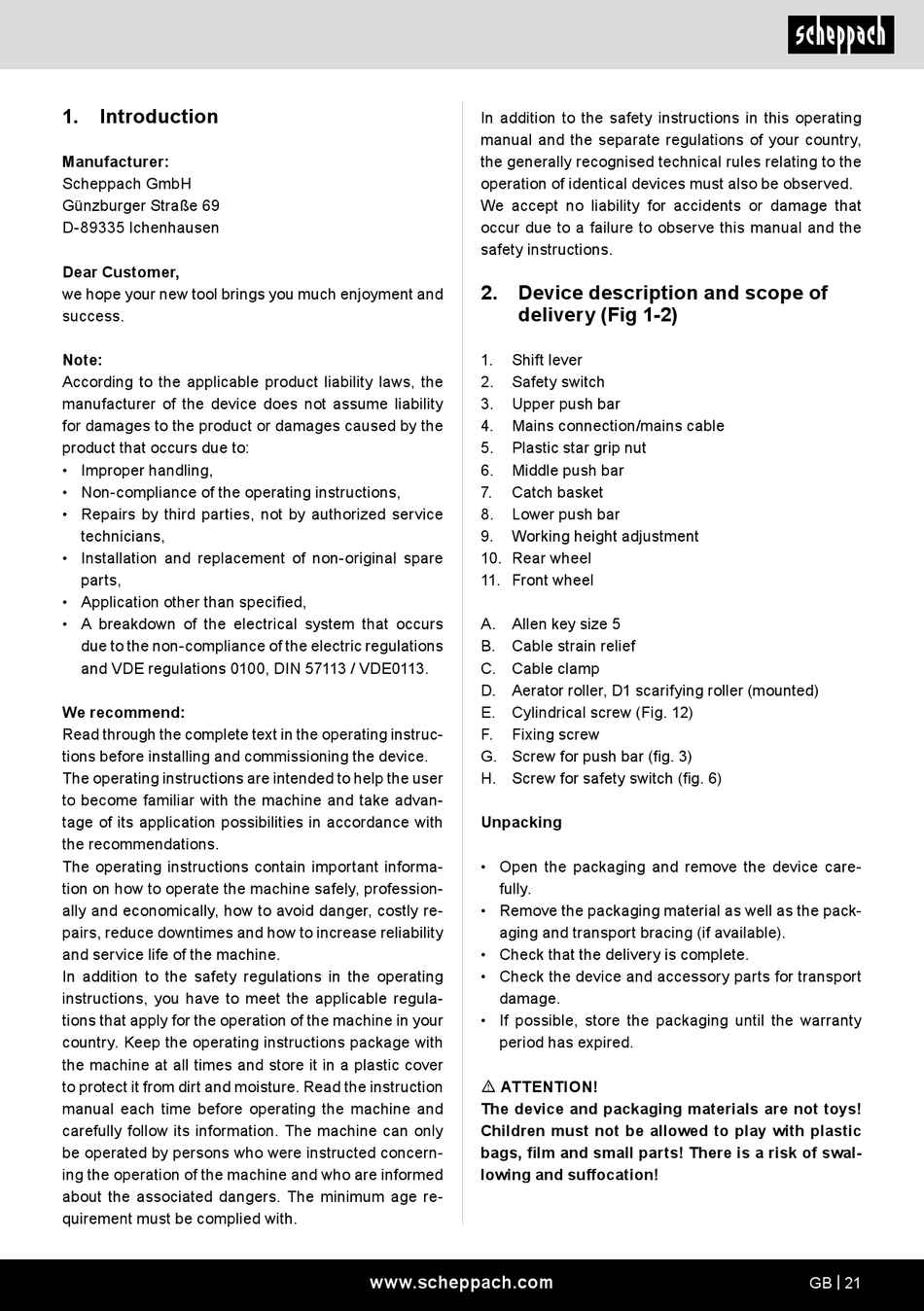

Scheppach SC32 Originalbetriebsanleitung Seite 21

1. Introduction
Manufacturer:
Scheppach GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear Customer,
we hope your new tool brings you much enjoyment and
success.
Note:
According to the applicable product liability laws, the
manufacturer of the device does not assume liability
for damages to the product or damages caused by the
product that occurs due to:
• Improper handling,
• Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service
technicians,
• Installation and replacement of non-original spare
parts,
• Application other than specified,
• A breakdown of the electrical system that occurs
due to the non-compliance of the electric regulations
and VDE regulations 0100, DIN 57113 / VDE0113.
We recommend:
Read through the complete text in the operating instruc-
tions before installing and commissioning the device.
The operating instructions are intended to help the user
to become familiar with the machine and take advan-
tage of its application possibilities in accordance with
the recommendations.
The operating instructions contain important informa-
tion on how to operate the machine safely, profession-
ally and economically, how to avoid danger, costly re-
pairs, reduce downtimes and how to increase reliability
and service life of the machine.
In addition to the safety regulations in the operating
instructions, you have to meet the applicable regula-
tions that apply for the operation of the machine in your
country. Keep the operating instructions package with
the machine at all times and store it in a plastic cover
to protect it from dirt and moisture. Read the instruction
manual each time before operating the machine and
carefully follow its information. The machine can only
be operated by persons who were instructed concern-
ing the operation of the machine and who are informed
about the associated dangers. The minimum age re-
quirement must be complied with.
In addition to the safety instructions in this operating
manual and the separate regulations of your country,
the generally recognised technical rules relating to the
operation of identical devices must also be observed.
We accept no liability for accidents or damage that
occur due to a failure to observe this manual and the
safety instructions.
2. Device description and scope of
delivery (Fig 1-2)
1. Shift lever
2. Safety switch
3. Upper push bar
4. Mains connection/mains cable
5. Plastic star grip nut
6. Middle push bar
7. Catch basket
8. Lower push bar
9. Working height adjustment
10. Rear wheel
11. Front wheel
A. Allen key size 5
B. Cable strain relief
C. Cable clamp
D. Aerator roller, D1 scarifying roller (mounted)
E. Cylindrical screw (Fig. 12)
F. Fixing screw
G. Screw for push bar (fig. 3)
H. Screw for safety switch (fig. 6)
Unpacking
• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty
period has expired.
m ATTENTION!
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
