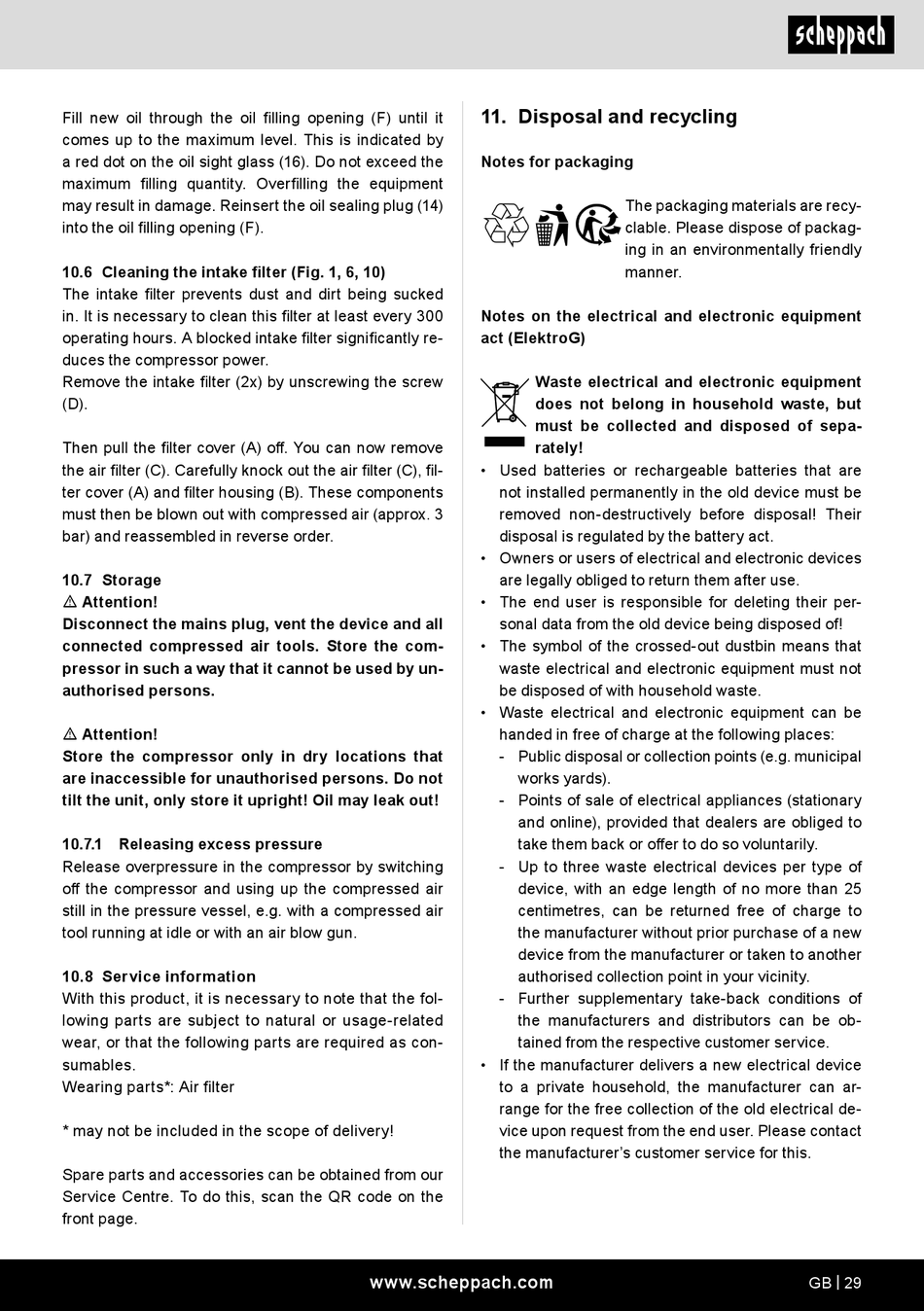

Scheppach HC54 Originalbetriebsanleitung Seite 29

Fill new oil through the oil filling opening (F) until it
comes up to the maximum level. This is indicated by
a red dot on the oil sight glass (16). Do not exceed the
maximum filling quantity. Overfilling the equipment
may result in damage. Reinsert the oil sealing plug (14)
into the oil filling opening (F).
10.6 Cleaning the intake filter (Fig. 1, 6, 10)
The intake filter prevents dust and dirt being sucked
in. It is necessary to clean this filter at least every 300
operating hours. A blocked intake filter significantly re-
duces the compressor power.
Remove the intake filter (2x) by unscrewing the screw
(D).
Then pull the filter cover (A) off. You can now remove
the air filter (C). Carefully knock out the air filter (C), fil-
ter cover (A) and filter housing (B). These components
must then be blown out with compressed air (approx. 3
bar) and reassembled in reverse order.
10.7 Storage
m Attention!
Disconnect the mains plug, vent the device and all
connected compressed air tools. Store the com-
pressor in such a way that it cannot be used by un-
authorised persons.
m Attention!
Store the compressor only in dry locations that
are inaccessible for unauthorised persons. Do not
tilt the unit, only store it upright! Oil may leak out!
10.7.1 Releasing excess pressure
Release overpressure in the compressor by switching
off the compressor and using up the compressed air
still in the pressure vessel, e.g. with a compressed air
tool running at idle or with an air blow gun.
10.8 Service information
With this product, it is necessary to note that the fol-
lowing parts are subject to natural or usage-related
wear, or that the following parts are required as con-
sumables.
Wearing parts*: Air filter
* may not be included in the scope of delivery!
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
11. Disposal and recycling
Notes for packaging
Notes on the electrical and electronic equipment
act (ElektroG)
Waste electrical and electronic equipment
does not belong in household waste, but
must be collected and disposed of sepa-
rately!
• Used batteries or rechargeable batteries that are
not installed permanently in the old device must be
removed non-destructively before disposal! Their
disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices
are legally obliged to return them after use.
• The end user is responsible for deleting their per-
sonal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that
waste electrical and electronic equipment must not
be disposed of with household waste.
• Waste electrical and electronic equipment can be
handed in free of charge at the following places:
- Public disposal or collection points (e.g. municipal
works yards).
- Points of sale of electrical appliances (stationary
and online), provided that dealers are obliged to
take them back or offer to do so voluntarily.
- Up to three waste electrical devices per type of
device, with an edge length of no more than 25
centimetres, can be returned free of charge to
the manufacturer without prior purchase of a new
device from the manufacturer or taken to another
authorised collection point in your vicinity.
- Further supplementary take-back conditions of
the manufacturers and distributors can be ob-
tained from the respective customer service.
• If the manufacturer delivers a new electrical device
to a private household, the manufacturer can ar-
range for the free collection of the old electrical de-
vice upon request from the end user. Please contact
the manufacturer's customer service for this.
www.scheppach.com
The packaging materials are recy-
clable. Please dispose of packag-
ing in an environmentally friendly
manner.
