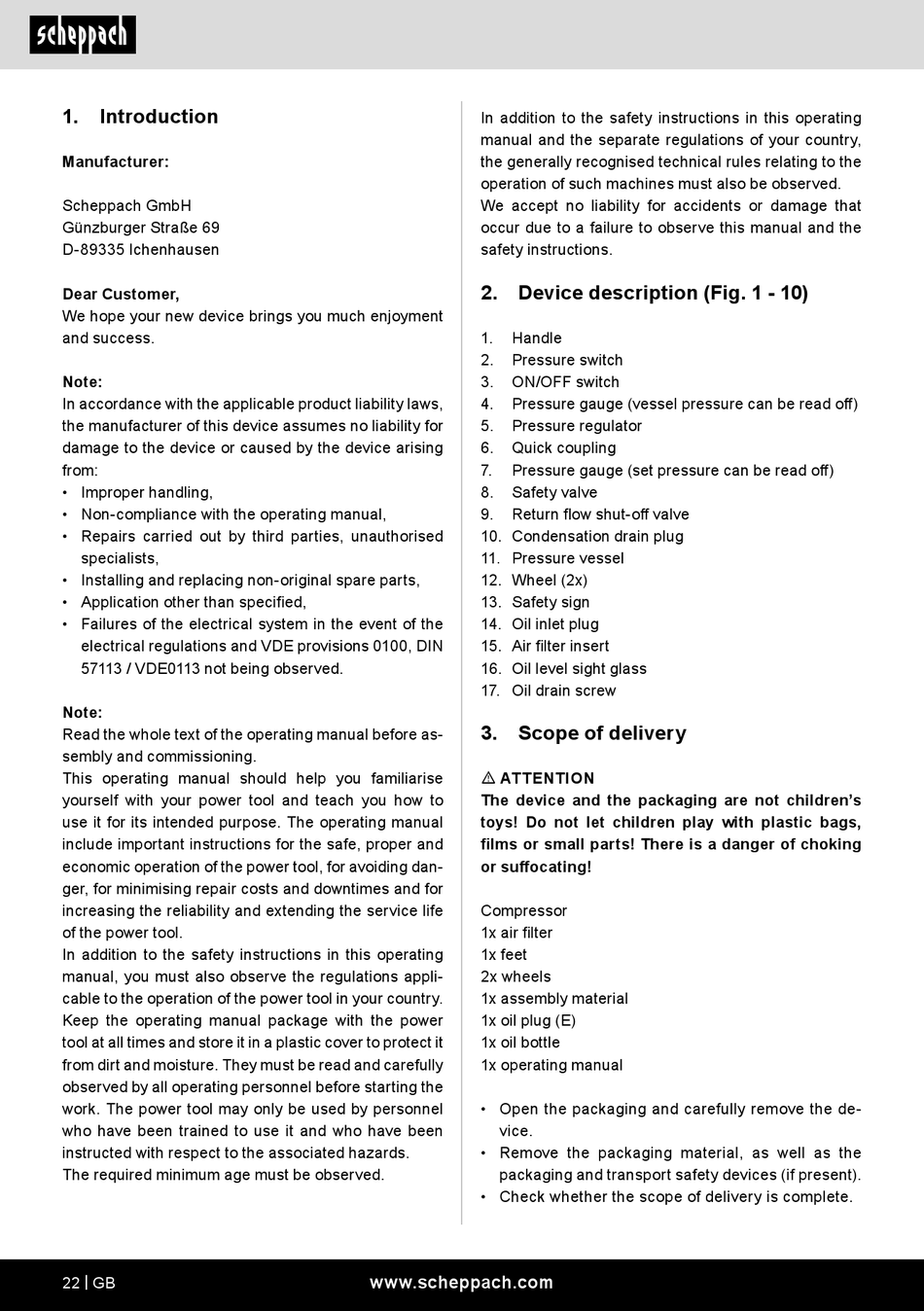

Scheppach HC54 Originalbetriebsanleitung Seite 22

1. Introduction
Manufacturer:
Scheppach GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear Customer,
We hope your new device brings you much enjoyment
and success.
Note:
In accordance with the applicable product liability laws,
the manufacturer of this device assumes no liability for
damage to the device or caused by the device arising
from:
• Improper handling,
• Non-compliance with the operating manual,
• Repairs carried out by third parties, unauthorised
specialists,
• Installing and replacing non-original spare parts,
• Application other than specified,
• Failures of the electrical system in the event of the
electrical regulations and VDE provisions 0100, DIN
57113 / VDE0113 not being observed.
Note:
Read the whole text of the operating manual before as-
sembly and commissioning.
This operating manual should help you familiarise
yourself with your power tool and teach you how to
use it for its intended purpose. The operating manual
include important instructions for the safe, proper and
economic operation of the power tool, for avoiding dan-
ger, for minimising repair costs and downtimes and for
increasing the reliability and extending the service life
of the power tool.
In addition to the safety instructions in this operating
manual, you must also observe the regulations appli-
cable to the operation of the power tool in your country.
Keep the operating manual package with the power
tool at all times and store it in a plastic cover to protect it
from dirt and moisture. They must be read and carefully
observed by all operating personnel before starting the
work. The power tool may only be used by personnel
who have been trained to use it and who have been
instructed with respect to the associated hazards.
The required minimum age must be observed.
22 | GB
In addition to the safety instructions in this operating
manual and the separate regulations of your country,
the generally recognised technical rules relating to the
operation of such machines must also be observed.
We accept no liability for accidents or damage that
occur due to a failure to observe this manual and the
safety instructions.
2. Device description (Fig. 1 - 10)
1. Handle
2. Pressure switch
3. ON/OFF switch
4. Pressure gauge (vessel pressure can be read off)
5. Pressure regulator
6. Quick coupling
7. Pressure gauge (set pressure can be read off)
8. Safety valve
9. Return flow shut-off valve
10. Condensation drain plug
11. Pressure vessel
12. Wheel (2x)
13. Safety sign
14. Oil inlet plug
15. Air filter insert
16. Oil level sight glass
17. Oil drain screw
3. Scope of delivery
m ATTENTION
The device and the packaging are not children's
toys! Do not let children play with plastic bags,
films or small parts! There is a danger of choking
or suffocating!
Compressor
1x air filter
1x feet
2x wheels
1x assembly material
1x oil plug (E)
1x oil bottle
1x operating manual
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the
packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
