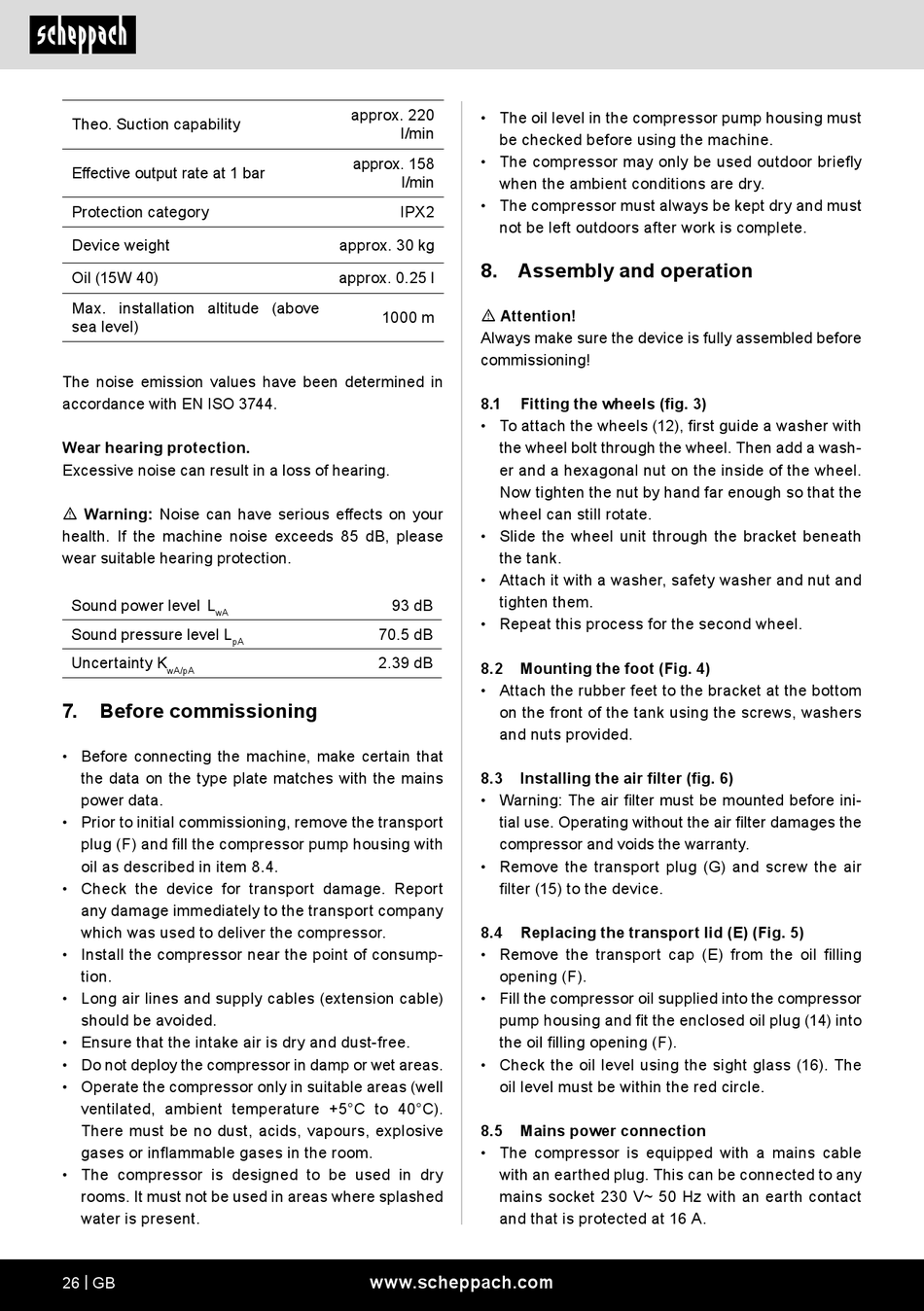

Scheppach HC54 Originalbetriebsanleitung Seite 26

Theo. Suction capability
Effective output rate at 1 bar
Protection category
Device weight
Oil (15W 40)
Max. installation altitude (above
sea level)
The noise emission values have been determined in
accordance with EN ISO 3744.
Wear hearing protection.
Excessive noise can result in a loss of hearing.
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
Sound power level L
wA
Sound pressure level L
pA
Uncertainty K
wA/pA
7. Before commissioning
• Before connecting the machine, make certain that
the data on the type plate matches with the mains
power data.
• Prior to initial commissioning, remove the transport
plug (F) and fill the compressor pump housing with
oil as described in item 8.4.
• Check the device for transport damage. Report
any damage immediately to the transport company
which was used to deliver the compressor.
• Install the compressor near the point of consump-
tion.
• Long air lines and supply cables (extension cable)
should be avoided.
• Ensure that the intake air is dry and dust-free.
• Do not deploy the compressor in damp or wet areas.
• Operate the compressor only in suitable areas (well
ventilated, ambient temperature +5°C to 40°C).
There must be no dust, acids, vapours, explosive
gases or inflammable gases in the room.
• The compressor is designed to be used in dry
rooms. It must not be used in areas where splashed
water is present.
26 | GB
approx. 220
• The oil level in the compressor pump housing must
l/min
be checked before using the machine.
• The compressor may only be used outdoor briefly
approx. 158
l/min
when the ambient conditions are dry.
• The compressor must always be kept dry and must
IPX2
not be left outdoors after work is complete.
approx. 30 kg
8. Assembly and operation
approx. 0.25 l
m Attention!
1000 m
Always make sure the device is fully assembled before
commissioning!
8.1
• To attach the wheels (12), first guide a washer with
the wheel bolt through the wheel. Then add a wash-
er and a hexagonal nut on the inside of the wheel.
Now tighten the nut by hand far enough so that the
wheel can still rotate.
• Slide the wheel unit through the bracket beneath
the tank.
• Attach it with a washer, safety washer and nut and
tighten them.
93 dB
• Repeat this process for the second wheel.
70.5 dB
2.39 dB
8.2
• Attach the rubber feet to the bracket at the bottom
on the front of the tank using the screws, washers
and nuts provided.
8.3
• Warning: The air filter must be mounted before ini-
tial use. Operating without the air filter damages the
compressor and voids the warranty.
• Remove the transport plug (G) and screw the air
filter (15) to the device.
8.4
• Remove the transport cap (E) from the oil filling
opening (F).
• Fill the compressor oil supplied into the compressor
pump housing and fit the enclosed oil plug (14) into
the oil filling opening (F).
• Check the oil level using the sight glass (16). The
oil level must be within the red circle.
8.5
• The compressor is equipped with a mains cable
with an earthed plug. This can be connected to any
mains socket 230 V~ 50 Hz with an earth contact
and that is protected at 16 A.
www.scheppach.com
Fitting the wheels (fig. 3)
Mounting the foot (Fig. 4)
Installing the air filter (fig. 6)
Replacing the transport lid (E) (Fig. 5)
Mains power connection
