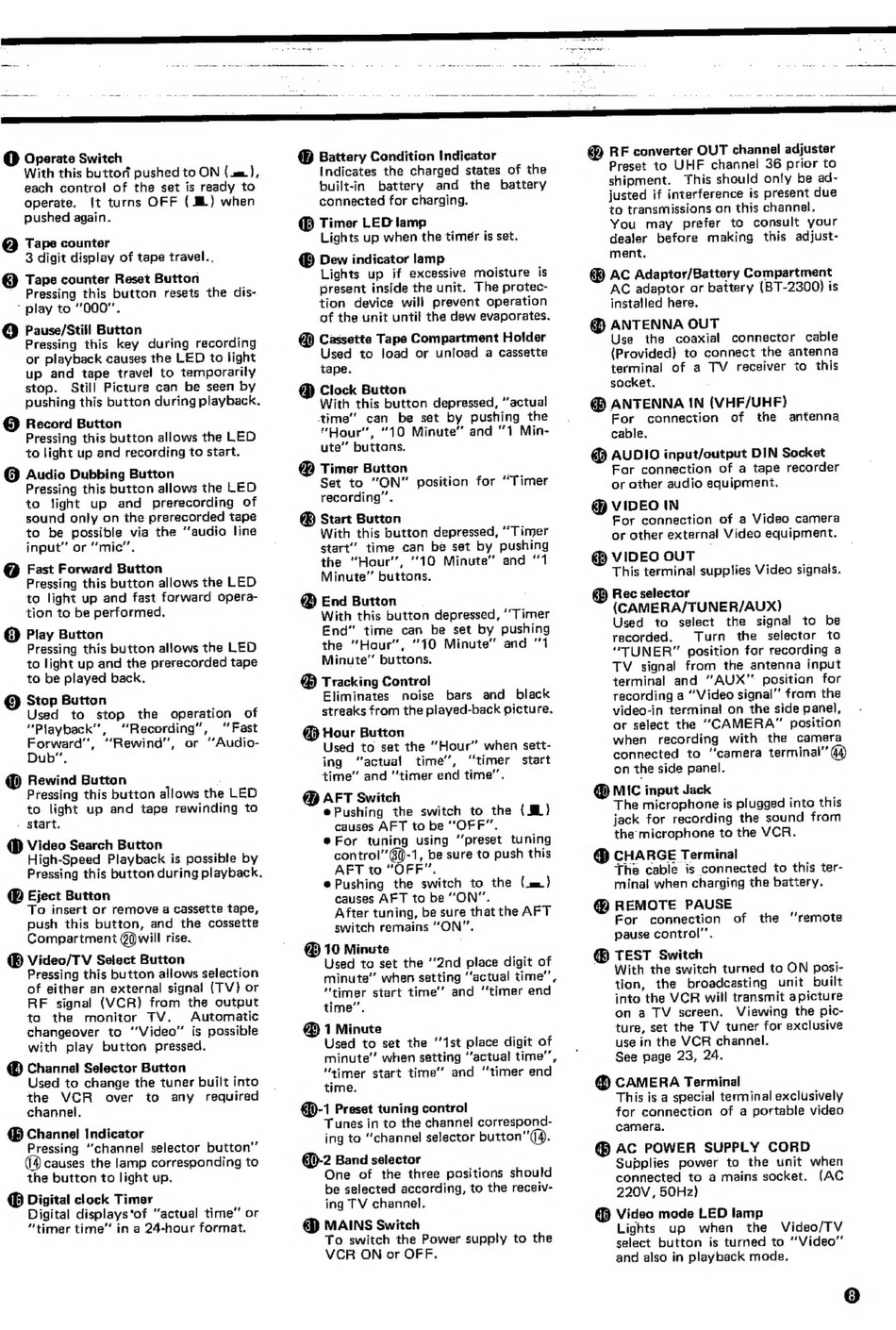

@ Operate Switch
With this buttori pushed to ON (=),
each control of the set is ready to
operate.
{t turns OFF (HL) when
pushed again.
Tape counter
3 digit display of tape travel..
@ Tape counter Reset Button
"
Pressing this button
resets the dis-
play to "000".
@ Pause/Still Button
Pressing this key during recording
or playback causes the LED to fight
up and tape travel to temporarily
stop.
Still Picture can be seen by
pushing this button during playback.
@ Record Button
Pressing this button allows the LED
to light up and recording to start.
@ Audio Dubbing Button
Pressing this button allows the LED
to
fight
up
and
prerecording
of
sound only on the prerecorded tape
to be possible via the ''audio line
input" or "mic".
@ Fast Forward Button
Pressing this button allows the LED
to light up and fast forward opera-
tion to be performed.
@ Play Button
Pressing this button allows the LED
to light up and the prerecorded tape
to be played back.
@
Stop Button
Used
to
stop
the
operation
of
"Playback'',
"Recording",
'Fast
Forward",
"Rewind",
or "Audio-
Dub".
Rewind Button
F
Pressing this button allows the LED
to light up and tape rewinding to
. Start.
«PD Video Search Button
High-Speed
Playback is possible by
Pressing this button during playback.
@ Eject Button
To insert or remove a cassette tape,
push this button, and the cossette
Compartment @Q will rise.
@® Video/TV Select Button
Pressing this button aliows selection
of either an external signal (TV} or
RF
signal (VCR)
fram the output
to
the
monitor
TV.
Automatic
changeover
to ''Video"
is possible
with
play button
pressed.
@ Channel Selector Button
Used to change the tuner built into
the
VCR
over
to
any
required
channel.
«B Channel Indicator
Pressing "channel
selector button"
(4 causes the lamp corresponding to
the button to light up.
(BP Digital clock Timer
Digital displays'of "actual time'' or
"timer time" in a 24-hour format.
@® Battery Condition Indicator
Indicates the charged states of the
built-in
battery
and
the
battery
connected for charging.
@® Timer LED lamp
Lights up when the timer is set.
® Dew indicator lamp
Lights up if excessive
moisture
is
present inside the unit. The protec-
tion
device will prevent operation
of the unit until the dew evaporates.
@) Cassette Tape Compartment Holder
Used
to load or unload a cassette
tape.
@) Clock Button
With this button depressed, "actual
-time''
can
be set by pushing
the
"Hour",
"10 Minute" and "1 Min-
ute" buttons.
@ Timer Button
.
Set to "ON"
position for "Timer
recording".
@® Start Button
With this button depressed, "Timer
start' time can be set by pushing
the "Hour",
10
Minute'
and '1
Minute' buttons.
@ End Button.
With this button depressed, 'Timer
End"
time
can be set by pushing
the "Hour",
"10 Minute"
and '1
Minute' buttons.
@® Tracking Control
Eliminates
noise
bars
and
black
streaks from the played-back picture,
@} Hour Button
Used to set the "Hour" when sett-
ing
"actual
time',
"timer
start
time" and "timer end time".
& AFT Switch
Pushing
the switch to the { SL)
causes AFT to be "OFF".
®For
tuning using "'preset tuning
control' @Q)-1, be sure to push this
AFT to "OFF".
Pushing
the switch to the (m=)
causes AFT to be "ON".
After tuning, be sure that the AFT
switch remains "ON",
10 Minute
Used to set the '2nd place digit of
minute" when setting ''actual time',
"timer start time' and "timer end
time".
@ 1 Minute
Used to set the '1st place digit of
minute" when setting 'actual time',
"timer start time' and "timer end
time.
@)-1 Preset tuning control
Tunes in to the channel correspond-
ing to "channel selector button''(4.
@)-2 Band selector
One
of the three positions should
be selected according, to the receiv-
ing TV channel.
) MAINS Switch
To switch the Power supply to the
VCR ON or OFF.
@® AC Adaptor/Battery Compartment
AC adaptor or battery (BT-2300) is
installed here.
@} ANTENNA OUT
Use
the
coaxial
connector
cable
(Provided) to connect the antenna
terminal
of a TV
receiver to this
socket.
@® ANTENNA
IN (VHF/UHF)
For
connection
of
the
antenna
cable.
@ VIDEO IN
For connection
of a Video camera
or other external Video equipment.
@ VIDEO OUT
This terminal supplies Video signals.
Rec selector
(CAMERA/TUNER/AUX)
Used
to
select
the
signal
to
be
recorded.
Turn
the
selector
to
"TUNER"
position for recording a
TV
signal from the antenna input
terminal
and
"AUX""
position
for
recording a "Video signal" fram the
video-in termina! on the side panel,
or select the "CAMERA"
position
when
recording
with
the
camera
connected
to "camera
terminal' @)
on the side panel.
@ MIC input Jack
The microphone is plugged into this
jack for recording the sound from
the microphone te the VCR.
@ CHARGE Terminal
The cable is connected to this ter-
minal when charging the battery.
@® REMOTE
PAUSE
For
connection
of
the
"remote
pause control".
@® TEST Switch
With the switch turned to ON posi-
tion,
the
broadcasting
unit
built
into the VCR will transmit apicture
on a TV screen.
Viewing the pic-
ture, set the TV tuner for exclusive
use in the VCR channel.
See page 23, 24.
@ CAMERA Terminal
This is a special terminal exclusively
for connection
of a portable video
camera.
@ Ac POWER SUPPLY CORD
Supplies
power
to the unit when
connected
to a mains socket.
(AC
220V
, 50Hz)
@) Video mode LED lamp
Lights
up
when
the
Video/TV
select button
is turned to "Video"
and also in playback mode.
