Technical Data

Pin assignment

14.10 Device Dimensions

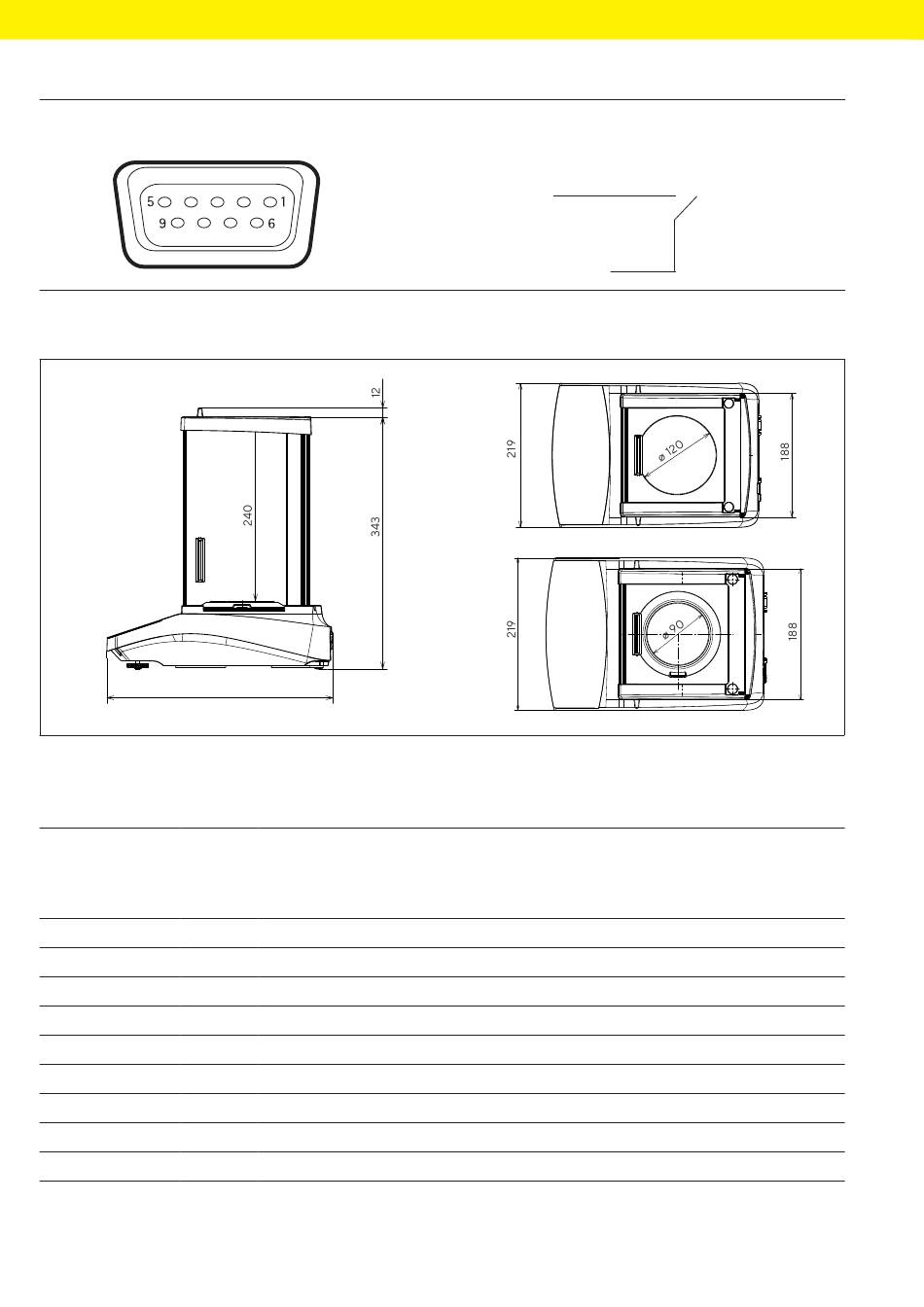

Fig. 9: Device dimensions precision balance in mm

14.11 Gross Weight

II Advanced Line Operating Instructions

Pin 1: Not assigned

Pin 2: Data output (TxD)

Pin 3: Data input (RxD)

Pin 4: Not assigned

Pin 5: Internal ground

Pin 6: Not assigned

Pin 7: Clear to Send (CTS)

Pin 8: Request to Send (RTS)

Pin 9: Universal remote switch

Devices with internal

calibration and

adjustment function (I-x)

Devices without internal

calibration and

adjustment function

Conformity-assessed

devices without internal

calibration and

adjustment function
