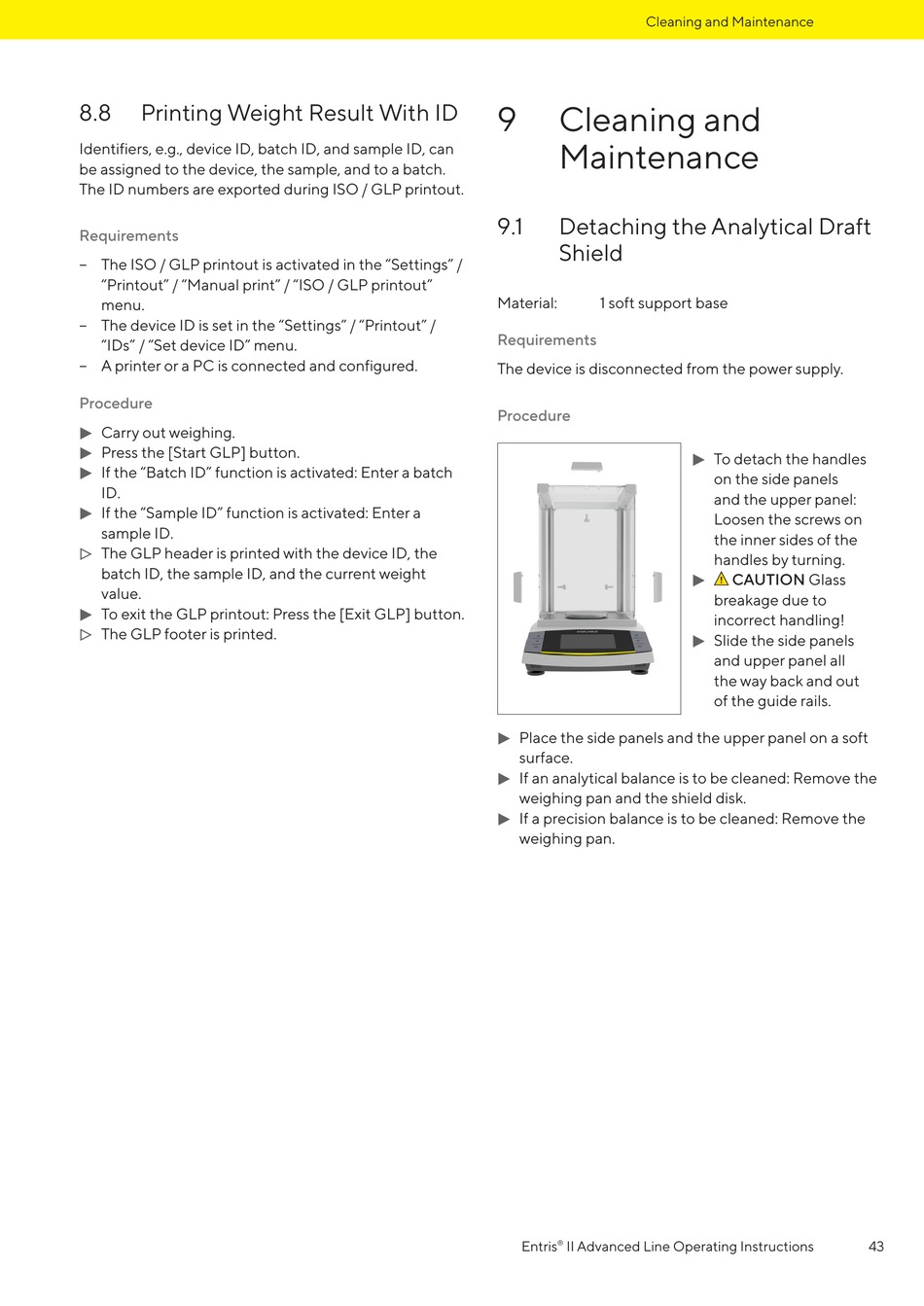

Sartorius Entris II Advanced Line Serie Betriebsanleitung Seite 43

8.8 Printing Weight Result With ID
Identifiers, e.g., device ID, batch ID, and sample ID, can
be assigned to the device, the sample, and to a batch.
The ID numbers are exported during ISO / GLP printout.
Requirements
− The ISO / GLP printout is activated in the "Settings" /
"Printout" / "Manual print" / "ISO / GLP printout"
menu.
− The device ID is set in the "Settings" / "Printout" /
"IDs" / "Set device ID" menu.
− A printer or a PC is connected and configured.
Procedure
Carry out weighing.
t
Press the [Start GLP] button.
t
If the "Batch ID" function is activated: Enter a batch
t
ID.
If the "Sample ID" function is activated: Enter a
t
sample ID.
The GLP header is printed with the device ID, the
y
batch ID, the sample ID, and the current weight
value.
To exit the GLP printout: Press the [Exit GLP] button.
t
The GLP footer is printed.
y
Cleaning and Maintenance
9 Cleaning and
Maintenance
9.1 Detaching the Analytical Draft
Shield
Material: 1 soft support base
Requirements
The device is disconnected from the power supply.
Procedure
Place the side panels and the upper panel on a soft
t
surface.
If an analytical balance is to be cleaned: Remove the
t
weighing pan and the shield disk.
If a precision balance is to be cleaned: Remove the
t
weighing pan.
Entris II Advanced Line Operating Instructions
®
To detach the handles
t
on the side panels
and the upper panel:
Loosen the screws on
the inner sides of the
handles by turning.
CAUTION Glass
t
breakage due to
incorrect handling!
Slide the side panels
t
and upper panel all
the way back and out
of the guide rails.
43
