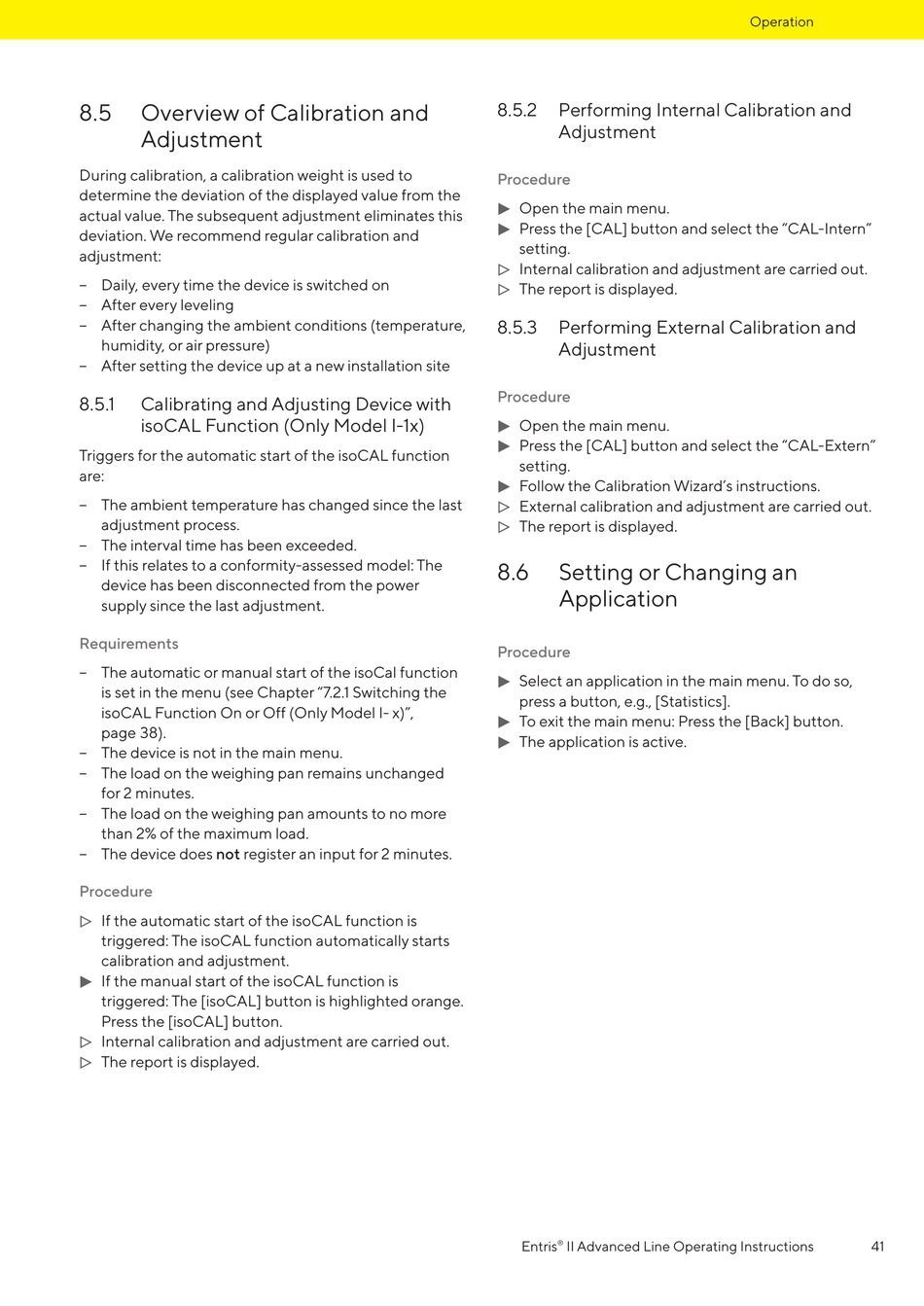

8.5
Overview of Calibration and
Adjustment
During calibration, a calibration weight is used to
determine the deviation of the displayed value from the
actual value. The subsequent adjustment eliminates this
deviation. We recommend regular calibration and
adjustment:
− Daily, every time the device is switched on
− After every leveling
− After changing the ambient conditions (temperature,
humidity, or air pressure)
− After setting the device up at a new installation site
8.5.1
Calibrating and Adjusting Device with
isoCAL Function (Only Model I-1x)
Triggers for the automatic start of the isoCAL function
are:
− The ambient temperature has changed since the last
adjustment process.
− The interval time has been exceeded.
− If this relates to a conformity-assessed model: The
device has been disconnected from the power
supply since the last adjustment.
Requirements
− The automatic or manual start of the isoCal function
is set in the menu (see Chapter "7.2.1 Switching the
isoCAL Function On or Off (Only Model I- x)",
page 38).
− The device is not in the main menu.
− The load on the weighing pan remains unchanged
for 2 minutes.
− The load on the weighing pan amounts to no more
than 2% of the maximum load.
− The device does not register an input for 2 minutes.
Procedure
If the automatic start of the isoCAL function is
y
triggered: The isoCAL function automatically starts
calibration and adjustment.
If the manual start of the isoCAL function is
t
triggered: The [isoCAL] button is highlighted orange.
Press the [isoCAL] button.
Internal calibration and adjustment are carried out.
y
The report is displayed.
y
8.5.2
Performing Internal Calibration and
Adjustment
Procedure
Open the main menu.
t
Press the [CAL] button and select the "CAL-Intern"
t
setting.
Internal calibration and adjustment are carried out.
y
The report is displayed.
y
8.5.3
Performing External Calibration and
Adjustment
Procedure
Open the main menu.
t
Press the [CAL] button and select the "CAL-Extern"
t
setting.
Follow the Calibration Wizard's instructions.
t
External calibration and adjustment are carried out.
y
The report is displayed.
y
8.6
Setting or Changing an
Application
Procedure
Select an application in the main menu. To do so,
t
press a button, e.g., [Statistics].
To exit the main menu: Press the [Back] button.
t
The application is active.
t
Entris
II Advanced Line Operating Instructions
®
Operation
41
