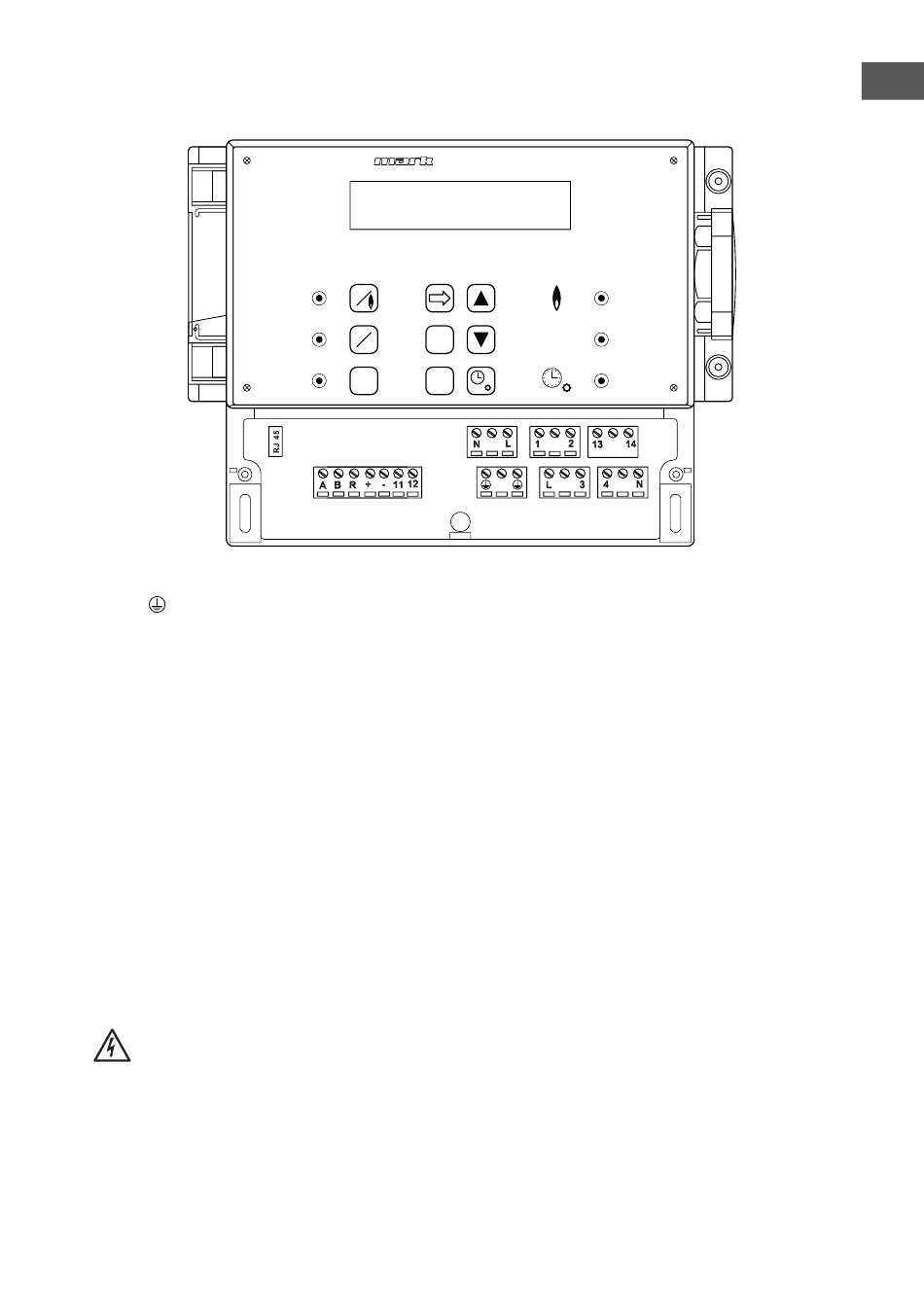

9.0 PinTherm Infra Connect connections
L N Connection terminals (230Vac/50Hz)
L - 1 Heating
L - 3 High/low
2 - N Fault signal
4 - N Reset
13 - 14 Contact external fan
11 - 12 External room sensor
A - B MODBUS RTU (R ground)
RJ 45 connector Internet / Modbus TCP/IP
Warning: Dangerous voltage present on N, L, 1, 2, 3, 4, 13 and 14
With the PinTherm Infra Connect, only devices that comply with the safety regulations as laid
down in EN-IEC 61010-1 may be controlled.
PinTherm Infra Connect
06.29.109
MON 08:01 18ºC
1K DAY X:060
0
I
OK
II
ESC
RESET
II
EN
