3 Installation/connection/setting up
38
3. Mechanical installation
3.1 Installation

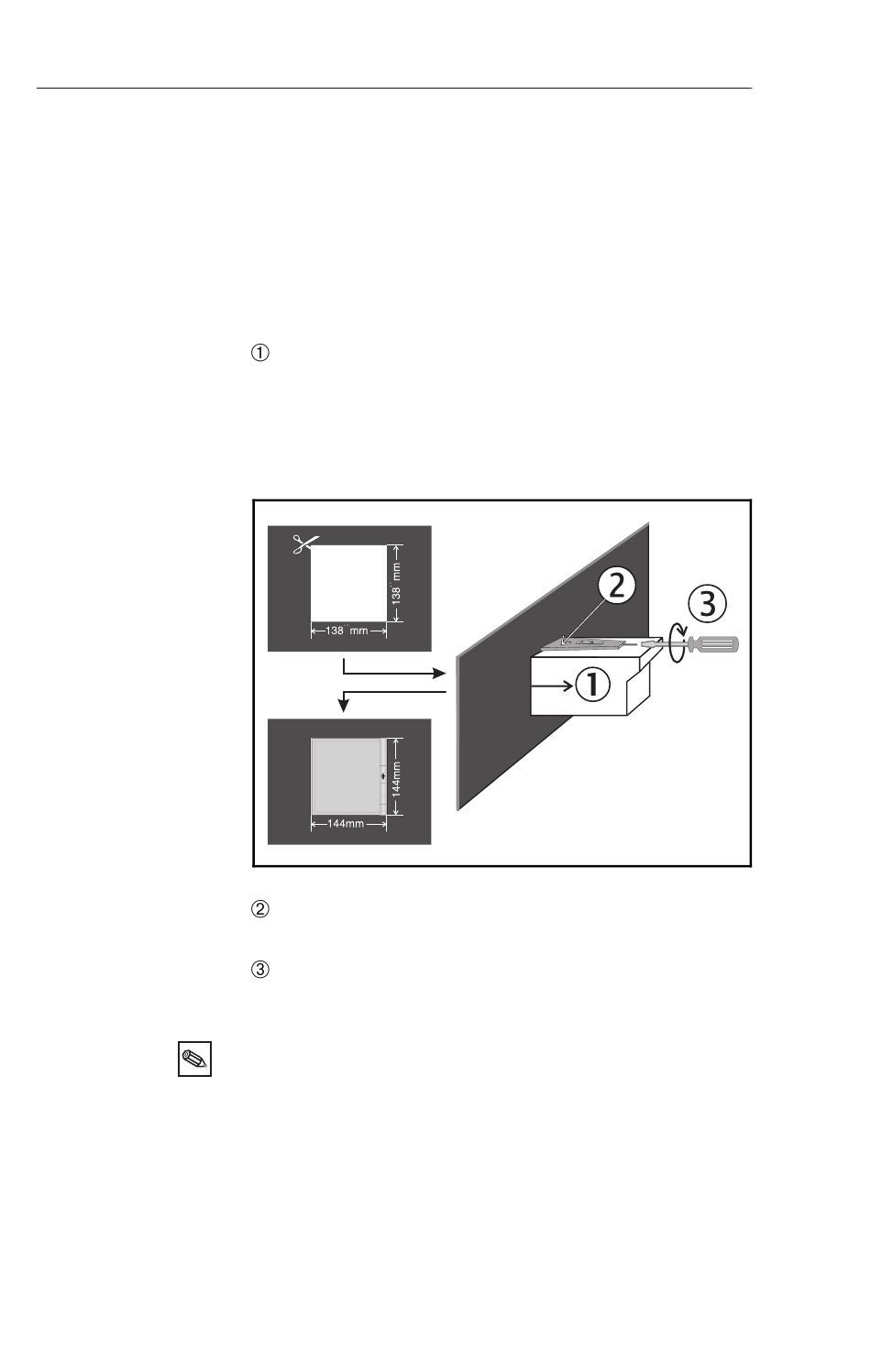

Prepare the required panel cutout:
+1
size 138 mm x 138
The unit depth is approx. 215 mm.
Push the unit through the front of the panel cutout.
Please make sure that there is at least 15 mm space
between the right hand edge of the cutout and walls or
other protruding components/items (paper change). In
order to avoid overheating we recommend a rear
spacing of >= 10 mm
Hold the unit horizontally and fix the jackscrews into
their respective slots (top/bottom or left/right).
Tighten the jackscrews evenly using a screwdriver.
Hint:
Further support is only required if the panel material is
very thin.
+1
mm (to DIN 43700).
