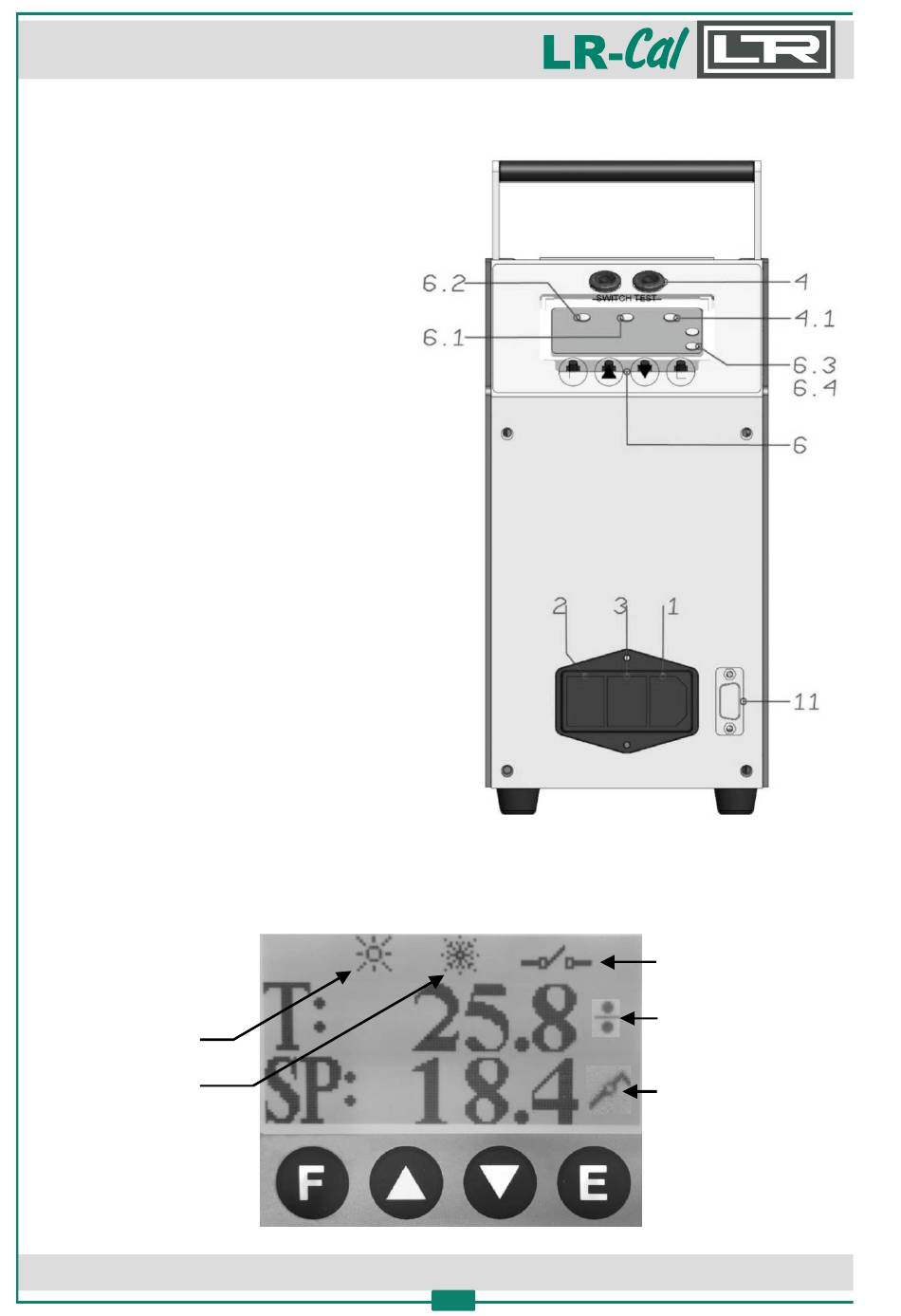

4.2 Opera�on and display elements
(1) Power supply socket
(2) Main switch
(3) Protec�on fuse
(4) Switch/Thermostat test sockets
(4.1) Indica�on of switch status
„open/closed" of the
connected switch/thermostat
(6) Keypad and LC display
Display row 1: Temperature
(of the internal temperature sensor)
Display row 2: Set point value
Key : Func�on input F
Key : Increase the displayed value
▲
Key : Decrease the displayed value
▼
Key : Confirm the value ("Enter") E
(6.1) Cooling: flashes during ac�ve cooling
(6.2) Hea�ng: flashes during hea�ng
(6.3) Indica�on of stability
Flashes when the calibrator has reached the
set temperature and stabilized
(6.4) Ramp func�on indica�on
Flashes when the ramp func�on is ac�ve
("RUN")
(11) RS232 interface
(as an accessory, an USB converter is available)
Display messages:
(6.2)
Hea�ng
(6.1)
Cooling
Tel. +49 (0) 7121-90920-0 • Fax +49 (0) 7121-90920-99 •
PYROS 140-1L + LR- Cal
PYROS 375-DNV + LR- Cal
DRUCK & TEMPERATUR Leitenberger GmbH • Bahnhofstr. 33 • D-72138 Kirchentellinsfurt • GERMANY
PYROS 140-2L
PYROS 650-DNV
DT -Info@Leitenberger.de •
46
(4.1)
Sw itch/
thermostat
status
(6.3)
Stability
(6.4)
Ramp
