5 Description of the machine
5.1 Machine structure
1
2
3
4
5
6
7
8

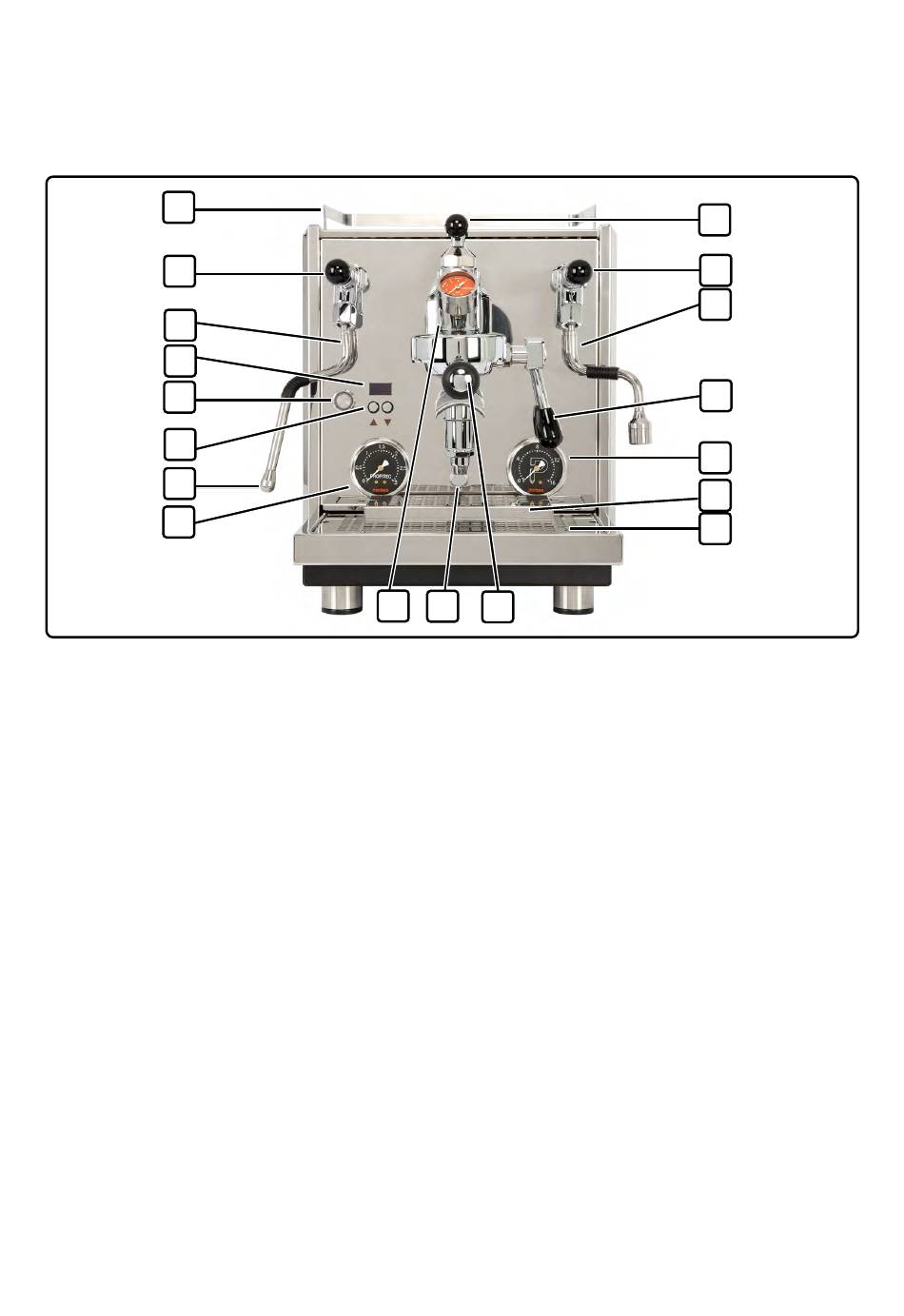

Fig. 1 Structure and components
1 Cup tray; water tank below with water
filter adapter for receiving a water filter
cartridge
2 Steam tilt valve for drawing hot steam
3 Steam wand with rubber handle
4 Display for showing and configuring
settings
5 On/off button with power indicator (LED
ring)
6 Navigation buttons
7 Steam nozzle for dispensing hot steam
DRIVE_BA_V2.0
9 10
11
8 Boiler pressure gauge
9 Brew group with brew pressure gauge
10 Residual water outlet of brew group
11 Portafilter, here with 2 spouts
12 Drip tray with grid
13 Cup raiser for espresso cups
14 Pump pressure gauge
15 Brew lever for pulling espressos
16 Water wand with rubber handle
17 Water tilt valve for drawing hot water
18 Flow control with stainless steel bell
18
17
16
15
14
13
12
