4. NOMENCLATURE

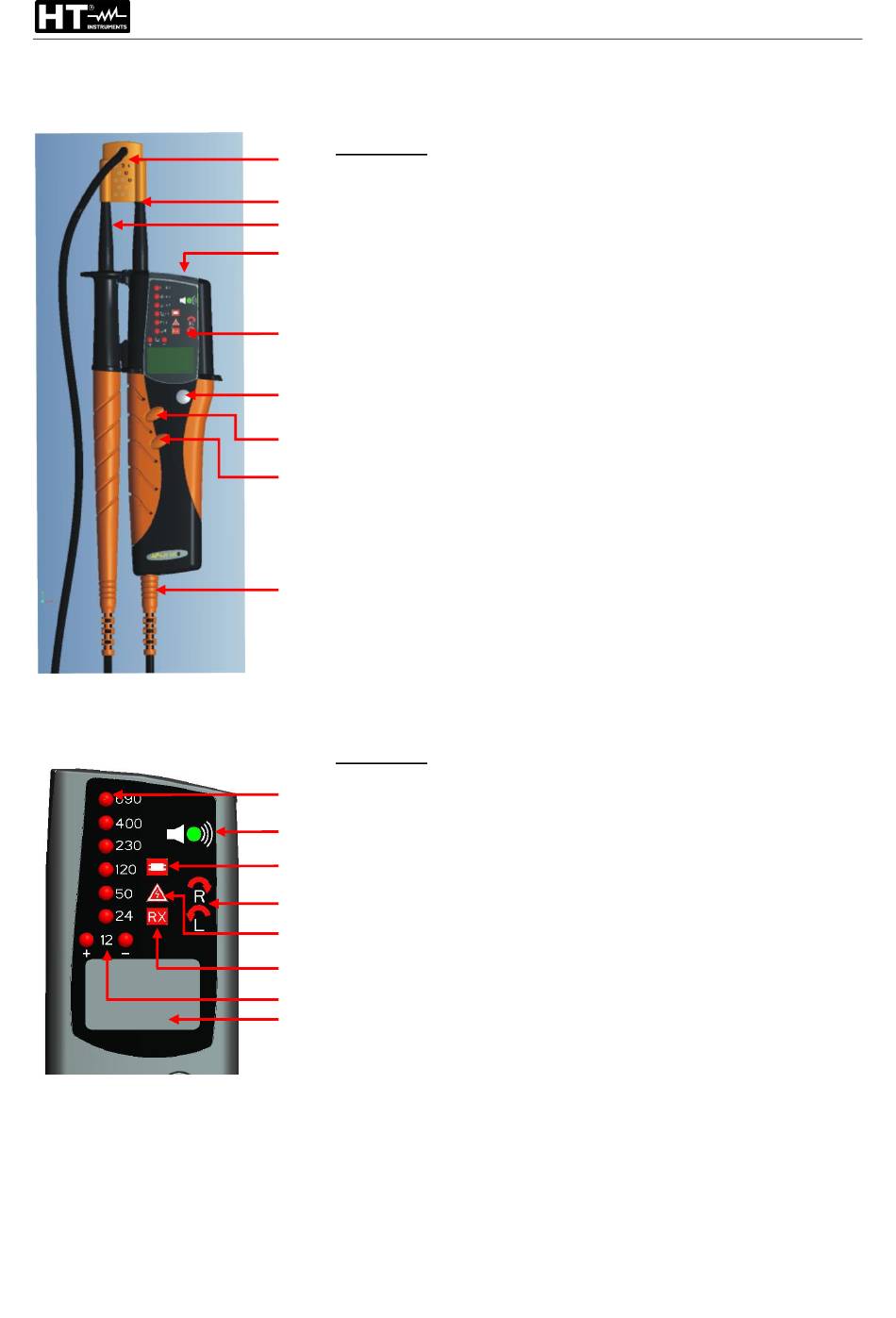

4.1. INSTRUMENT DESCRIPTION
CAPTION:
1
1. Protective cap
2. Fixed lead L2
2
3. Mobile lead L1
3
4. Torch light
4
5. LED and Display
6. Electrode
continuity function
7. "Torch" button
5
8. "Lamp test" button (HT9) / ON/Reset button (HT6,
HT8)
6
9. Banana connector
7
8
9
Fig. : 1: Instrument description
CAPTION:
1. Voltage indication LED
1
2. Buzzer hole for acoustic signal
3. Indication LED Lamp test
2
4. Indication LED Phase sequence
3
5. Indication LED Phase detection / Dangerous voltage
6. Indication LED Continuity test
4
7. Indication LED 12V and positive or negative polarity
5
8. LCD display with voltage, polarity and flat battery
indication
6
7
8
Fig. 2: LED and display description
EN - 5
for phase detection, phase rotation,
HT6 - HT8 - HT9
