Initial Operation - Scheppach 19017 03902 Originalbetriebsanleitung

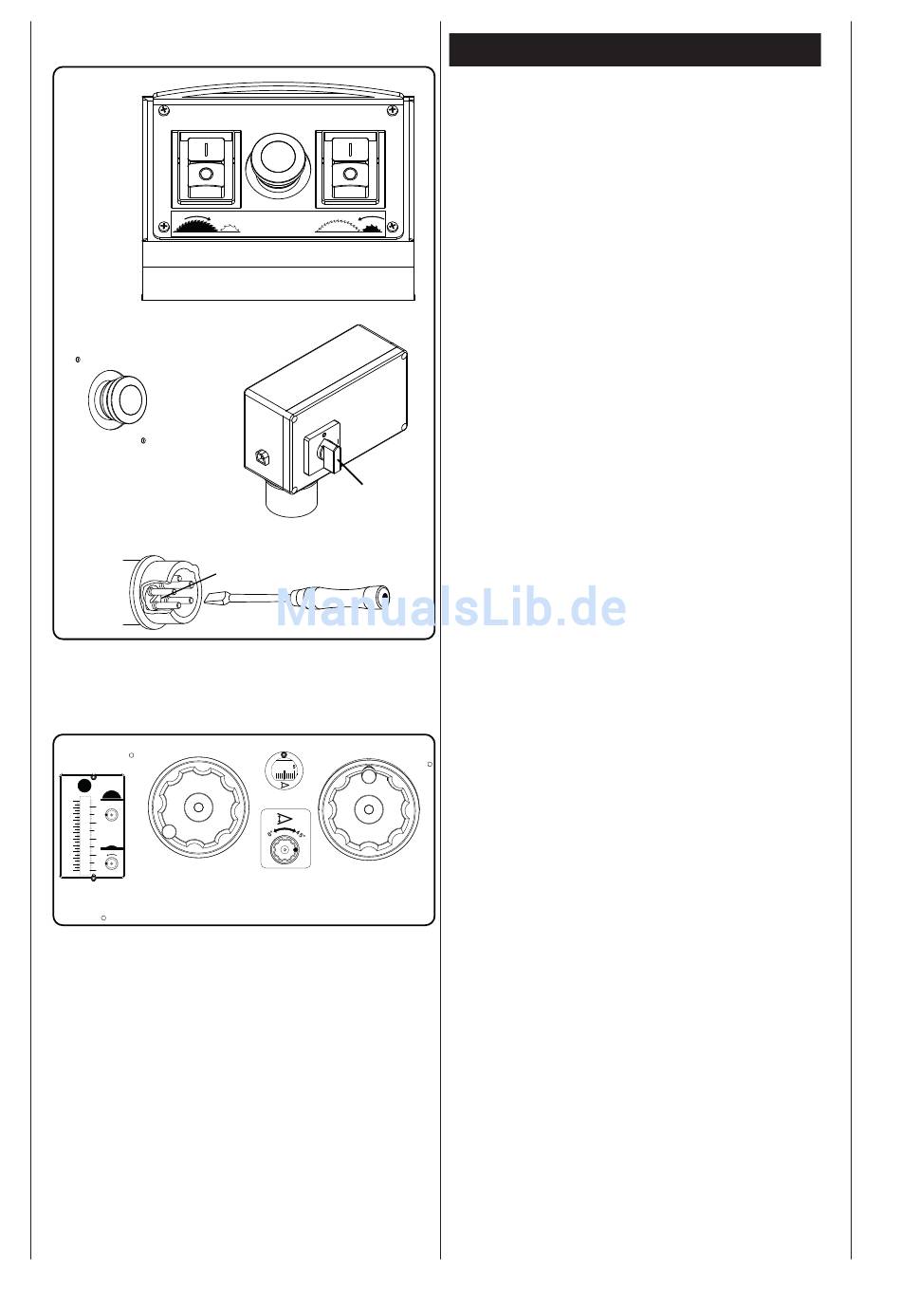

Fig. Q
1
6
5
Fig. R
315
mm
mm inch
110 +
4
100
90
80
3
70
60
50 2
40
-
30
1
20
10
0 0
2
3
4
0°

Initial Operation

Read and follow the safety instructions prior to initial
operation.
All safety and auxiliary equipment must be installed (tighten
saw blaw).
Connect your panel sizing circular saw to the power supply
and it is ready for operation.
Note:
The manufacturer of this machine shall not be held liable for
damage to this machine or resulting from use of this machine
which result from:
• improper use
• noncompliance with the operating instructions
• repairs made by unauthorized third parties / technicians
• installation and replacement of spare parts other than
genuine scheppach spare parts.
• operation which does not comply with the conditions for
"proper use"
• power failures in the electric power supply system,
noncompliance with applicable electric regulations and
VDE requirements 01 00, DIN 57113 / VDE 01 13.
Switch,
Fig. Q
1 – On/off switch saw blade
2 – EMERGENCY STOP (only with pre-cutter)
3 – On/off switch pre-cutter
4 – Main switch (only with 4,8kW motor)
5 – Phase turner (check the sense of rotation upon
connection or relocation, alternately change the polarity.
Saw Blade Vertical Adjustment
Saw Blade Angle Adjustment, Fig. R
• To adjust blade height turn the handwheel manually
counterclockwise or clockwise.
• Read out the set cutting height on the left scale with saw
blade ø 315 mm.
• Saw blade ø 315 mm = cutting height of 0 – 110 mm
• Angular adjustment is carried out by simply turning hand
wheel 2 to the left or to the right.
• For angular adjustment saw blade (max. 45°)
• Set the required cutting angle by turning the hand wheel.
• Reset the hand wheel to the end stop for resetting on 0°.
english 26
