Assembly
Always disconnect the power supply plug before doing any
assembly or conversion work.
For packing reasons your panel sizing circular saw is only
partly assembled at delivery.
Assembly Tools
Scope of delivery includes:
1 single-head wrench
1 single-head wrench
1 hexagonal
head wrench
1 hexagonal
head wrench

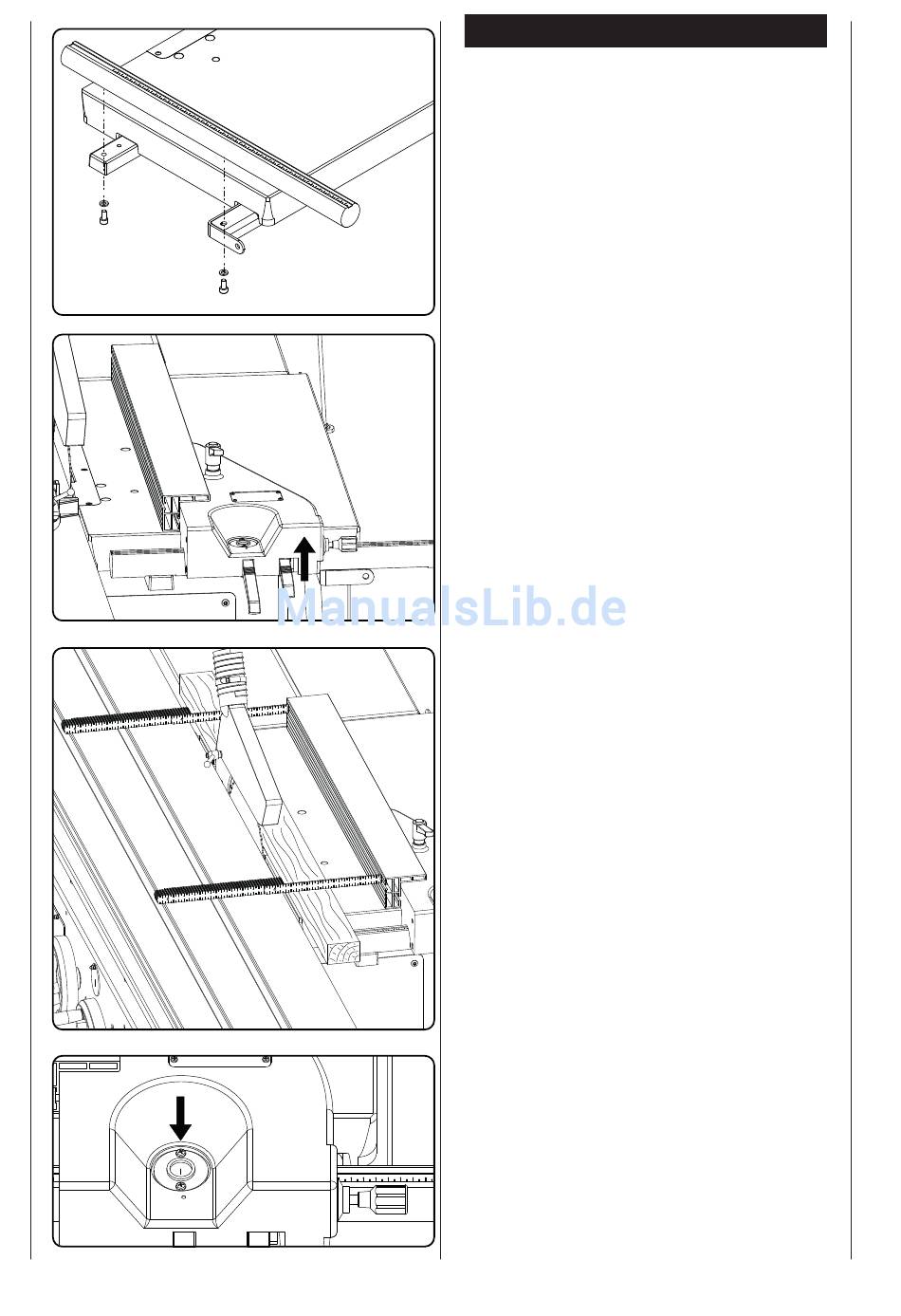

Longitudinal stop, Fig. A
Screw the guide shaft on both shaft supports, do not tigh-
ten them yet.
2 discs 8
2 cylinder screws M 8 x 16
Fig. B
Pull both clamp levers upwards and locate the skid on the
shaft.
Longitudinal stop - adjustment, Fig. C
Locate a straight, approx. 600 to 800 mm long guide rail
to the saw blade to adjust the longitudinal stop precise-
ly. Align the stop by measuring and adjusting the stop
several times (X).
Tighten both cylinder screws now.
Adjust microfilm reading glass D
Position the stop rail against the saw blade and clamp the
eccentric lever. Loosen the attachment bolts of the
microfilm reading glass and set the graduation mark exactly
above the zero line of the scale, subsequently fasten both
screws again
Important!
Use a measuring rod with cutting widths under 120 mm.
19 mm span
30 mm span
5 mm span
6 mm span
