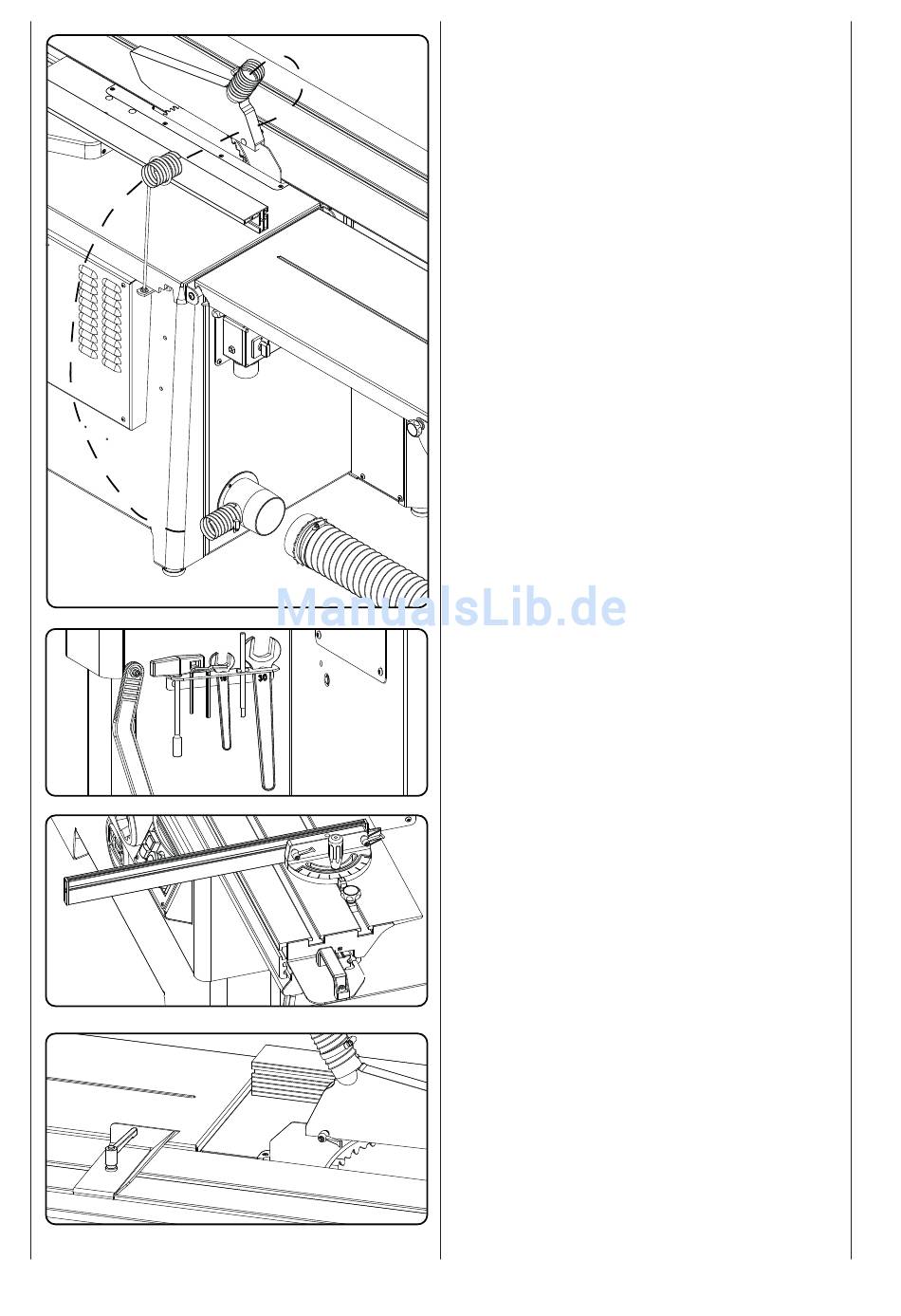

Suction hose, Fig. I
Mount fastening plate for hose support on side of the
machine. Guide suction hose ø50 through the supporting
bar, connect both ends and attach by means of the hose
brackets.
Suction connections
Put the suction connections of the suction installation on
the backside of the throw-off pipe.
Tool holder, Fig. J
Place the tool kit for the panel sizing circular saw in the
tool holder for easy access.
Cross cutter, Fig. K
The cross cutter can be attached to the sliding table.
The continuous swivel range amounts to 60° at both sides
and is fixated with the clamping device.
Trimming device, Fig. L
Attach the trimming device on the upper side of the sliding
table.
Push the piece of work against the trimming device by
means of the cross cutter
