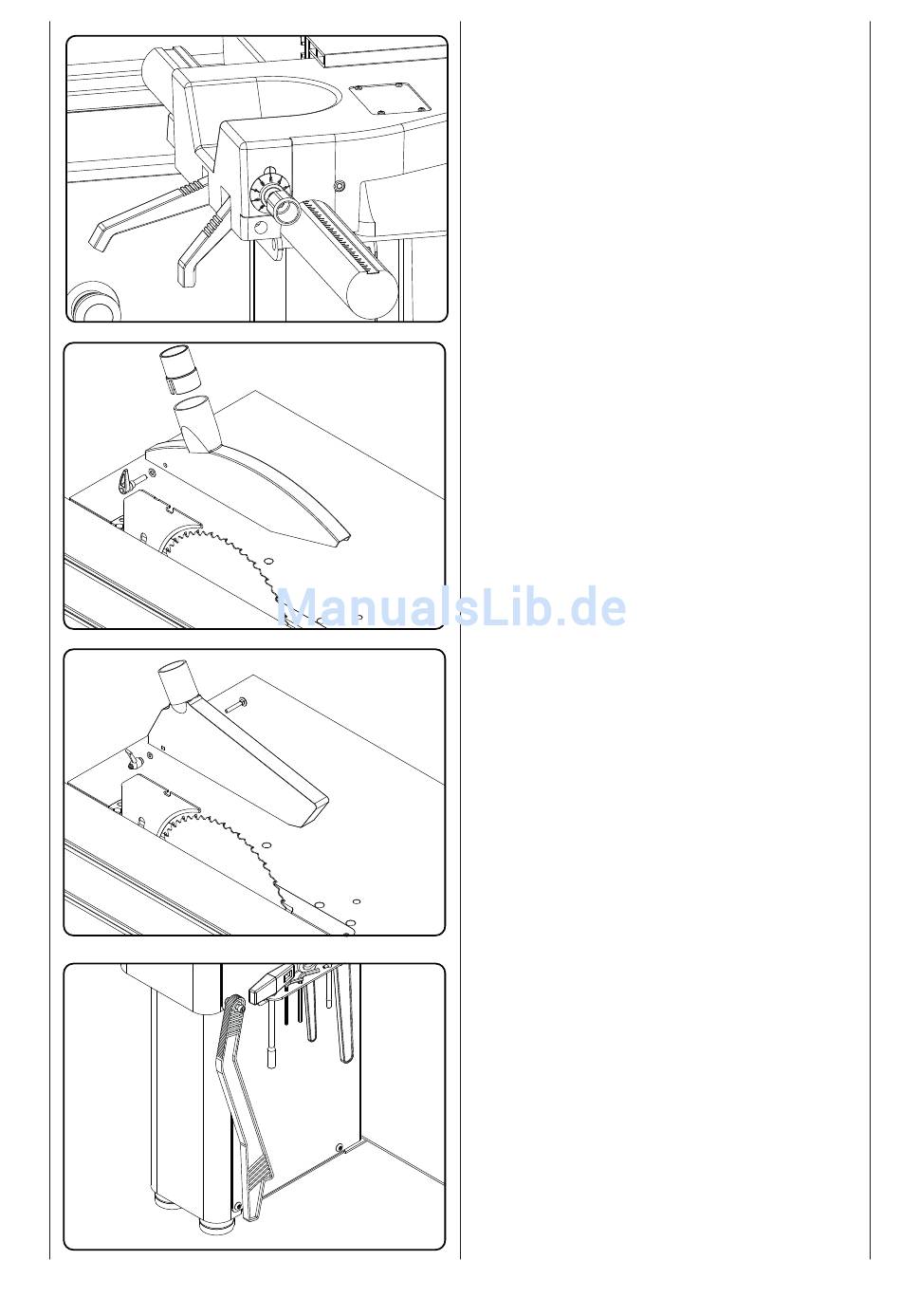

Fine adjustment, Fig. E
The fine adjustment is carried out by means of the
adjustment spindle (3) with eccentric lever (1) locked and
eccentric lever (2) opened.
Suction hood – with pre-cutter, Fig. F
Screw the round-head screw M 8 x 40 with disc and
clamping lever in the suction hood. Tighten the suction
hood onto the splitting wedge.
Suction hood – without pre-cutter, Fig. G
Screw the round-head screw M 6 x 40 with disc and
clamping lever in the suction hood. Tighten the suction
hood onto the splitting wedge.
IMPORTANT! The suction hood must be lowered onto the work
piece with each process step.
Measuring rod, Fig. H
Hang the measuring rod up on the provided screw under
the sliding table.
Use a measuring rod when slitting small work pieces
(smaller than 120 mm).
