Scheppach 19017 03902 Originalbetriebsanleitung Seite 30

Fig. M
Fig. N
Fig. O
Fig. P1
2
1
25 english
1

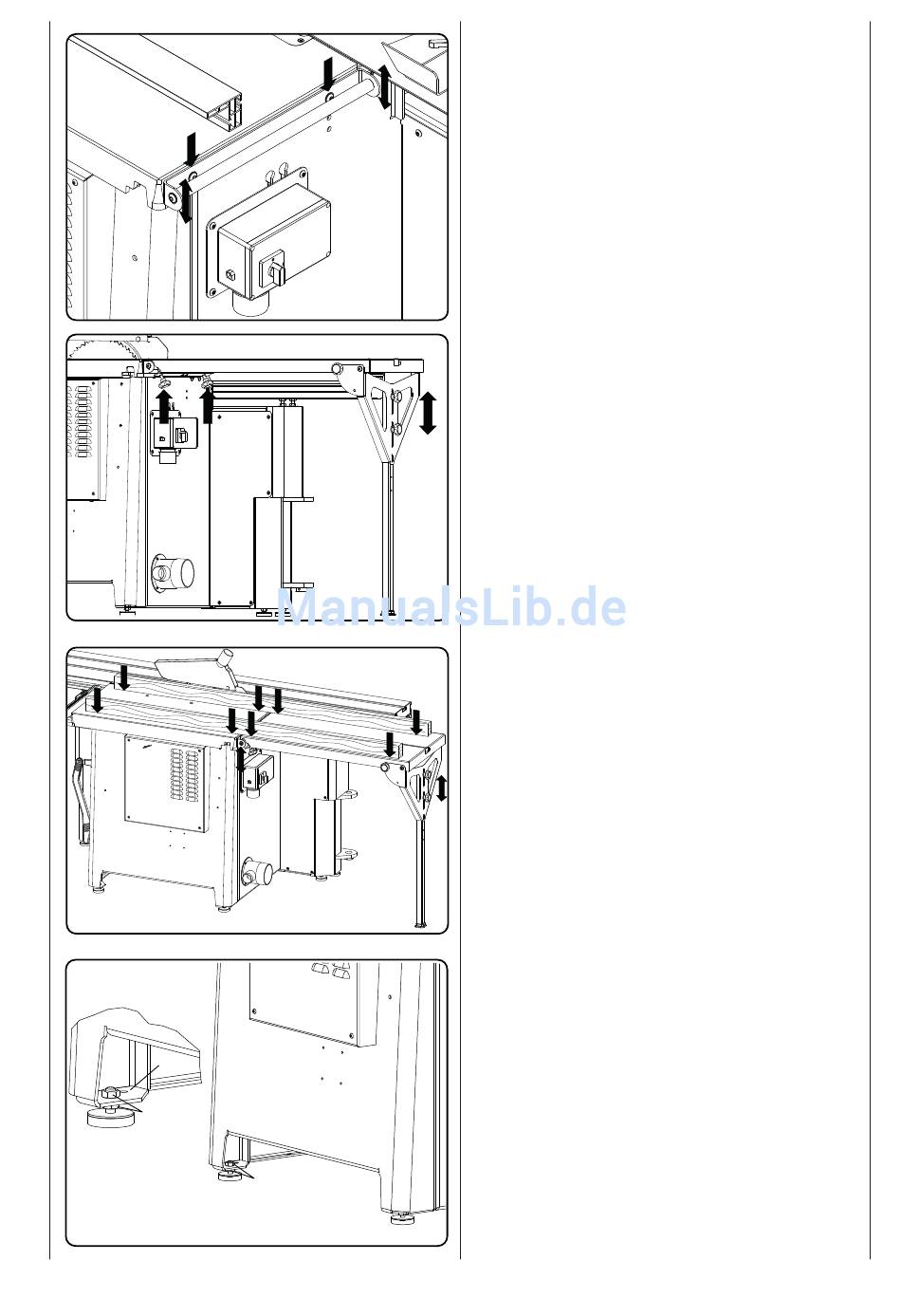

Table extension, Fig. M
Attach the suspension bracket for the table extension to
the machine. Subsequently screw on the suspension rod
and tighten this by hand only.
4 Flange screws
Fig. N
Open the support base and put the table extension onto
the suspension rod. Turn in the handles into the suspension
profile for safety. Readjust the opened support base until
the table extension is parallel to the sawing tabletop.
Fig. O
Adjust the table extension evenly with two straight wooden
slats or similar table extension to the sawing table and
tighten the suspension spindle strongly.
Your format circular saw is now mounted.
Mounting and adjusting Fig. P1 - P2 (Page 27)
Make sure your Scheppach format circular saw
is mounted on solid ground level and stable.
Balance floor unevenness.
For this purpose on the adjustment feet
• loosen the hexagon nut (1)
• carry out the height compensation
• tighten the hexagon nut (1)
We advise you to attach the machine to the floor.
Therefore boreholes are provided next to the rubber buffers.
(2)
Forsa 9:
The machine must be attached to the floor
M8x20
