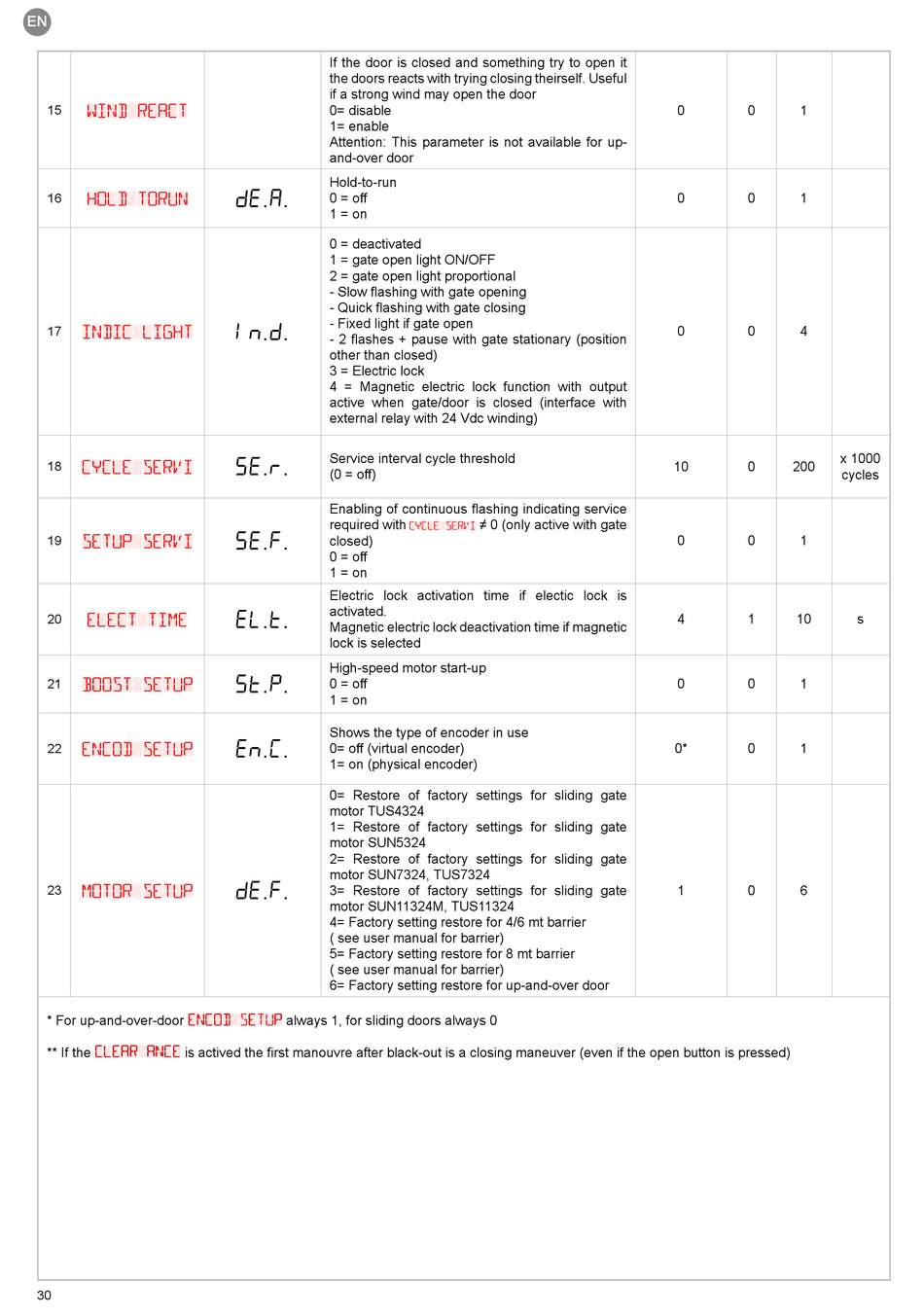

* For up-and-over-door
** If the is actived the first manouvre after black-out is a closing maneuver (even if the open button is pressed)
30
If the door is closed and something try to open it
the doors reacts with trying closing theirself. Useful
if a strong wind may open the door
0= disable
1= enable
Attention: This parameter is not available for up-
and-over door
Hold-to-run
de.a.
0 = off
1 = on
0 = deactivated
1 = gate open light ON/OFF
2 = gate open light proportional
- Slow flashing with gate opening
- Quick flashing with gate closing
- Fixed light if gate open
IN.D.
- 2 flashes + pause with gate stationary (position
other than closed)
3 = Electric lock
4 = Magnetic electric lock function with output
active when gate/door is closed (interface with
external relay with 24 Vdc winding)
Service interval cycle threshold
se.r.
(0 = off)
Enabling of continuous flashing indicating service
required with
se.f.
closed)
0 = off
1 = on
Electric lock activation time if electic lock is
activated.
EL.T.
Magnetic electric lock deactivation time if magnetic
lock is selected
High-speed motor start-up
ST.P.
0 = off
1 = on
Shows the type of encoder in use
En.C.
0= off (virtual encoder)
1= on (physical encoder)
0= Restore of factory settings for sliding gate
motor TUS4324
1= Restore of factory settings for sliding gate
motor SUN5324
2= Restore of factory settings for sliding gate
motor SUN7324, TUS7324
DE.F.
3= Restore of factory settings for sliding gate
motor SUN11324M, TUS11324
4= Factory setting restore for 4/6 mt barrier
( see user manual for barrier)
5= Factory setting restore for 8 mt barrier
( see user manual for barrier)
6= Factory setting restore for up-and-over door
always 1, for sliding doors always 0
≠ 0 (only active with gate
0 0 1
0 0 1
0 0 4
x 1000
10 0 200
cycles
0 0 1
4 1 10
0 0 1
0* 0 1
1 0 6
s
