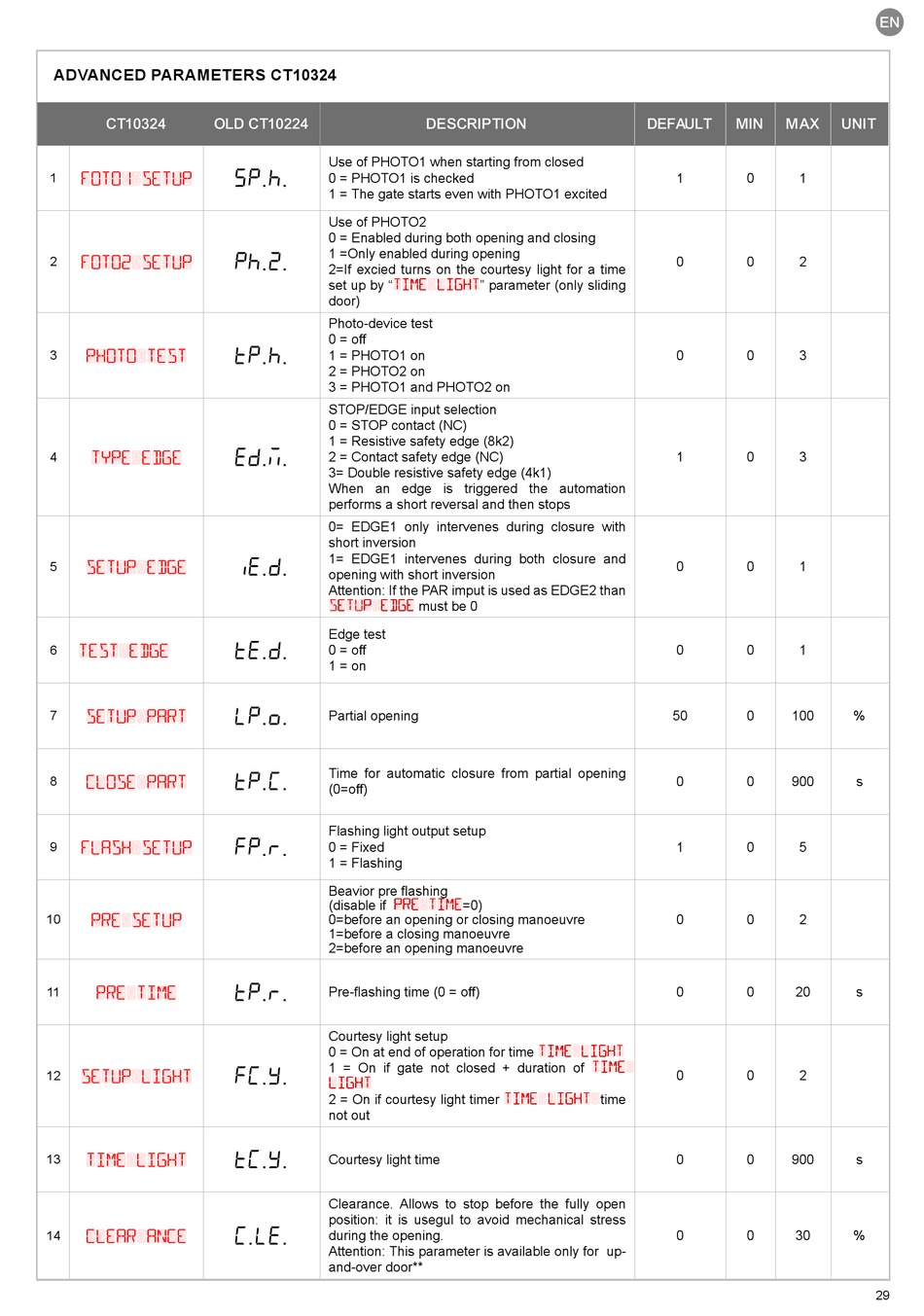

ADVANCED PARAMETERS CT10324
CT10324 OLD CT10224
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Use of PHOTO1 when starting from closed
SP.h.
0 = PHOTO1 is checked
1 = The gate starts even with PHOTO1 excited
Use of PHOTO2
0 = Enabled during both opening and closing
1 =Only enabled during opening
Ph.2.
2=If excied turns on the courtesy light for a time
set up by "
door)
Photo-device test
0 = off
tP.h.
1 = PHOTO1 on
2 = PHOTO2 on
3 = PHOTO1 and PHOTO2 on
STOP/EDGE input selection
0 = STOP contact (NC)
1 = Resistive safety edge (8k2)
Ed.m.
2 = Contact safety edge (NC)
3= Double resistive safety edge (4k1)
When an edge is triggered the automation
performs a short reversal and then stops
0= EDGE1 only intervenes during closure with
short inversion
1= EDGE1 intervenes during both closure and
iE.D.
opening with short inversion
Attention: If the PAR imput is used as EDGE2 than
Edge test
tE.D.
0 = off
1 = on
LP.o.
Partial opening
Time for automatic closure from partial opening
TP.C.
(0=off)
Flashing light output setup
FP.r.
0 = Fixed
1 = Flashing
Beavior pre flashing
(disable if
0=before an opening or closing manoeuvre
1=before a closing manoeuvre
2=before an opening manoeuvre
tP.r.
Pre-flashing time (0 = off)
Courtesy light setup
0 = On at end of operation for time
1 = On if gate not closed + duration of
FC.Y.
2 = On if courtesy light timer
not out
tC.Y.
Courtesy light time
Clearance. Allows to stop before the fully open
position: it is usegul to avoid mechanical stress
C.Le.
during the opening.
Attention: This parameter is available only for up-
and-over door**
DESCRIPTION
" parameter (only sliding
must be 0
=0)
DEFAULT MIN
1 0
0 0
0 0
1 0
0 0
0 0
50 0
0 0
1 0
0 0
0 0
0 0
time
0 0
0 0
EN
MAX UNIT
1
2
3
3
1
1
100 %
900 s
5
2
20 s
2
900 s
30 %
