Press the (MENU) button for more than 1
second (LONG PRESS) to save the modified
value. The value stops flashing. Alternatively,
press the (MENU) button QUICKLY to
quit the function without saving.

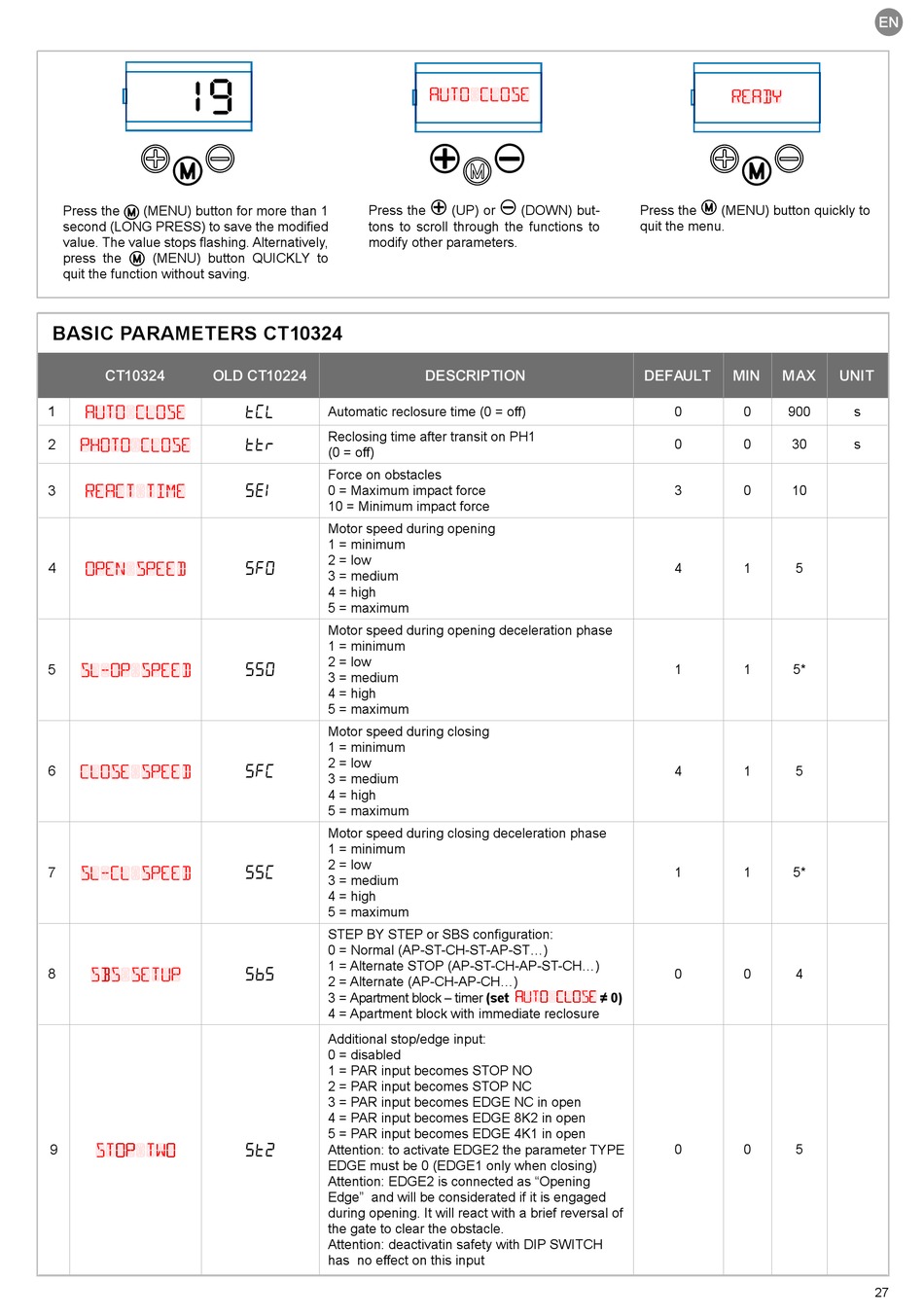

BASIC PARAMETERS CT10324
CT10324 OLD CT10224
1
2
3
4
5
6
7
8
9
Press the
tons to scroll through the functions to
modify other parameters.
TCL
Automatic reclosure time (0 = off)
Reclosing time after transit on PH1
ttr
(0 = off)
Force on obstacles
SEI
0 = Maximum impact force
10 = Minimum impact force
Motor speed during opening
1 = minimum
2 = low
SFO
3 = medium
4 = high
5 = maximum
Motor speed during opening deceleration phase
1 = minimum
2 = low
SSO
3 = medium
4 = high
5 = maximum
Motor speed during closing
1 = minimum
2 = low
SFC
3 = medium
4 = high
5 = maximum
Motor speed during closing deceleration phase
1 = minimum
2 = low
SSC
3 = medium
4 = high
5 = maximum
STEP BY STEP or SBS configuration:
0 = Normal (AP-ST-CH-ST-AP-ST...)
1 = Alternate STOP (AP-ST-CH-AP-ST-CH...)
SBS
2 = Alternate (AP-CH-AP-CH...)
3 = Apartment block – timer (set
4 = Apartment block with immediate reclosure
Additional stop/edge input:
0 = disabled
1 = PAR input becomes STOP NO
2 = PAR input becomes STOP NC
3 = PAR input becomes EDGE NC in open
4 = PAR input becomes EDGE 8K2 in open
5 = PAR input becomes EDGE 4K1 in open
ST2
Attention: to activate EDGE2 the parameter TYPE
EDGE must be 0 (EDGE1 only when closing)
Attention: EDGE2 is connected as "Opening
Edge" and will be considerated if it is engaged
during opening. It will react with a brief reversal of
the gate to clear the obstacle.
Attention: deactivatin safety with DIP SWITCH
has no effect on this input
(UP) or (DOWN) but-
DESCRIPTION
Press the (MENU) button quickly to
quit the menu.
DEFAULT MIN
0 0
0 0
3 0
4 1
1 1
4 1
1 1
0 0
≠ 0)
0 0
EN
MAX UNIT
900 s
30 s
10
5
5*
5
5*
4
5
27
