EN
2 - INTRODUCING THE PRODUCT
2.1 - Description of the control unit
The CT10324 control unit is the most modern, efficient system for
the control of Key Automation motors for the electric opening and
closure of sliding gates and up-and-over doors.
All other, improper, use of the control unit is forbidden.
1
M +
M -
V+
23
ENC
NEG
12

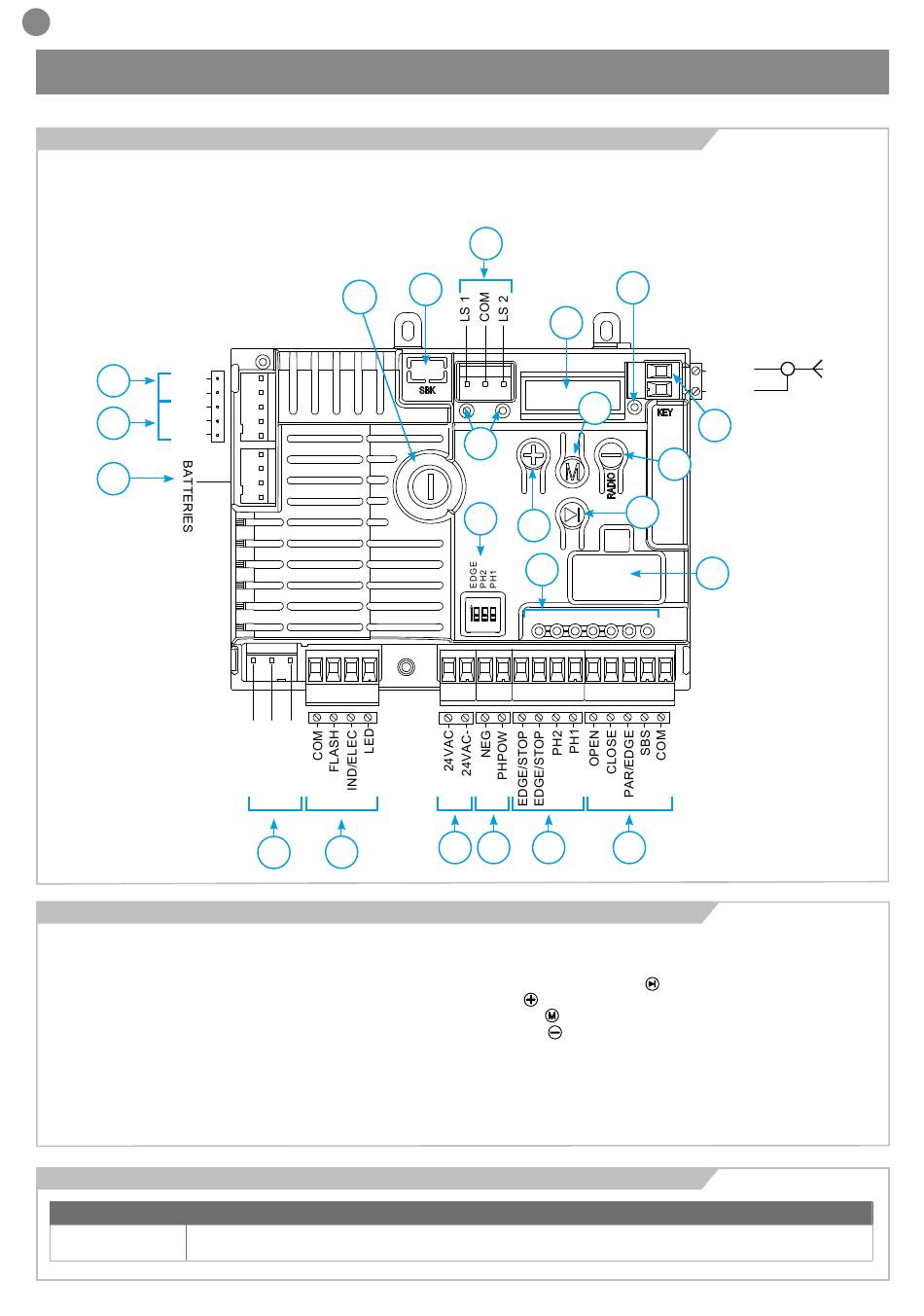

2.2 - Description of the connections
1- Motor power supply (M+ and M-)
2- Transformer power supply connector
3- Connection of flash light, courtesy light, gate open indicator
light/electic lock
4- 24 Vac connector for control and safety devices
5- 24 Vdc unregolated for safety device (photocell and radio edge)
6- Safety input connectior for STOP or edge and photocell
7- Connector for control devices
8- EDGE/STOP, PH2, PH1 safety red LED; OPEN, CLOSE, PAR,
SBS input green LED
9- Safety override dip switch
10- Limit switch connector
11- Limit switch red LED indicators
2.3 - Models and technical characteristics
CODE DESCRIPTION
CT10324 24V control unit for sliding gates or up-and-over doors
20
21
13
POWER
SUPPLY
2 3
The CT10324 has a display with 5 digit and 14 segments that allows
easy programming and constant monitoring of the input status; the
menu structure also allows easy setting of working times and ope-
rating modes.
10
19
14
17
11
9
16
8
ON
STOP PH2 PH1 OPEN CLOSE PAR
4 5 6 7
12- Connector for battery charger KBP/KBPN
13- Fuse 1.6 AT time lag
14- Function display 5 digit 14 segment
15- STEPPING SBS button ( )
16- UP ( ) button
17- MENU ( ) button
18- DOWN ( ) button
19- KEY LED indicator
20- Antenna
21- SBK: predisposition for energy saving module when control
unit is not active (optional)
22- Connector for KUBE interface / PowerBus (optional)
23- Input for encoder (only for up-and-over-door)
ANT
SHIELD
20
18
15
22
SBS
