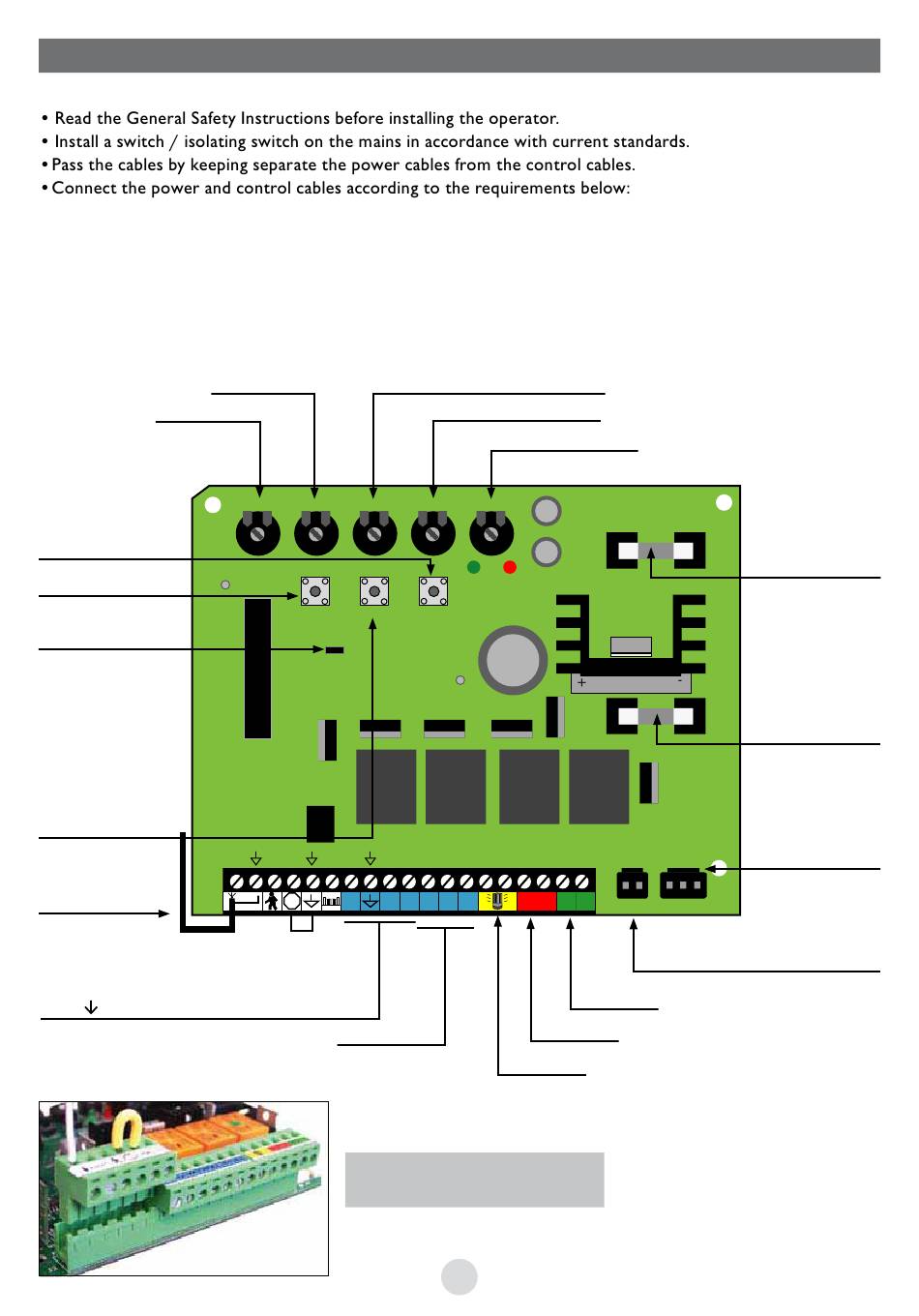

8. CONTROL DEVICE (electronic board)
Connection and commissioning of the unit
The STOP button or switch must be equipped with a manual release. Shunt the button's terminals on the
board.
Make sure all the inputs on the terminal block are wired correctly and in proper working condition.
Pause time
Motor force
Auto-memorisation
button P2/RADIO
RESET button
Jumper JP1
Removed: remote
control buttons
A or B usable
In place: remote
control buttons C
or D usable
Auto-memorisation
button P1 /SET
Radio antenna
PHO- -VA-TXF
Photocells
Reaction time to the obstacle
VR1
VR2
VR3
RESET
P1/SFT
JP1
ANT
PED STP
STR
PHO
VA
TXF
PHO
VA TXF EL S1 S2
STOP
ANT
EL-S1-S2
Lighting module
To facilitate the connection the
terminal boards are removable.
Motor lag at closing
Obstacle detection
VR4
VR5
LD1
LD2
P2/RADIO
EXT.LAMP
EL.LOCK
LAMP
MOT1
MOT2
MOT 2 MOT 1
Motor 1
Motor 2
Beacon
14GB
WEAT V2 N - V1
«accessories»
battery pack
BAT
12V
transformer
+
-
Battery pack option
WEATBT B2
Fuse 3 A
10A fuse,
option
Backup
